LRD14 - Schneider Electric TeSys Deca Thermal Overload Relay 7-10A 3-Pole Class 10A Screw Mount

LRD14

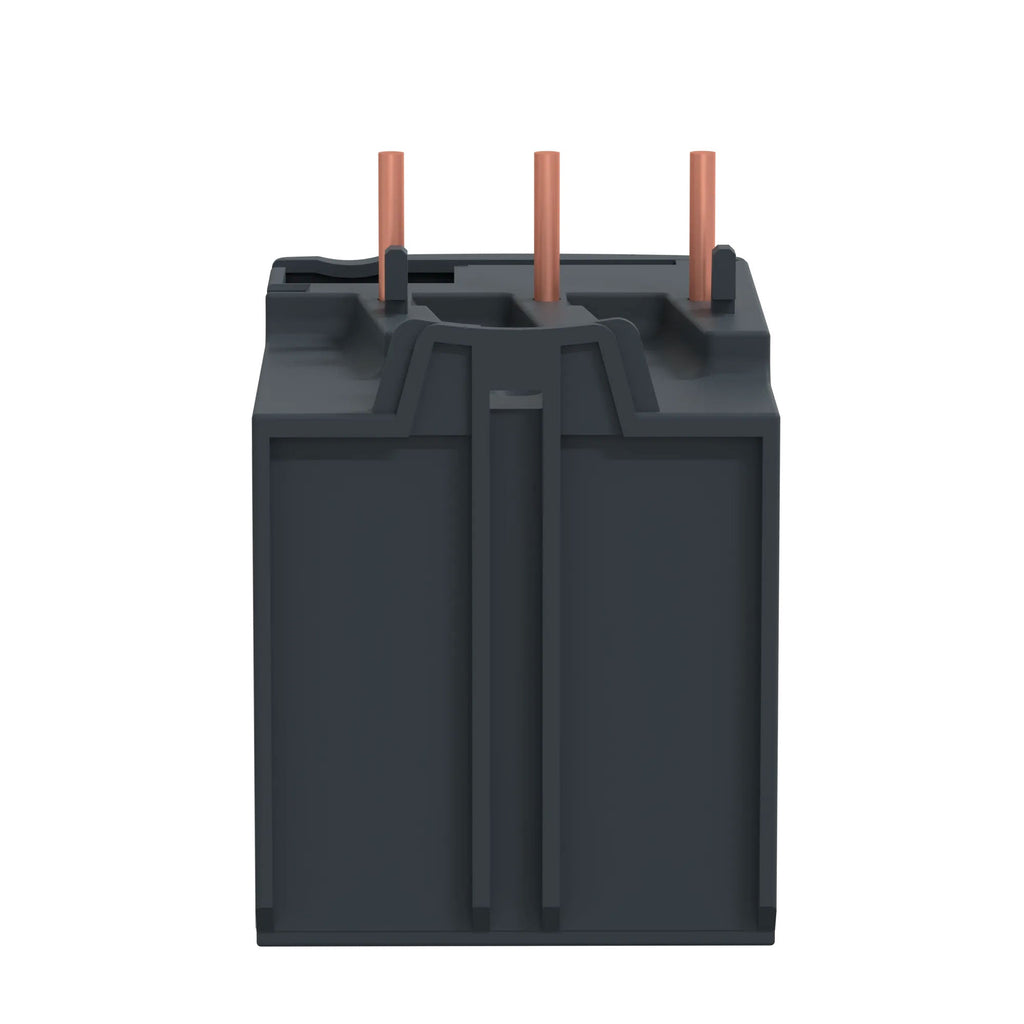

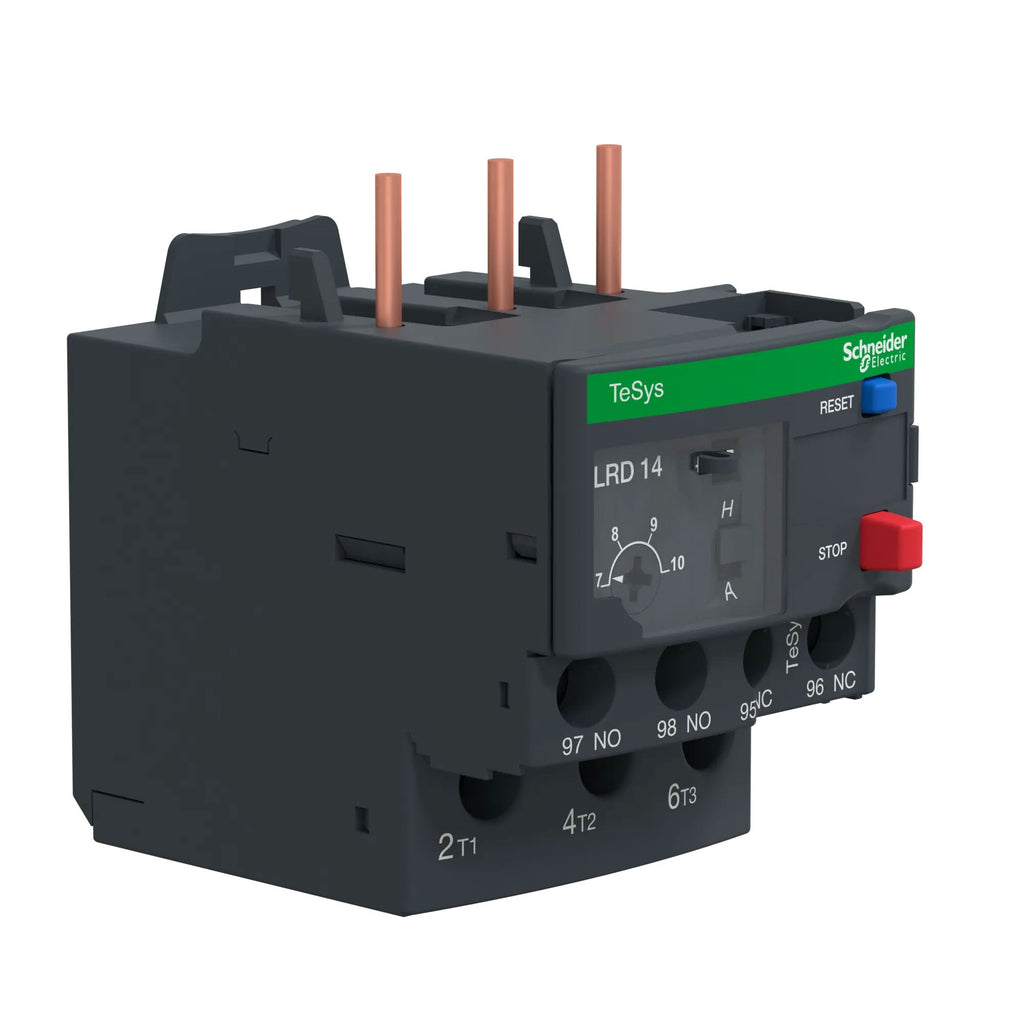

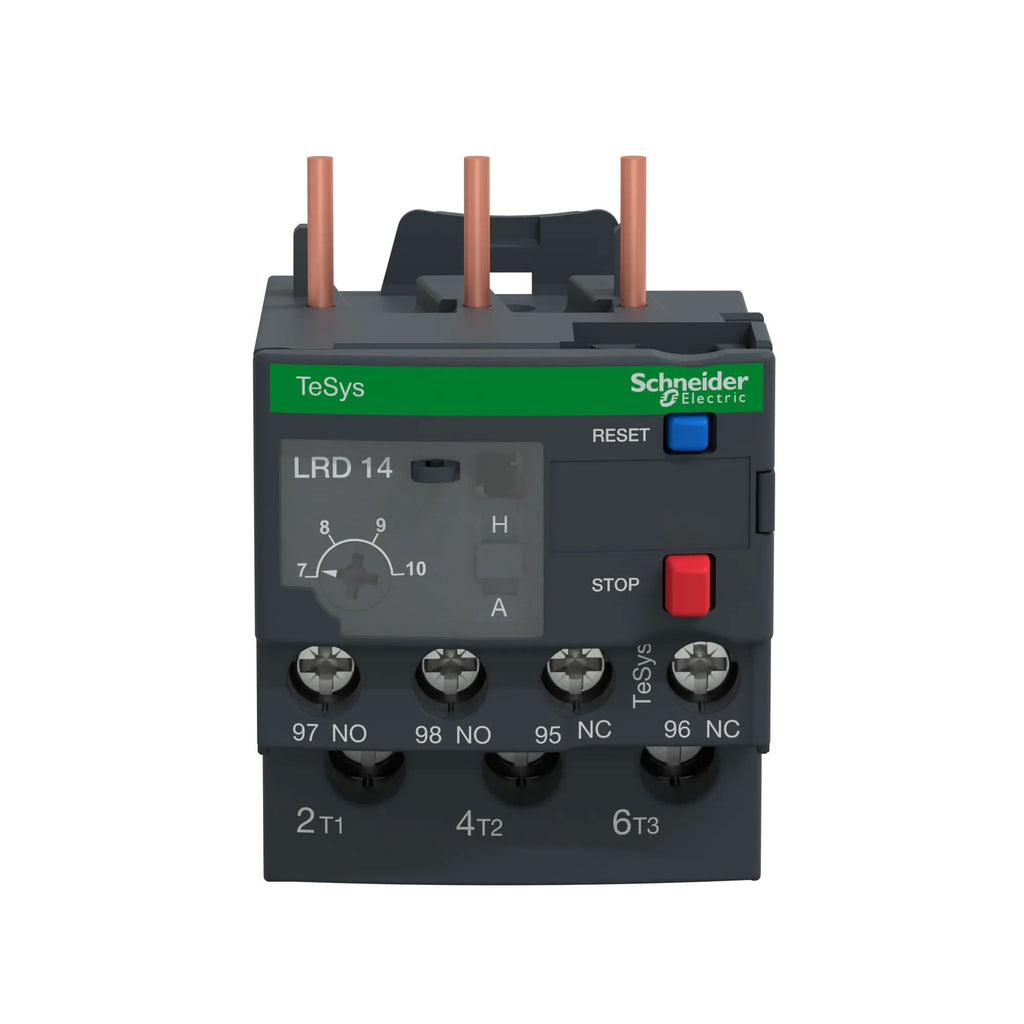

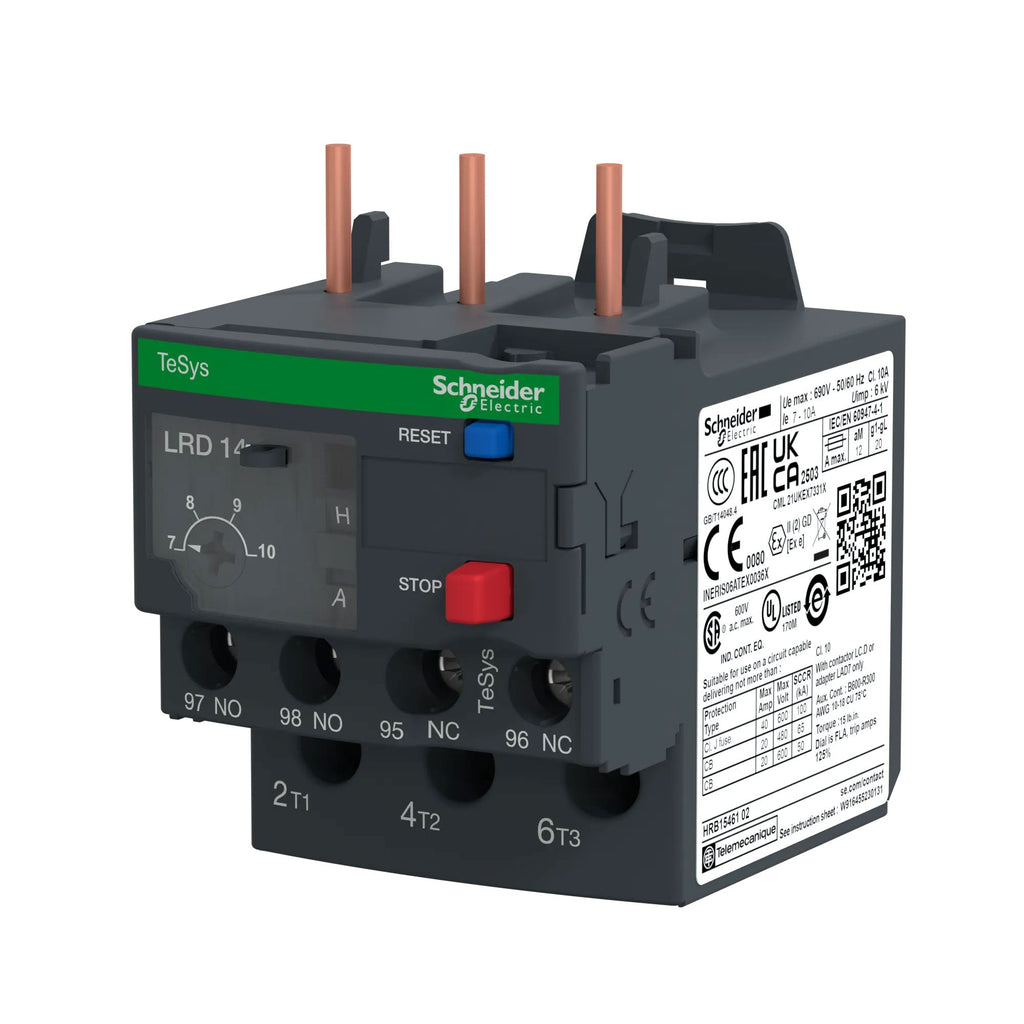

LRD14 is a Schneider Electric TeSys Deca thermal overload relay designed for motor protection with an adjustable current range of 7 to 10 amps.This 3-pole overload relay features Class 10 tripping, phase loss sensitivity, and ambient compensation. It mounts directly on TeSys LC1D contactors or can be mounted on a plate or rail with accessories. The relay supports manual or automatic reset and uses screw terminals for easy installation. It is certified to IEC 60947-4-1, UL 508, CSA, CE, and RoHS standards.

Key Specifications
• Amperage Range: 7 to 10 Amps adjustable
• Voltage Rating: Up to 690 VAC
• Poles: 3-pole
• Mounting Type: Direct on TeSys LC1D contactors, plate, or rail mount
• Interrupt Rating: Class 10A trip (trips within 10 seconds)
• Trip Unit: Thermal bimetallic with single-phase sensitivity
• Reset: Manual or automatic reset selectable
• Terminals: Screw clamp type
• Certifications: UL 508, CSA C22.2 No. 14, CE, RoHS compliant
• Phase Loss Protection: Yes
• Ambient Compensated: Yes

At Essential Parts

Specifications

• Part Number: LRD14
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 10
• Amperage Minimum : 7

Product Data

• UPC : 785901206774
• GTIN : 03389110346817
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
• Weight : 0.313
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
