LRD12L6 - Schneider Electric TeSys Deca Thermal Overload Relay 5.5-8A Class 20 Motor Protection

LRD12L6

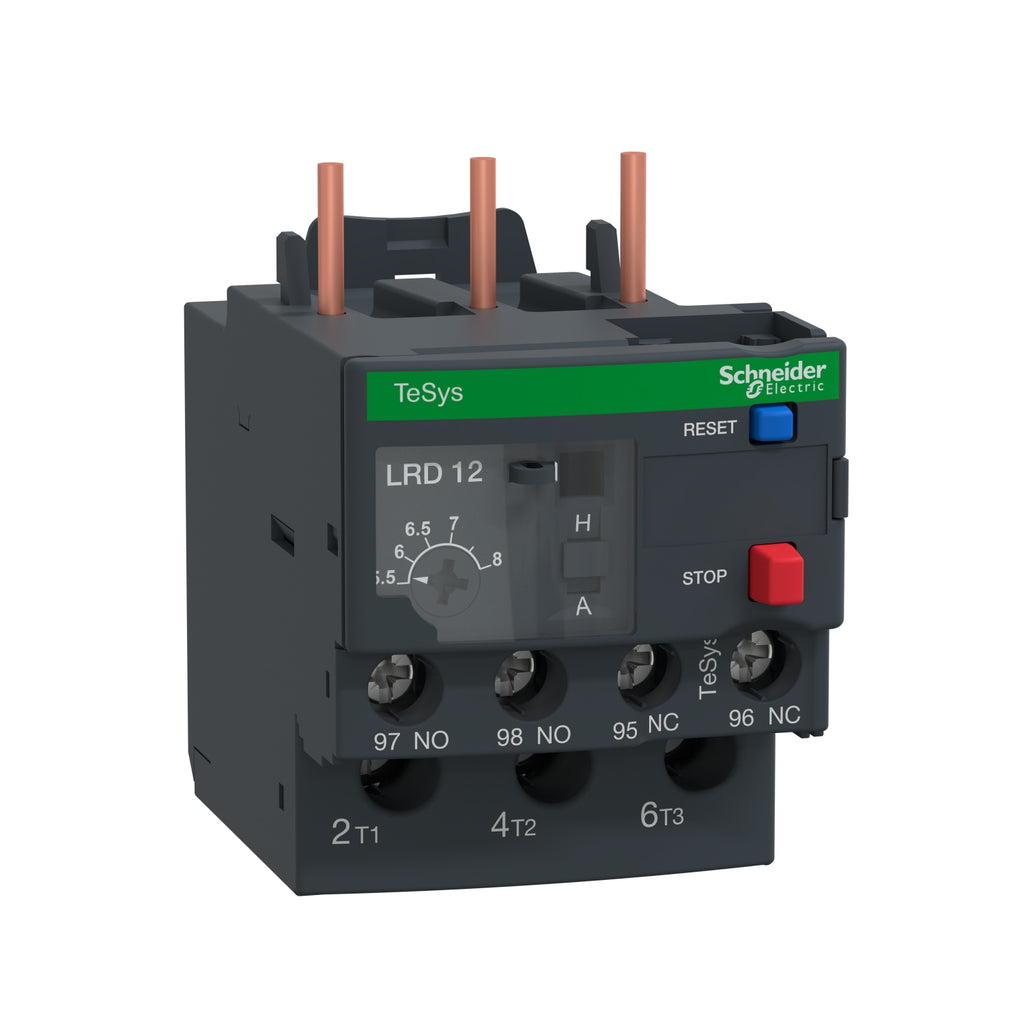

This relay provides reliable thermal motor overload protection compatible with TeSys contactors such as LC1D09, LC1D12, LC1D18 to LC1D38, and LC1D25. It operates on AC and DC networks up to 690 V AC at frequencies from 0 to 400 Hz. The device features red push-button stop and blue push-button reset controls, with temperature compensation for ambient conditions from -20 to 60 ¡C. It uses screw clamp terminals for control circuits and ring lug terminals for power circuits, with rated insulation voltage up to 600 V and impulse withstand voltage of 6 kV. The relay is designed to trip at 130% of the set current on phase failure and is suitable for mounting under contactors or with specific accessories for plate or rail mounting.

• Current adjustment range: 5.5 to 8 A
• Trip class: 20
• Rated operational voltage: 690 V AC, 0-400 Hz
• Rated insulation voltage: 600 V
• Impulse withstand voltage: 6 kV
• Control circuit: screw clamp terminals (1 to 2.5 mm_)
(more...)


Specifications

• Part Number: LRD12L6
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)



Product Data

• Country of Origin : Thailand
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 3.0 in (76 mm) (Height x Width x Depth)
• Weight : 0.318
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
