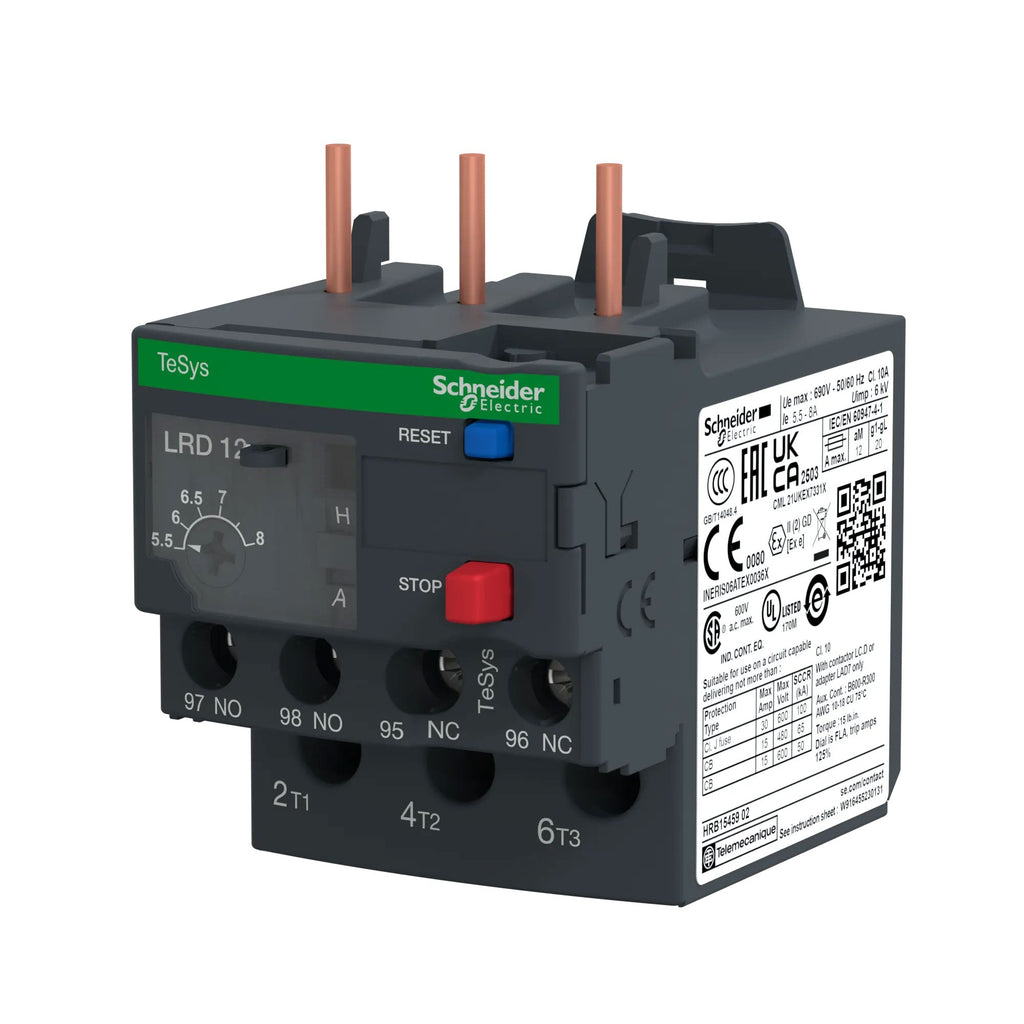

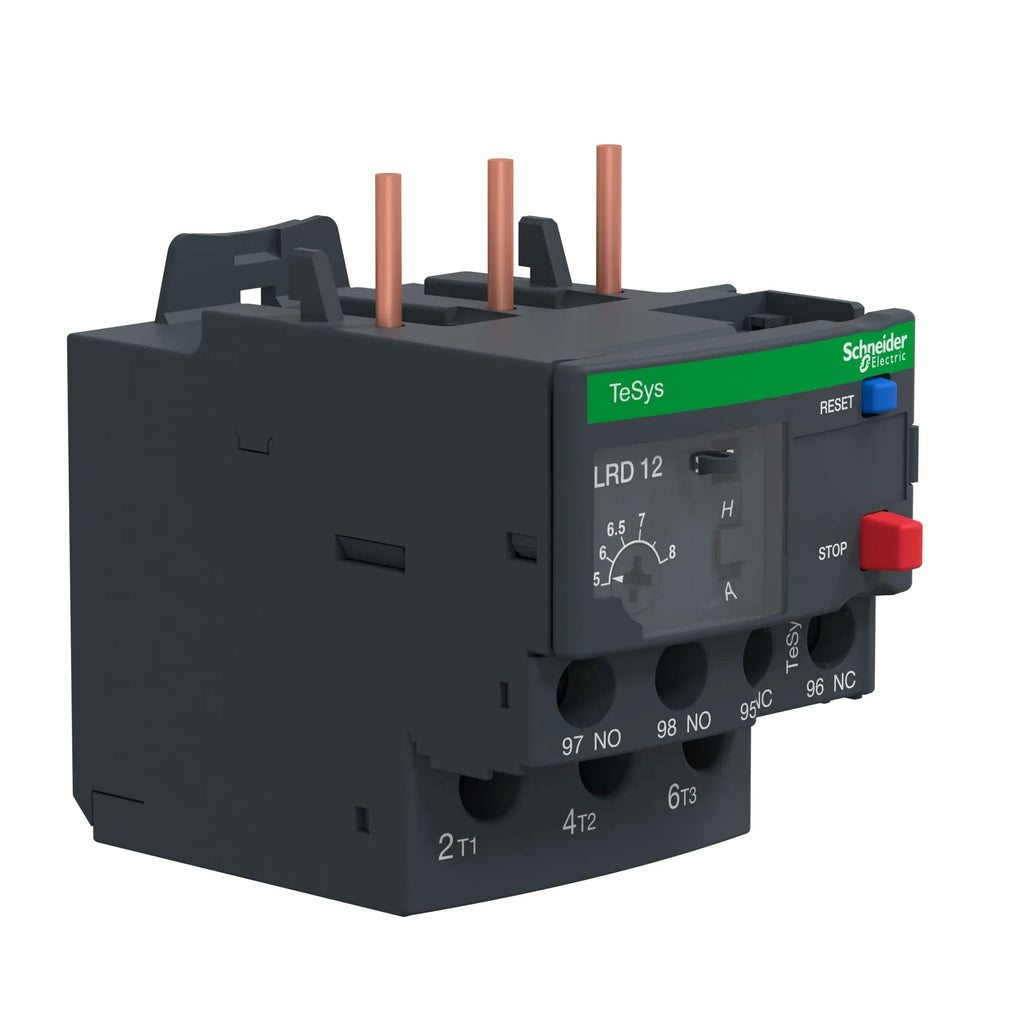

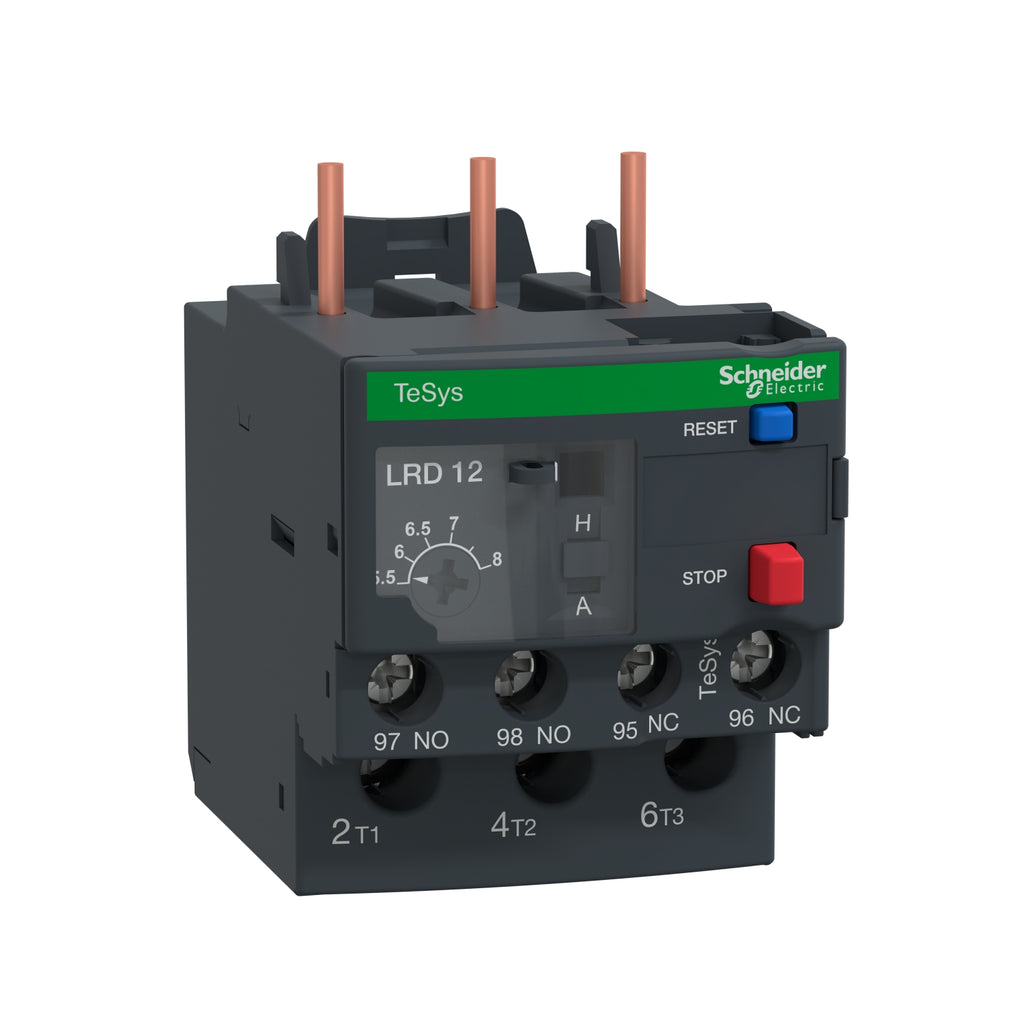

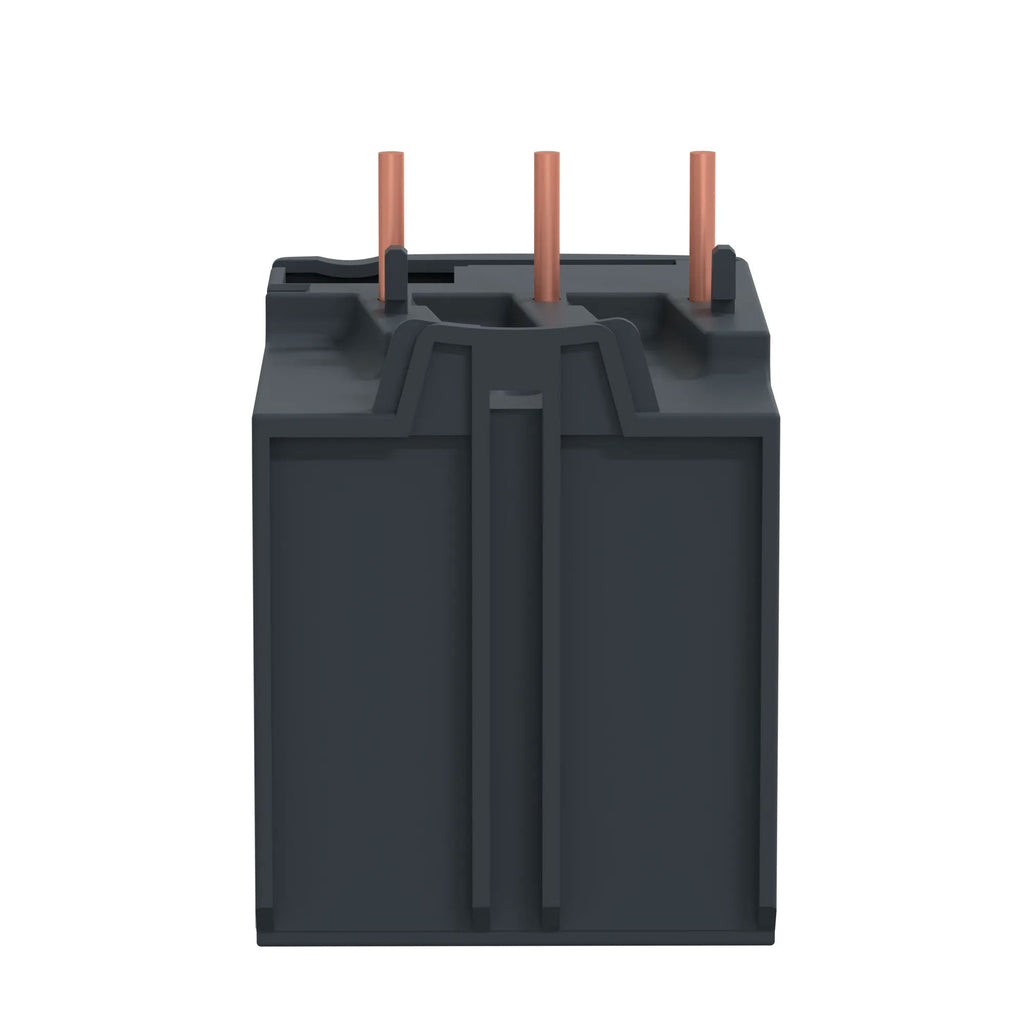

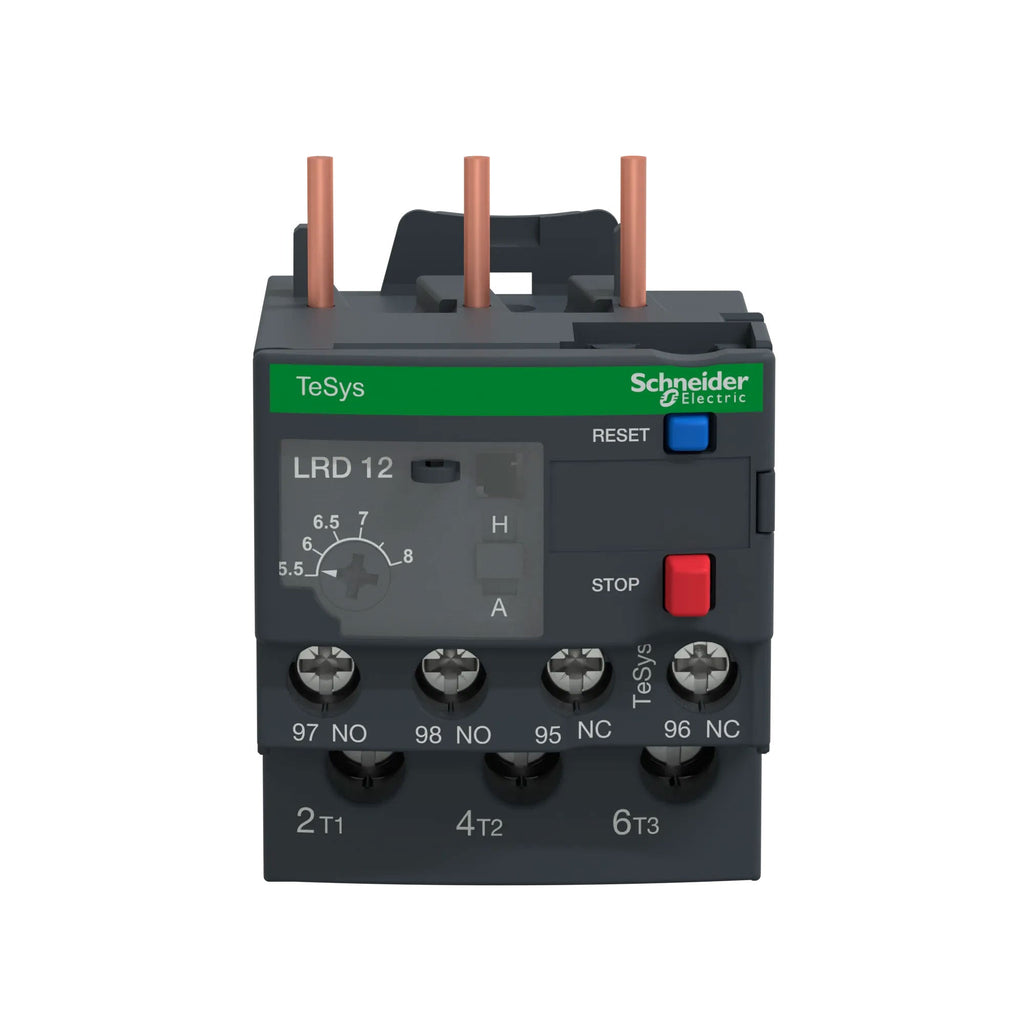

LRD12 - Schneider Electric Telemecanique Thermal Overload Relay, 5.5-8A, 600V, 3 Pole, Class 10, Direct Mount, Phase Loss Sensitivity, Manual/Auto Reset, Screw Terminals

LRD12

This 3-pole overload relay offers adjustable thermal protection from 5.5 to 8 amps, features Class 10 trip characteristics for fast response, and includes phase loss sensitivity to safeguard motors against unbalanced conditions. It supports both manual and automatic reset options, mounts directly to compatible TeSys D contactors, and uses screw terminals for secure connections. The LRD12 is ambient compensated, includes a test trip button, and is built for easy installation and operation.

Key Specifications
• Part Number: LRD12
• Manufacturer: Schneider Electric / Telemecanique
• Amperage Range: 5.5 to 8 A
• Voltage Rating: 600V IEC
• Poles: 3
• Mounting Type: Direct mount (LC1D09 to LC1D32 contactors)
• Interrupt Rating: Not specified
• Series/Frame: TeSys Deca
• Trip Unit: Class 10, bimetallic, ambient compensated
• Reset: Manual or automatic
• Terminals: Screw clamp
• Phase Loss S(more...)


  Specifications

  • Part Number: LRD12
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Aux Contacts : 1NO/1NC
  • Amperage Maximum : 8
  • Amperage Minimum : 5.5



  Product Data

  • UPC : 785901206767
  • GTIN : 03389110346800
  • Country of Origin : France
  • Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
  • Weight : 0.315
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
