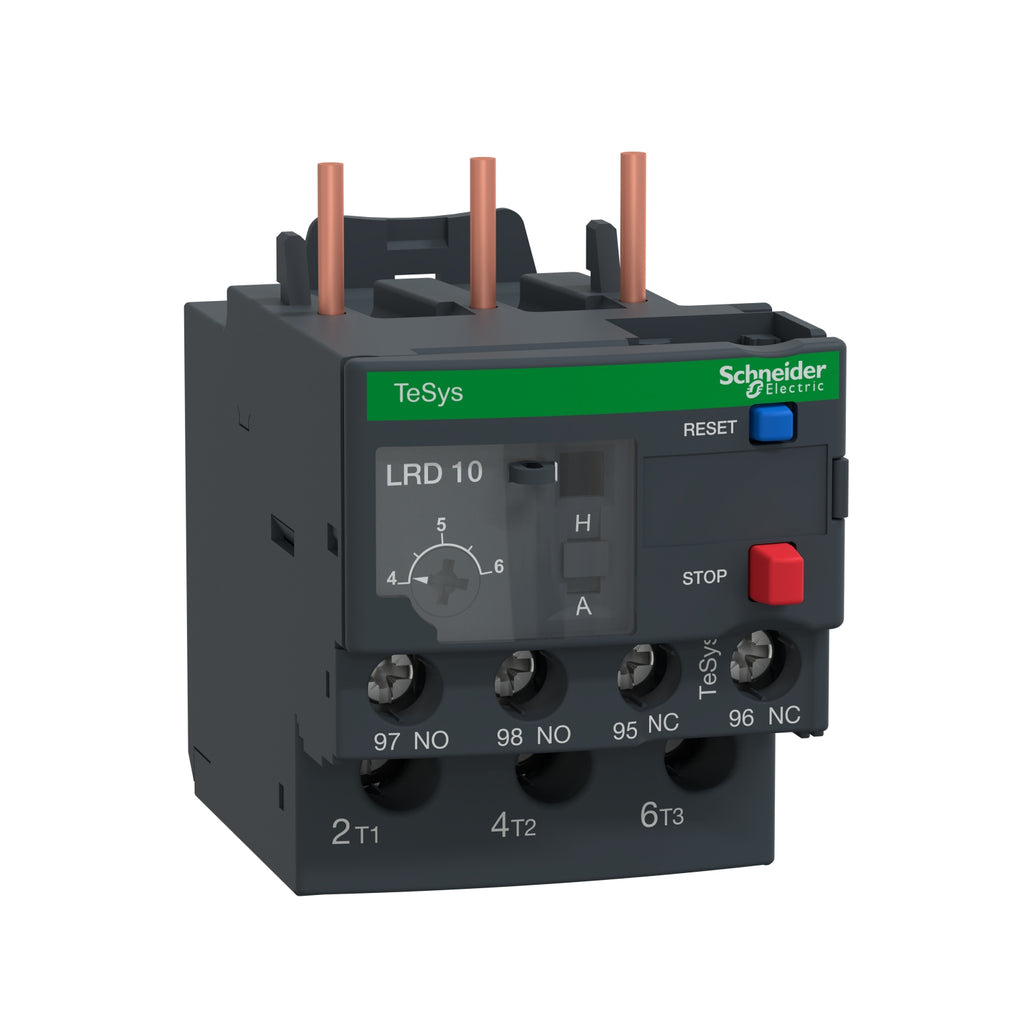

LRD10L - Schneider Electric 4-6A 3-Pole Thermal Overload Relay, Class 20, DIN Rail Mount

LRD10L

This 3-pole relay provides Class 20 tripping characteristic and phase loss sensitivity to protect motors against overloads, phase failure, long starting times, and prolonged stalling. It features manual or automatic reset options, clamp/threaded terminals, and mounts easily on DIN rails or surfaces. The relay conforms to IEC 60947-4-1 standards and offers protection for motors up to 2.2 kW at 400 V with a temperature rating from -20 to 60 degrees Celsius. It includes 1 normally open and 1 normally closed auxiliary contact for signaling and control.

Key Specifications
• Amperage Range: 4 to 6 A
• Number of Poles: 3
• Trip Class: 20
• Mounting Type: DIN Rail/Surface
• Terminal Type: Clamp/Threaded
• Voltage Rating: Up to 690 V insulation voltage
• Phase Loss Sensitivity: Yes, single phase sensitivity
• Reset Type: Manual or Automatic
• Auxiliary Contacts: 1 Normally Open (N.O.), 1 Normally Closed (N.C.)
• Operating Temperature:(more...)


  Specifications

  • Part Number: LRD10L
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)



  Product Data

  • UPC : 60648060957
  • GTIN : 03606480609572
  • Country of Origin : Thailand
  • Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 3.0 in (76 mm) (Height x Width x Depth)
  • Weight : 0.379
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
