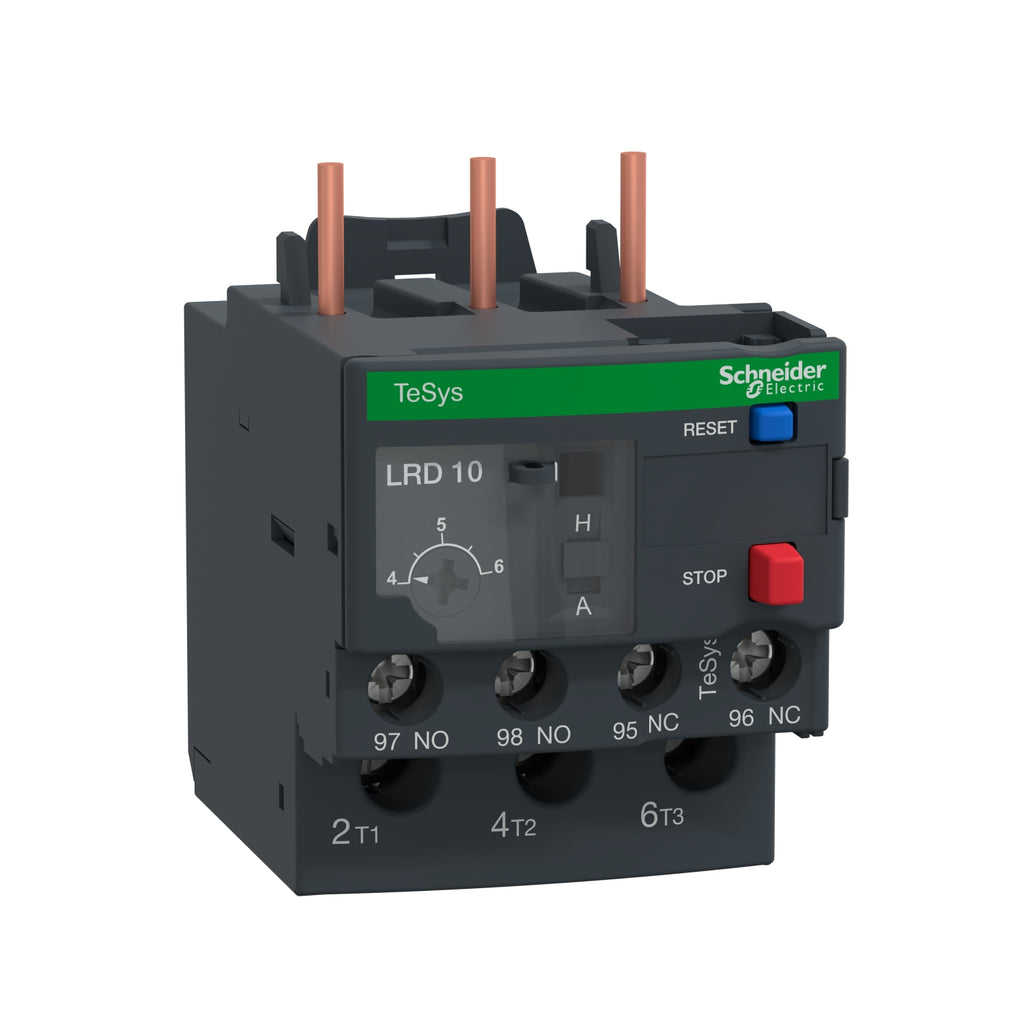

LRD10C - Telemecanique Schneider Electric 3-Pole Thermal Overload Relay 4-6A Class 10A

LRD10C

LRD10C is a 3-pole thermal overload relay from Telemecanique Schneider Electric designed for motor protection with an adjustable current range of 4 to 6 amps and Class 10 trip rating.

This thermal overload relay provides reliable protection against motor overloads and phase loss with ambient compensated bimetallic technology. It features screw clamp terminals for easy installation and can be directly mounted to TeSys D contactors (LC1D09 to LC1D32). The relay supports both manual and automatic reset options, selectable via a dial, and includes single-phase sensitivity for enhanced motor protection. It is suitable for AC circuits with a voltage rating up to 600V and is CE certified.

• Amperage range: 4 to 6 A adjustable
• Poles: 3-pole
• Trip class: 10A (trips within 10 seconds)
• Mounting: Direct mount to TeSys D contactors
• Reset: Manual or automatic reset selectable
• Terminals: Screw clamp type
• Phase loss sensitivity: Yes
• Voltage rating: Up to 600V AC
• Certification: CE

At Essential Parts, we offer fast shipping

Specifications

• Part Number: LRD10C
• Manufacturer : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)
• Relay Style : Thermal
• Amperage Maximum : 6
• Amperage Minimum : 4

Product Data

• Weight : 1
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
