LRD08C - Telemecanique 3-Pole Thermal Overload Relay 2.5-4A Class 10

Save $96.23
SKU: LRD08C-New
Condition: New
Price:
$0.00 $96.23
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

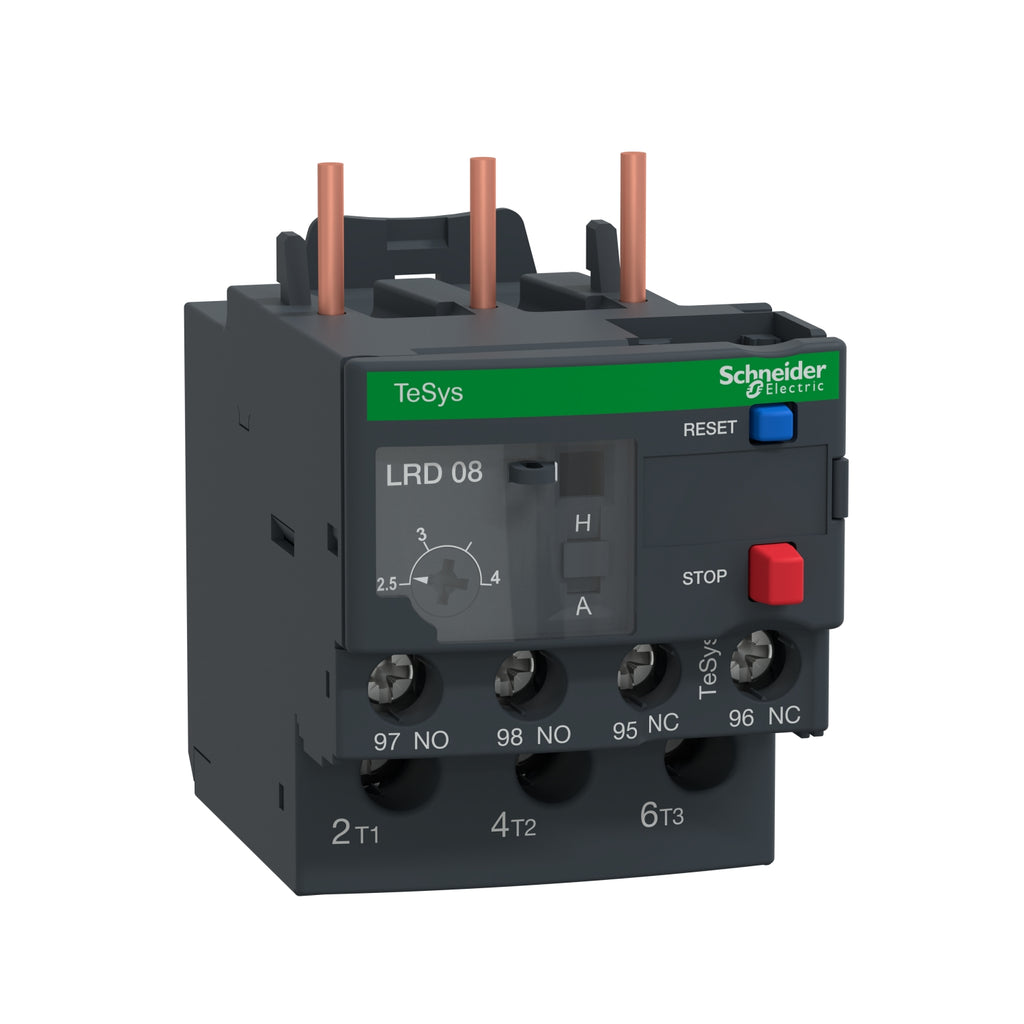

LRD08C - Telemecanique Overload Relay Amp Min 2.5A - Amp Max 4A - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LRD08C - Telemecanique Overload Relay Amp Min 2.5A - Amp Max 4A - Essential Electric Supply

Description

LRD08C


LRD08C is a 3-pole thermal overload relay from Telemecanique designed for motor protection with an adjustable current range of 2.5 to 4 amps and Class 10 trip rating.

This thermal overload relay mounts directly to TeSys contactors LC1D09 through LC1D32 and provides phase loss sensitivity with manual or automatic reset options. It features screw terminals for secure wiring and is suitable for protecting 3-phase motors up to 1.5 kW at 400V. The relay is ambient compensated and includes a tamper-resistant window for full load current settings.

  • Amperage range: 2.5 to 4 A
  • Poles: 3
  • Trip class: 10 (trips within 10 seconds)
  • Phase loss sensitivity: Yes
  • Reset function: Manual or automatic reset
  • Mounting: Direct mount to TeSys LC1D09-LC1D32 contactors
  • Terminals: Screw type
  • Motor protection up to 1.5 kW at 400V
  • Rated insulation voltage: 600 V
  • Ambient compensated bimetallic design
  • Country of origin: France

At Essential Parts, we offer fast shipping, lowest price<(more...)

Specifications

  • Part Number: LRD08C
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Amperage Maximum : 4
  • Amperage Minimum : 2.5

Product Data

  • Weight : 1
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
