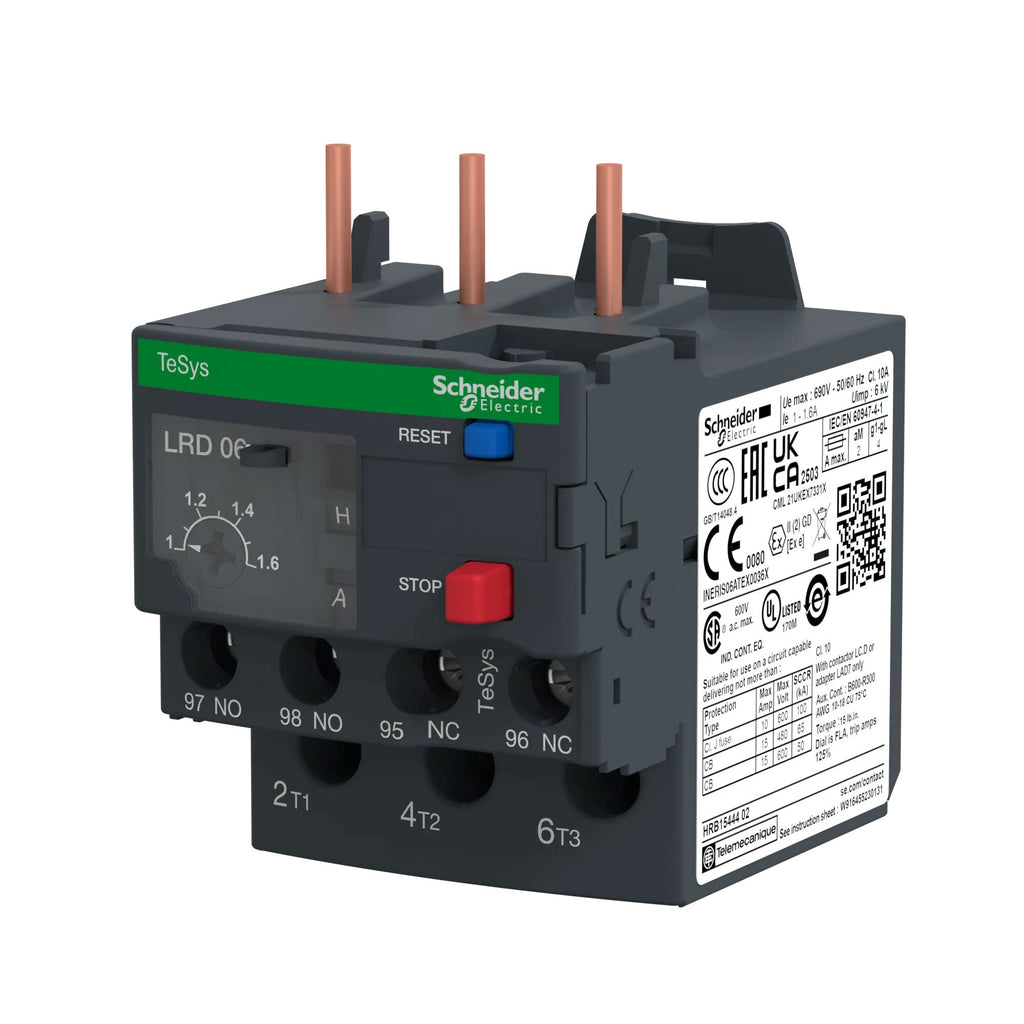

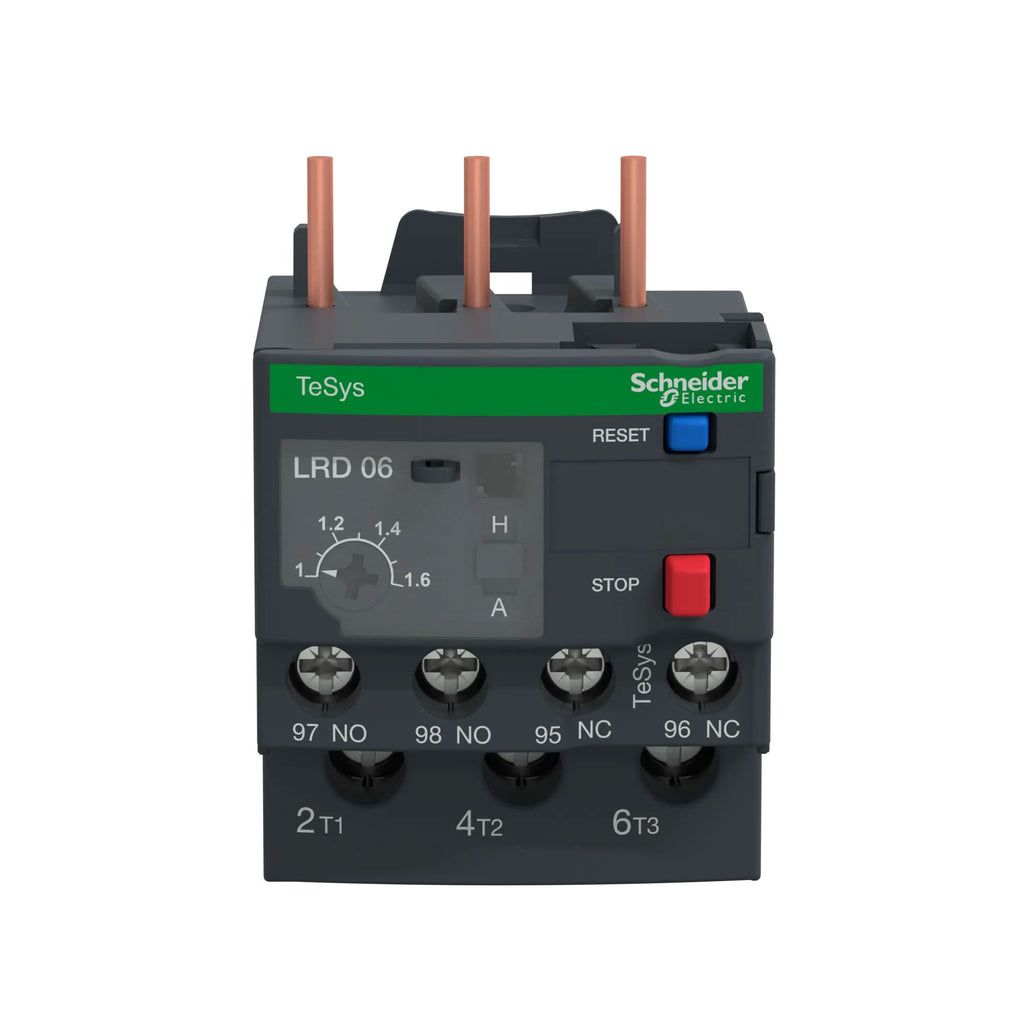

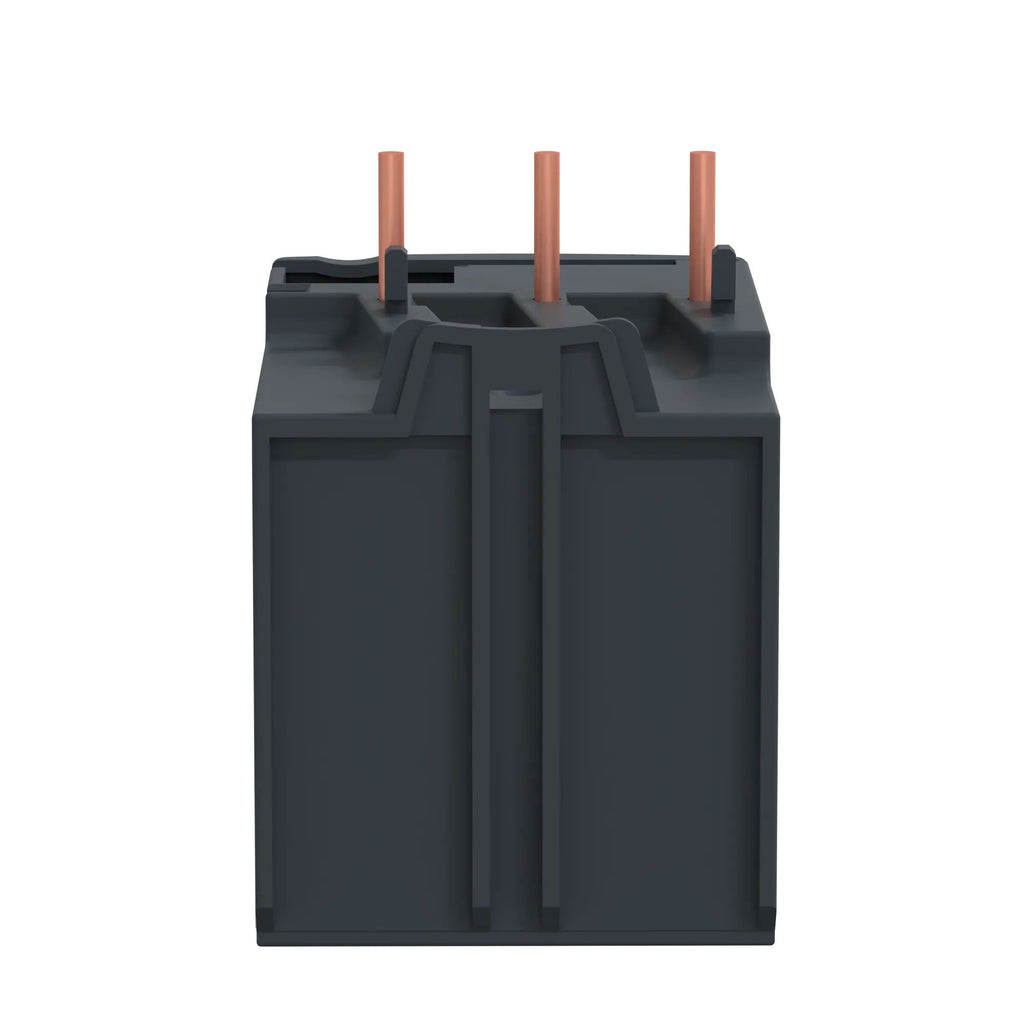

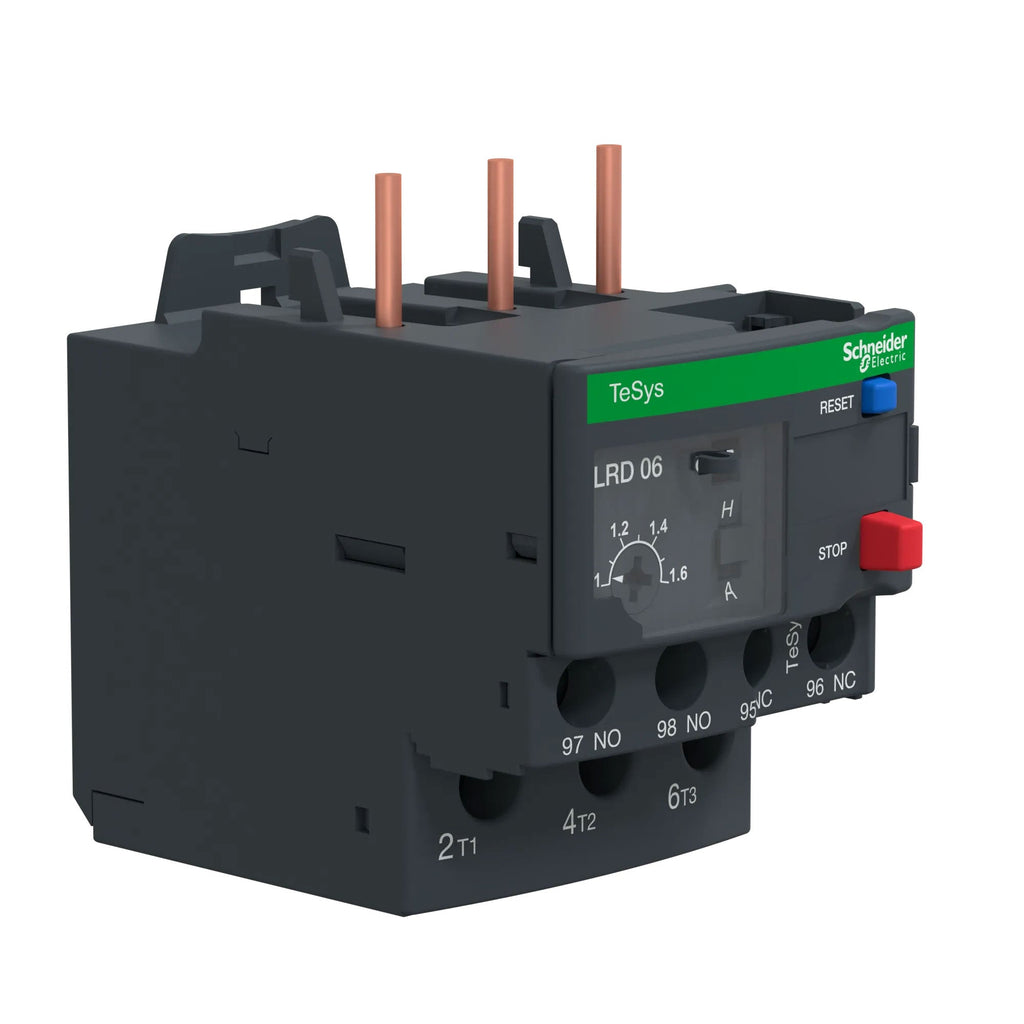

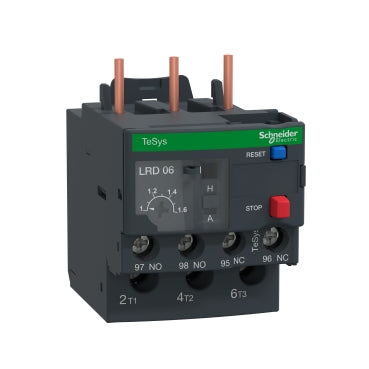

LRD06 - Schneider Electric TeSys Deca Thermal Overload Relay 1-1.6A 3-Pole Class 10A 690V Screw Clamp

LRD06

LRD06 is a Schneider Electric TeSys Deca thermal overload relay designed for motor protection with adjustable current settings from 1 to 1.6 amps.This 3-pole thermal overload relay features a tripping class 10A and is rated for up to 690V AC. It provides reliable protection against motor overloads and phase loss, with screw clamp terminals for easy installation. The relay includes manual reset and stop push-buttons and is compatible with LC1D contactors to form a complete motor starter. It is designed for use with 3-phase motors up to 0.55 kW at 400V and meets industry standards for safety and performance.

• Amperage range: 1 to 1.6 A adjustable
• Voltage rating: up to 690V AC
• Poles: 3-pole
• Tripping class: 10A
• Mounting type: screw clamp terminals
• Phase loss sensitivity included
• Compatible with LC1D contactors
• Manual reset and stop push-buttons
• Motor protection up to 0.55 kW at 400V
• Certifications: industry standard compliant
• Modern design with multi-standard screws
• Environmental: packaging made with recycled cardboard
&l(more...)


Specifications

• Part Number: LRD06
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 1.6
• Amperage Minimum : 1



Product Data

• UPC : 785901206736
• GTIN : 03389110346763
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
• Weight : 0.313
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
