LRD05C - Telemecanique Thermal Overload Relay 0.63-1A Class 10A 3 Pole Direct Mount

LRD05C

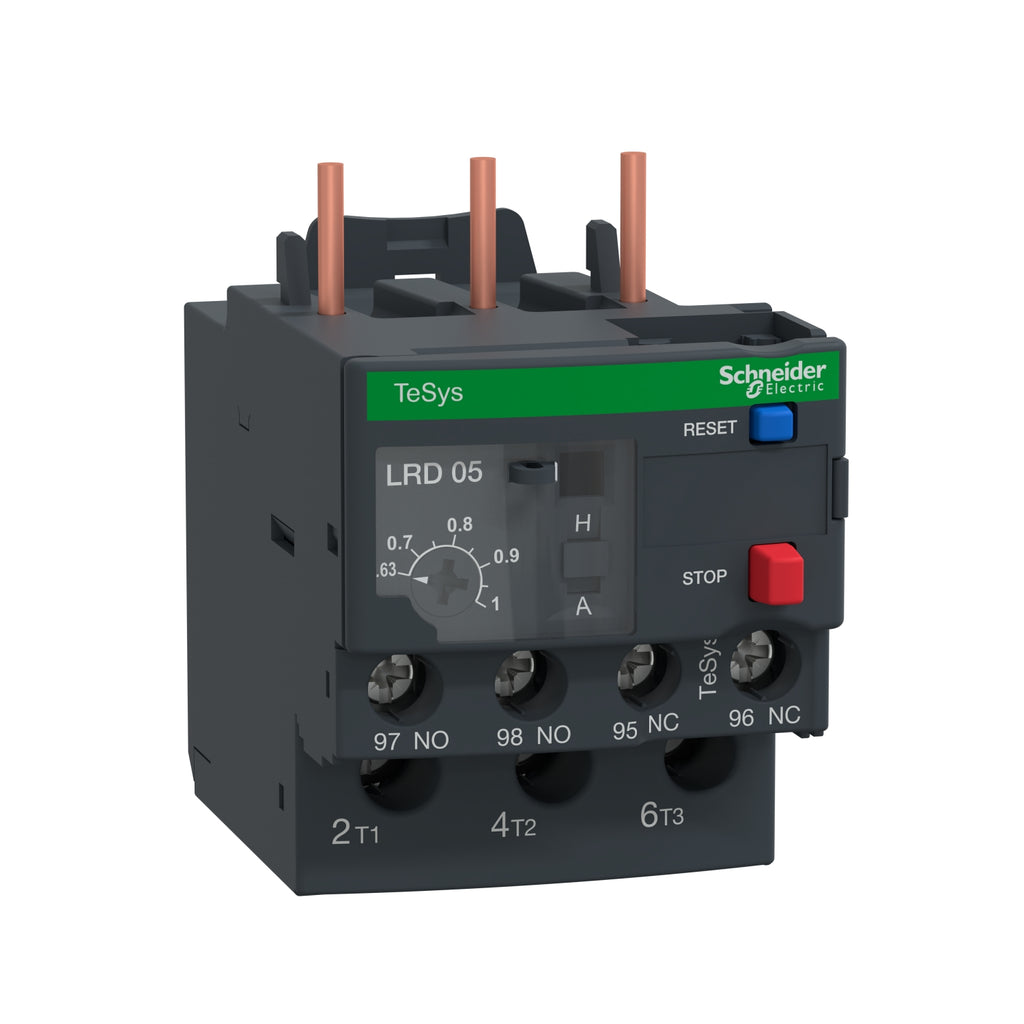

LRD05C is a Telemecanique thermal overload relay designed for motor protection with an adjustable current range of 0.63 to 1 ampere and Class 10 trip characteristic.

This relay provides reliable overload protection for AC motors with single-phase sensitivity and phase loss detection. It features a 3-pole bimetallic design suitable for direct mounting on compatible contactors. The device supports manual or automatic reset and includes isolated normally closed trip and normally open alarm contacts. It complies with IEC 60947 and VDE 0660 standards, has a rated insulation voltage of 690V, and an impulse withstand voltage of 6kV.

• Adjustable current range: 0.63 to 1 A
• Trip class: 10
• Poles: 3
• Mounting type: Direct mount on LC1D contactors
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Single-phase sensitivity with phase loss protection
• Manual or automatic reset function
• Isolated N.C. trip and N.O. alarm contacts
• Standards: IEC 60947, VDE 0660

At Essential Parts, we offer (more...)

Specifications

• Part Number: LRD05C
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)
• Relay Style : Thermal
• Amperage Maximum : 1
• Amperage Minimum : 0.6

Product Data

• Weight : 1
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
