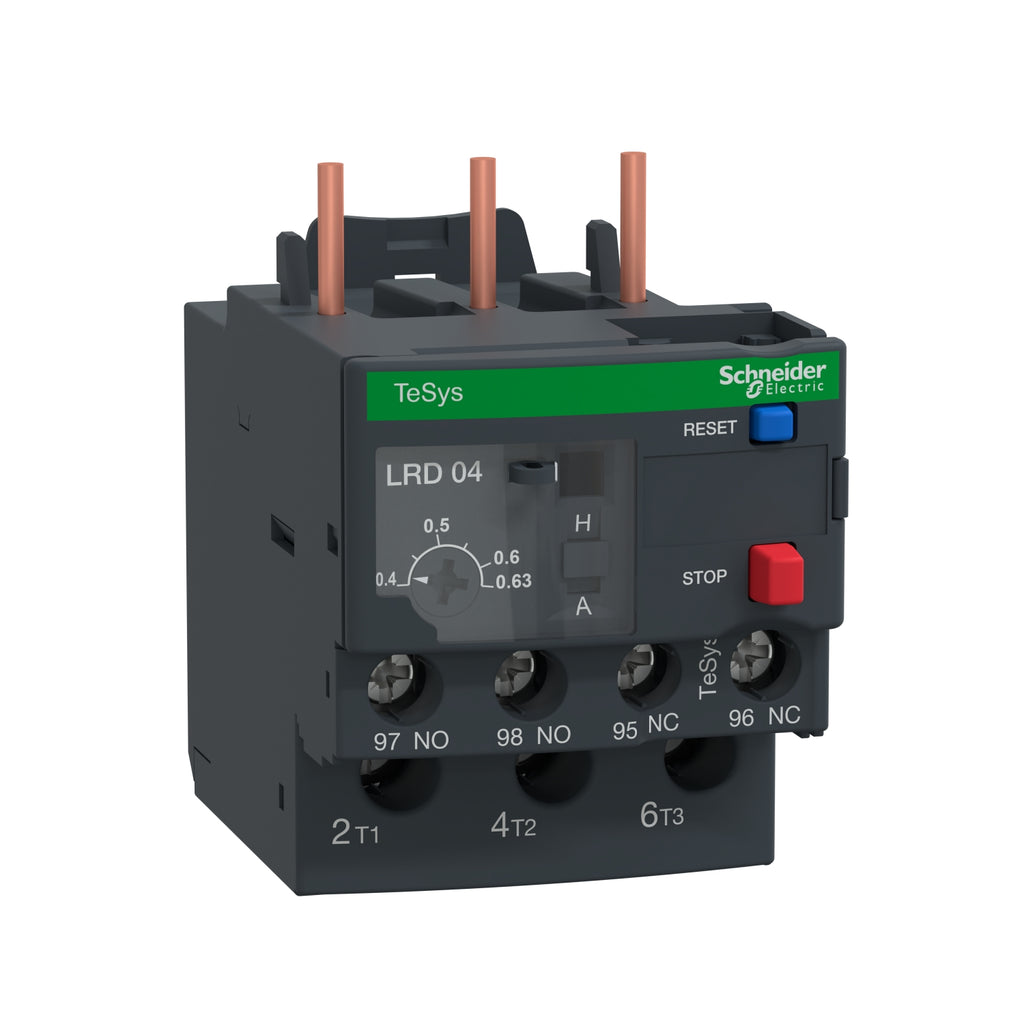

LRD04C - Telemecanique 0.4-0.63A Thermal Overload Relay 3-Pole Class 10A Direct Mount

LRD04C

LRD04C is a Telemecanique thermal overload relay designed for reliable motor protection in industrial applications. This 3-pole relay features an adjustable amperage range of 0.4 to 0.63A and is compatible with TeSys LC1D contactors for direct mounting. The relay provides Class 10A trip protection, phase loss sensitivity, and offers both manual and automatic reset options for flexible operation. It is built with screw terminals for secure connections and includes a visual trip indicator for easy troubleshooting. The LRD04C is engineered for durability and ease of installation, making it ideal for use in motor control circuits where precise overload protection is required. Its ambient compensated bimetallic design ensures accurate performance across a wide temperature range.

• Adjustable amperage range: 0.4 to 0.63A
• 3-pole configuration
• Class 10A trip protection
• Phase loss sensitivity
• Manual or automatic reset
• Direct mount on TeSys LC1D contactors
• Screw terminals
• Visual trip indicator
• Up to 690VAC voltage rating
• Ambient compensated bimetallic design

Specifications

• Part Number: LRD04C
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)
• Relay Style : Thermal
• Amperage Maximum : 0.63
• Amperage Minimum : 0.4



Product Data

• Weight : 1
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
