Product Info
- Manufacturer:Telemecanique
- Sub-Category:Overload Relay
Description

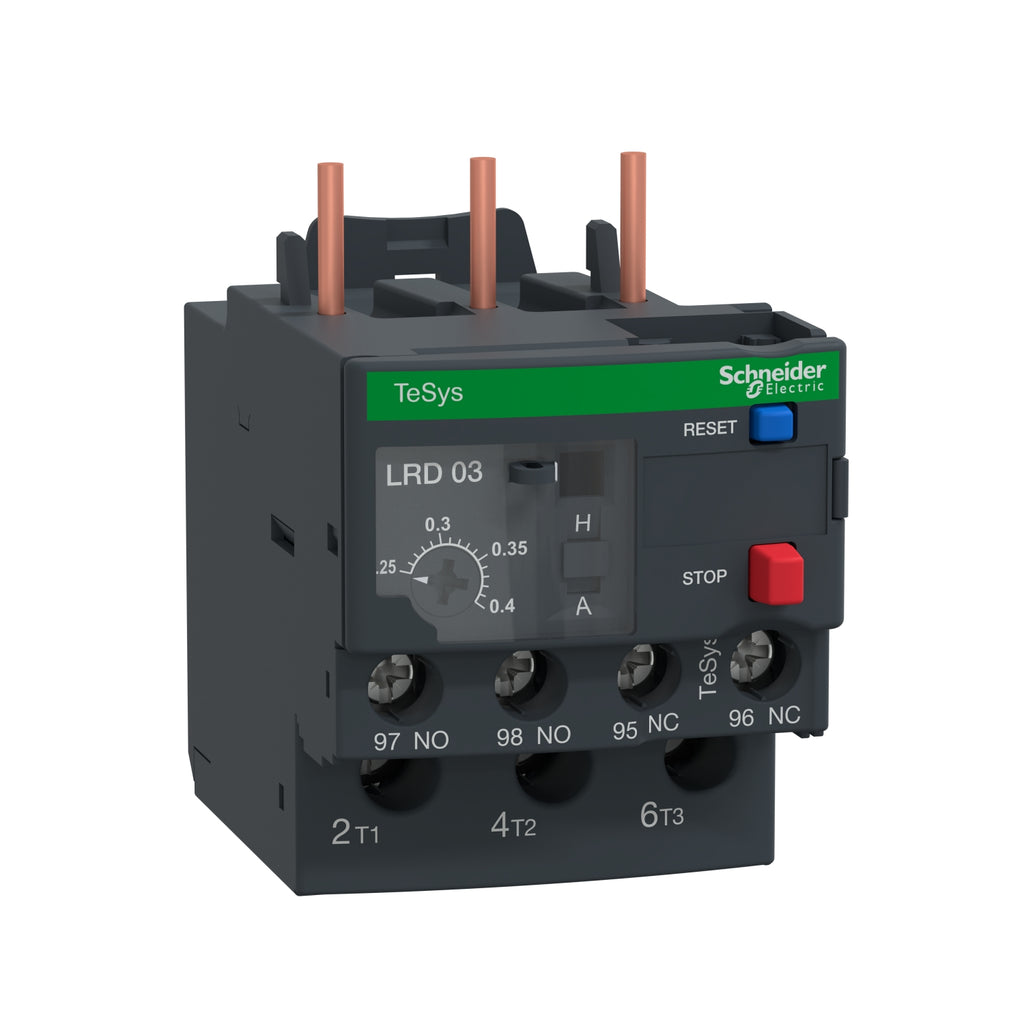

LRD03C
LRD03C is a Telemecanique TeSys thermal overload relay designed for 3-phase motor protection with an adjustable amperage range of 0.25 to 0.4 AMPS.
This direct-mount overload relay features Class 10 tripping protection, phase loss sensitivity, and bimetallic ambient compensation. The LRD03C mounts directly to TeSys D contactors (LC1D09 through LC1D32) and includes isolated auxiliary contacts with 1 normally open and 1 normally closed configuration. Manual or automatic reset modes are selectable via dial adjustment, and screw terminals provide secure installation.
- Amperage Range: 0.25 to 0.4 AMPS
- Voltage Rating: 690V
- Poles: 3-Phase
- Trip Class: 10 (trips in 10 seconds or less)
- Phase Loss Sensitivity: Yes
- Reset Options: Manual or Automatic
- Terminal Type: Screw
- Mounting: Direct mount to TeSys D contactors
- Auxiliary Contacts: 1NO/1NC isolated
- Motor Protection: 0.09kW at 400V
At Essential Parts, we offer fast shipping, lowest price(more...)
Specifications
- Part Number: LRD03C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : TeSys D
- Type : LRD
- Voltage : 600/690VAC
- Phase : 3
- Poles : 3
- Temp Rating : 28-158 °F (-20-60 °C)
- Relay Style : Thermal
- Amperage Maximum : 0.4
- Amperage Minimum : 0.25
Product Data
- Weight : 1
- Temp Rating : 28-158 °F (-20-60 °C)
- Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
