Product Info
- Manufacturer:Telemecanique
- Sub-Category:Overload Relay
Description
LRD02C

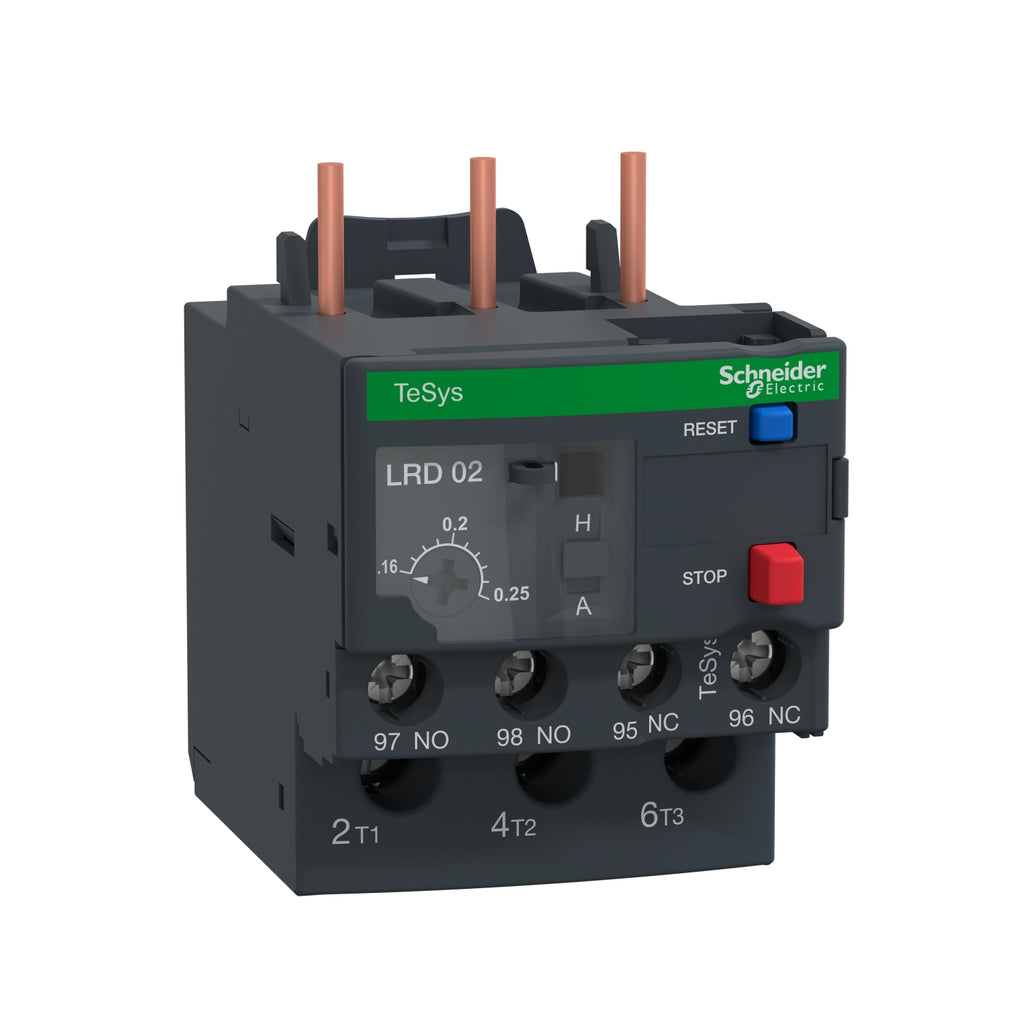

LRD02C is a Telemecanique thermal overload relay designed for motor protection with an adjustable current range of 0.16 to 0.25 amperes and Class 10 trip characteristics.
This relay provides reliable overload detection and protection for electric motors, featuring phase loss sensitivity, manual and automatic reset options, and screw terminal connections. It includes a visual trip indicator, a blue reset button, and a red stop button for manual control. The LRD02C is compatible with LC1D09-38 contactors and operates up to 690 V AC at frequencies from 0 to 400 Hz.
- Key Specifications
- Current range: 0.16-0.25 A adjustable
- Trip class: 10
- Rated operating voltage: up to 690 V AC
- Frequency: 0-400 Hz
- Control buttons: red stop, blue reset
- Phase loss sensitivity included
- Mounting type: screw terminals
- Compatible contactor: LC1D09-38
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LRD02C
- Manufacturer : Schneider Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : TeSys D
- Type : LRD
- Voltage : 600/690VAC
- Phase : 3
- Poles : 3
- Temp Rating : 28-158 °F (-20-60 °C)
- Relay Style : Thermal
- Amperage Maximum : 0.25
- Amperage Minimum : 0.16
Product Data
- Weight : 1
- Temp Rating : 28-158 °F (-20-60 °C)
- Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
