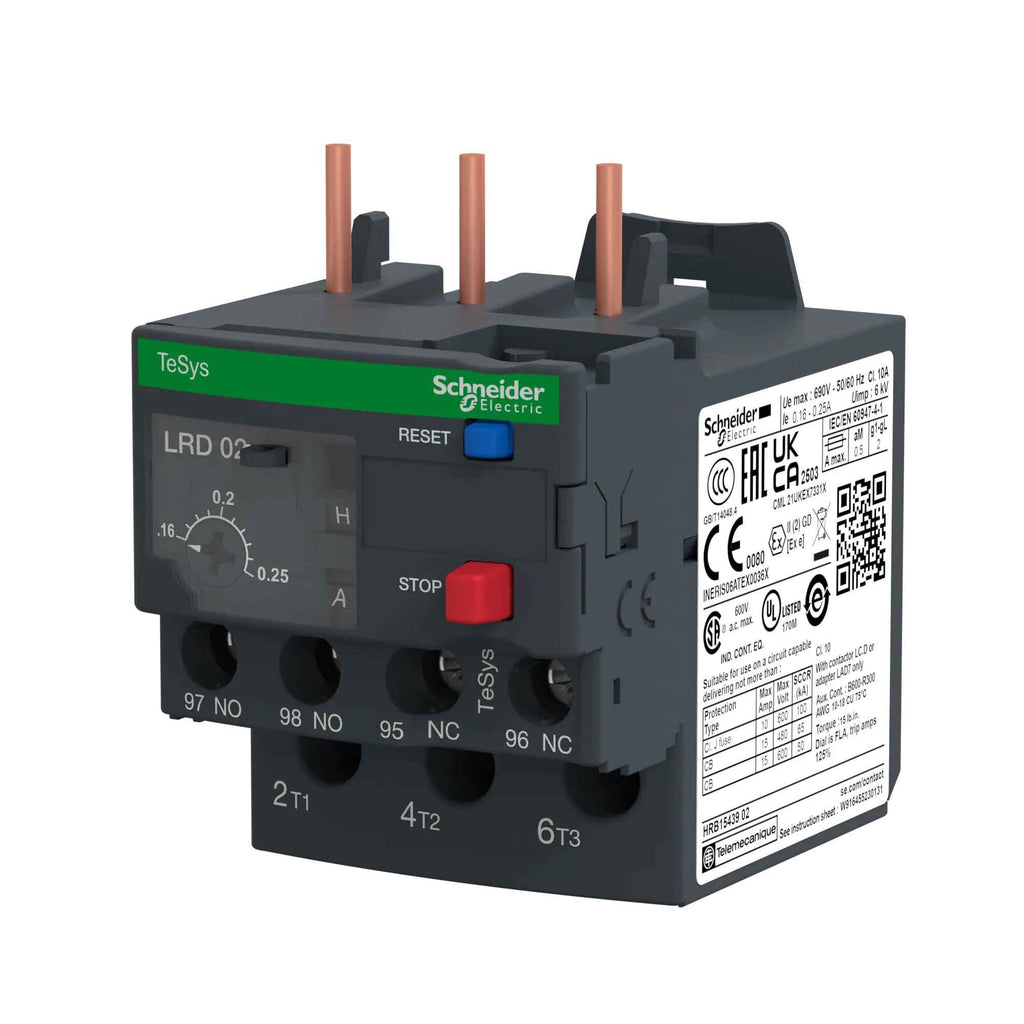

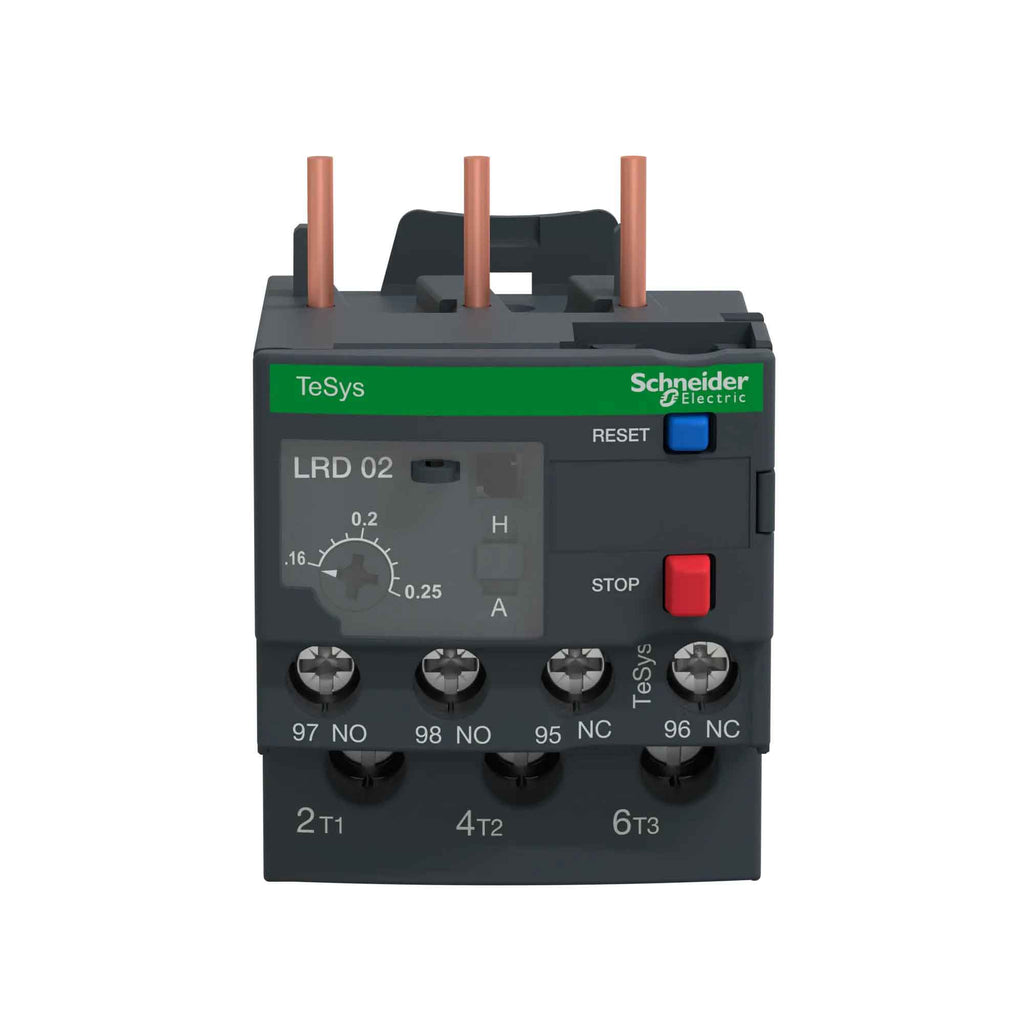

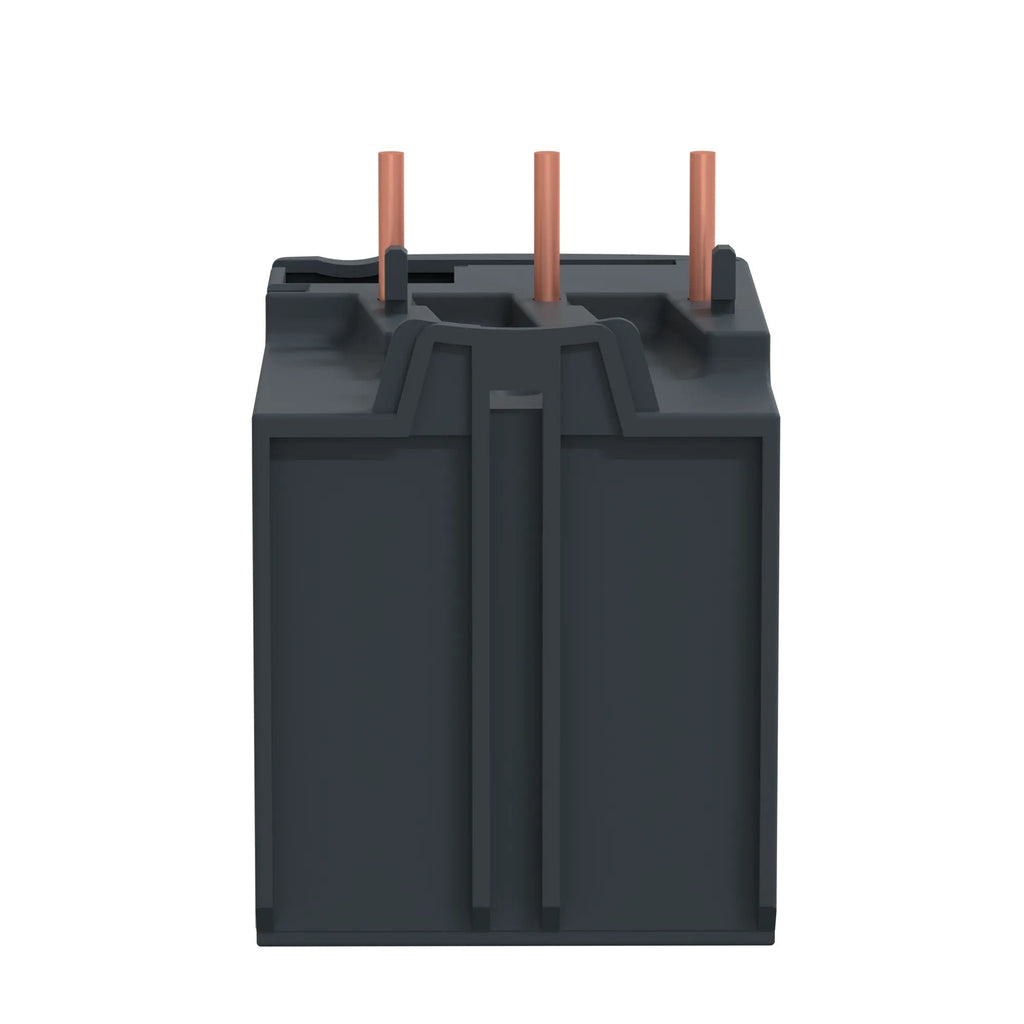

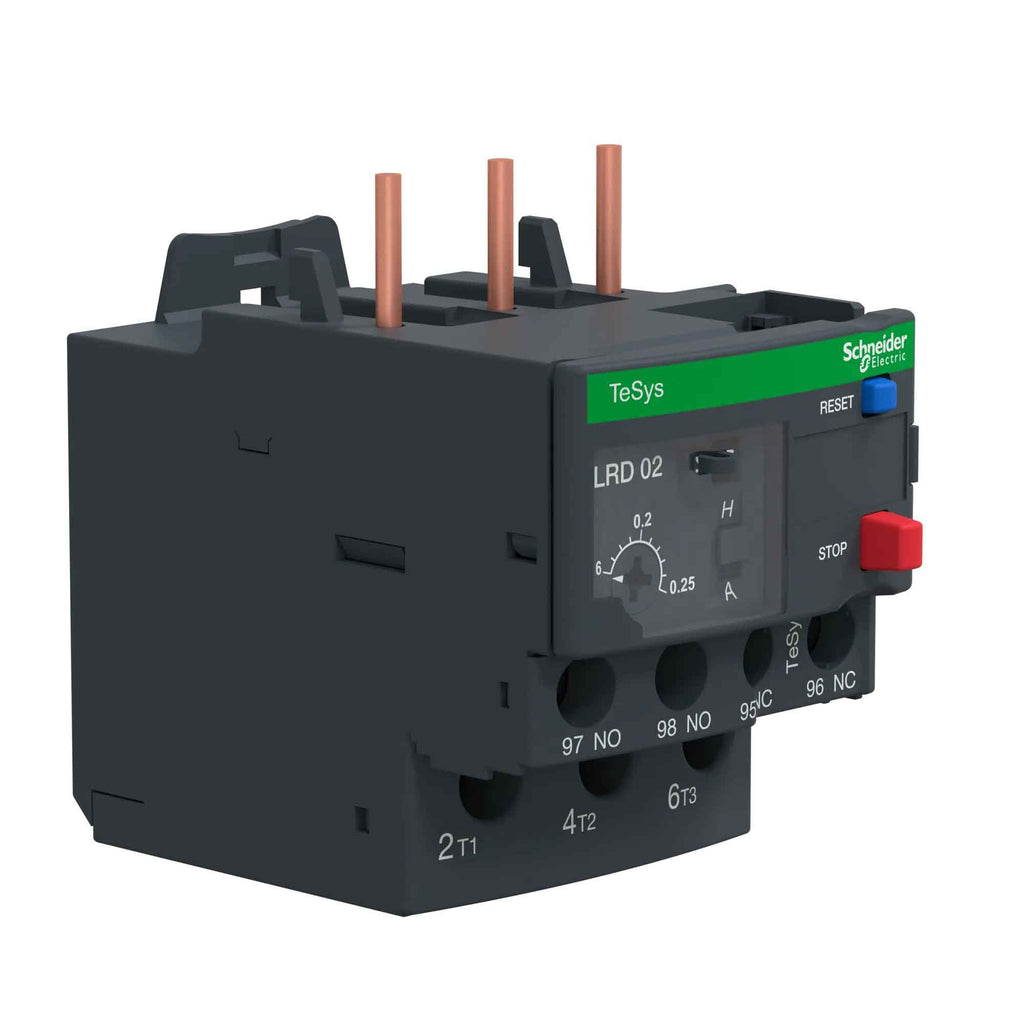

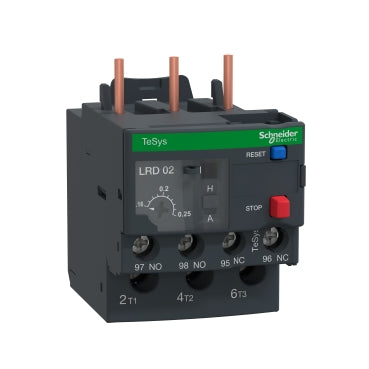

LRD02 - Telemecanique Thermal Overload Relay, 0.16-0.25A, 3-Pole, Class 10, Direct Mount, Screw Terminals, Manual/Auto Reset, Phase Loss Sensitivity, For LC1D09-LC1D32 Contactors

LRD02

This 3-pole, Class 10 overload relay offers adjustable current protection from 0.16 to 0.25A, with phase loss sensitivity and both manual and automatic reset options. It mounts directly to LC1D09 through LC1D32 contactors, features screw terminals for easy installation, and includes a test trip button for maintenance. The LRD02 is ambient compensated, provides single-phase sensitivity for phase unbalance and loss, and is suitable for a wide range of motor control applications.

Key Specifications
• Amperage: 0.16Ð0.25A adjustable
• Voltage: Rated insulation voltage 690V
• Poles: 3
• Mounting Type: Direct mount to LC1D09ÐLC1D32 contactors
• Interrupt Rating: Protected by gG, BS, or Class CC fuse (external)
• Series/Frame: TeSys Deca
• Trip Unit: Class 10 (trips in 10 seconds or less at 600% of setting)
• Certifications: Conforms to VDE 0106, IEC 60068
• Reset: Manual or automatic
• Phase Loss Sensitivity: Yes (trips at 30% of In on(more...)


  Specifications

  • Part Number: LRD02
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Aux Contacts : 1NO/1NC
  • Amperage Maximum : 0.25
  • Amperage Minimum : 0.16



  Product Data

  • UPC : 038911034672
  • GTIN : 03389110346725
  • Country of Origin : France
  • Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
  • Weight : 0.3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
