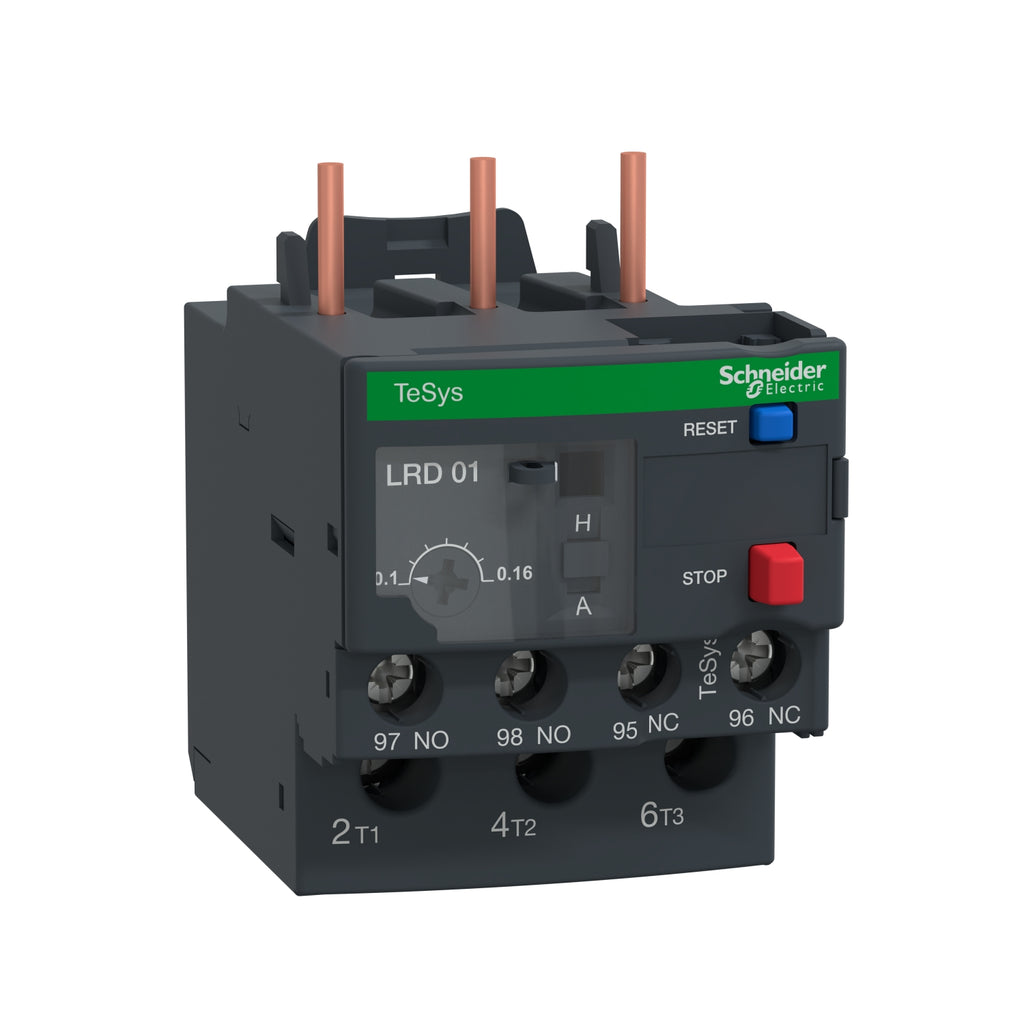

LRD01C - Schneider Electric TeSys Deca Thermal Overload Relay 0.1-0.16A Class 10A

LRD01C

LRD01C is a TeSys Deca thermal overload relay designed to protect AC motors and circuits from overload conditions. This relay features an adjustable thermal protection range and is suitable for use with a variety of motor control applications. The LRD01C provides reliable motor protection with a thermal adjustment range of 0.1 to 0.16 amps and includes phase unbalance protection. It is part of the TeSys Deca series and is designed for easy installation and operation with multi-standard screws. The relay features a visual tripping indicator, a blue reset button, and a red stop button for manual control. It also includes normally open and normally closed auxiliary contacts for integration into control circuits.

• Adjustable thermal protection range: 0.1-0.16A
• Class 10A trip curve
• Phase unbalance protection
• Visual tripping indication
• Blue reset button
• Red stop button
• Normally open (NO) and normally closed (NC) auxiliary contacts
• Multi-standard screw terminals
• TeSys Deca series
• Designed for AC motor protection
• Mounts to compatible contacto(more...)


  Specifications

  • Part Number: LRD01C
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Relay Style : Thermal
  • Amperage Maximum : 0.16
  • Amperage Minimum : 0.1



  Product Data

  • Weight : 1
  • Temp Rating : 28-158 °F (-20-60 °C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
