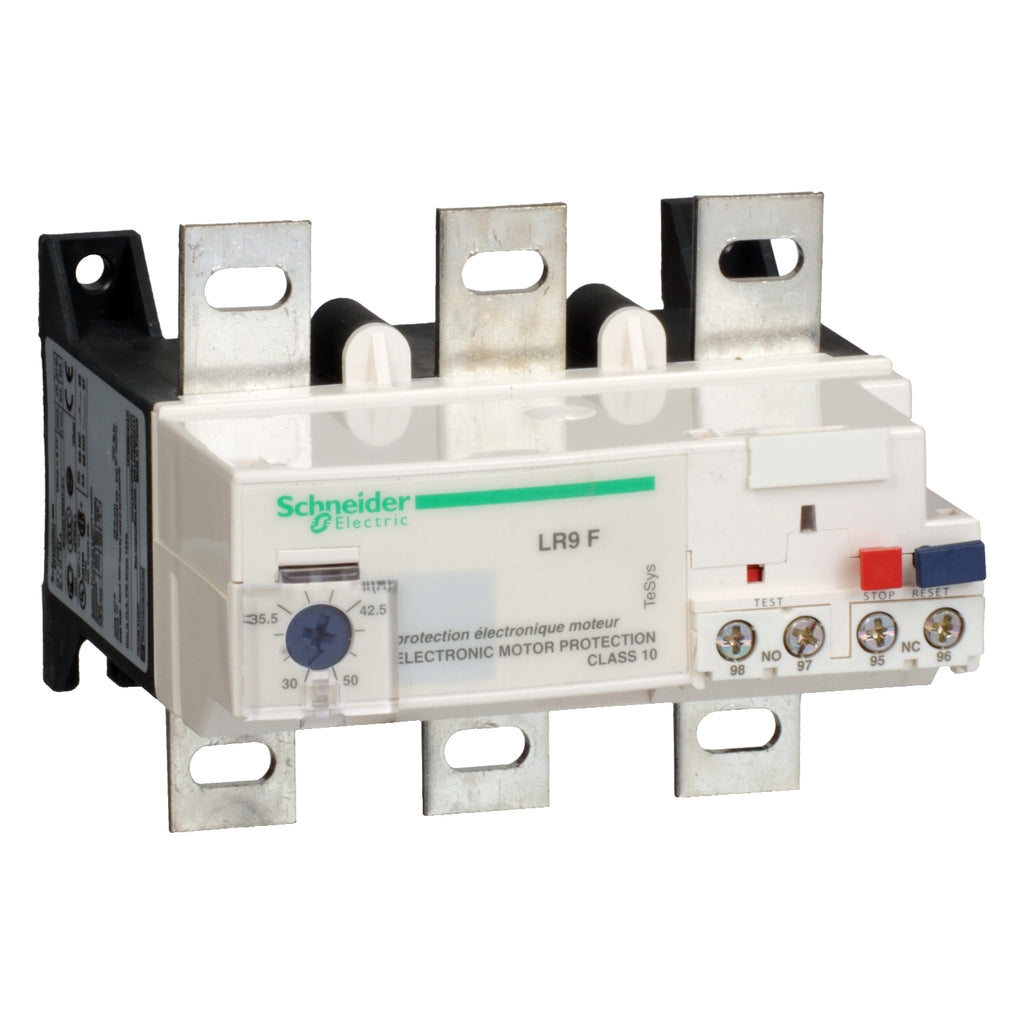

LR9F5363 - Telemecanique Electronic Thermal Overload Relay 48-80A Class 10

LR9F5363

LR9F5363 is an electronic thermal overload relay designed for motor protection with a thermal setting range of 48-80 amperes and Class 10 trip rating.LR9F5363 features a control circuit torque of 1.2 N.m and power circuit torque of 18 N.m on screw clamp terminals. It is suitable for motors rated 30-37 kW at 400 V and complies with IEC 60947-1 standards, including an 8 kV impulse withstand voltage rating. The relay is designed for direct mounting and operates reliably within a temperature range of -20 to 70 °C.

Key Specifications
• Amperage range: 48-80 A
• Trip class: 10
• Voltage rating: 1000 V AC power circuit
• Control circuit torque: 1.2 N.m
• Power circuit torque: 18 N.m
• Mounting type: Direct mount
• Impulse withstand voltage: 8 kV (IEC 60947-1)
• Motor power rating: 30-37 kW @ 400 V
• Operating temperature: -20 to 70 °C
• Standards: IEC 60947-1, IEC 60947-4, VDE 0110 group C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LR9F5363
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Voltage : 600
• Poles : 3
• Functions : LI - Long-Time and Instantaneous
• Protection : Solid State
• Compatible Frames : TJS,TJSS,TKS,THKS,THKSS,TPSS,THPSS

Product Data

• UPC : 38911056598
• GTIN : 03389110565980
• Country of Origin : France
• Dimensions : 3.8 in (96 mm) x 4.5 in (115 mm) x 4.9 in (123.5 mm) (Height x Width x Depth)
• Weight : 1.938
