Product Info
- Manufacturer:Appleton
- Sub-Category:Conduit body (LB/LL/LR) / cover
Description
LR400M

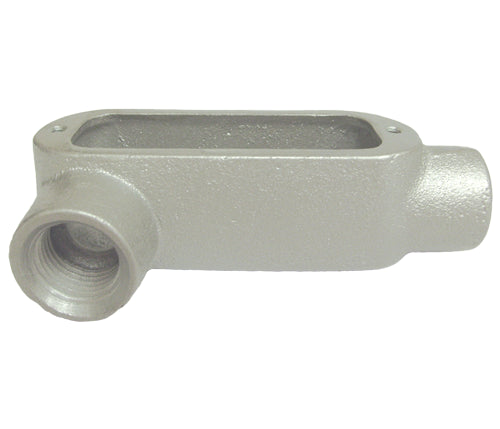

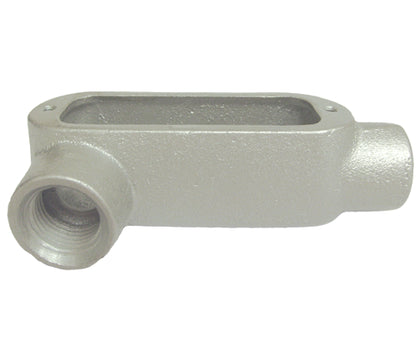

LR400M is an Appleton Form 35 UNILETS Type LR conduit outlet body with a 4 inch hub size, made of malleable iron with a triple coat epoxy finish.This conduit body features a 330 cubic inch capacity, smooth rounded integral bushings to protect conductor insulation, and accurately tapped tapered threads for tight, rigid joints. It is designed for use in ordinary locations and provides multi-angle connection orientation. The body measures approximately 16.5 inches in length and 7.13 inches in width.
- Key Specifications
- Type: LR-Type Conduit Outlet Body
- Hub Size: 4 Inches
- Form: 35
- Material: Malleable Iron
- Finish: Triple Coat Epoxy
- Capacity: 330 Cubic Inches
- Length: 16.5 Inches
- Width: 7.13 Inches
- Connection Orientation: Multi-Angle
- Standards: C22.2 NO
Additional Information
Threaded conduit body or cover plate
Specifications
- Part Number: LR400M
- Manufacturer : Appleton
- Brand : Appleton
- Category : Conduit & Fittings
- Item Subcategory : Conduit body (LB/LL/LR) / cover
Product Data
- UPC : 781381482608
- GTIN : 00786210961910
- Dimensions : 16.25 in x 6.95 in x 5.62 in (Length/Depth x Height x Width)
- Weight : 25
