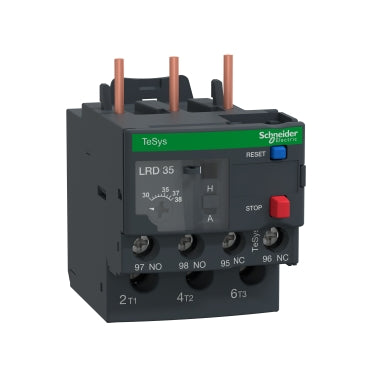

LR3D35 - Schneider Electric TeSys LRD Thermal Overload Relay 30-38A 690V Class 10A IP20 Direct Mount

LR3D35

LR3D35 is a Schneider Electric TeSys LRD thermal overload relay designed for motor protection with a thermal range of 30 to 38 amperes and a voltage rating of 690 VAC.LR3D35 provides reliable protection for motors rated 15 to 18.5 kW at 400 V, featuring a class 10A tripping characteristic suitable for unbalanced loads. It includes 1 Normally Open and 1 Normally Closed auxiliary contact, supports frequencies up to 400 Hz, and has an IP20 enclosure rating. The relay mounts directly and is built to meet IEC 60947-4-1 standards with a dielectric strength of 6 kVAC.

Key Specifications
• Amperage Range: 30-38 A
• Voltage Rating: 690 VAC
• Power Rating: 15-18.5 kW @ 400 V
• Tripping Class: 10A
• Frequency: 0-400 Hz
• Enclosure Type: IP20
• Mounting Type: Direct/Surface
• Auxiliary Contacts: 1 NO + 1 NC
• Dielectric Strength: 6 kVAC
• Operating Temperature: -20 to 60 °C
• Standards: IEC 60947-4-1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LR3D35
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Section : Overload relay
• Family : LRD

Product Data

• UPC : 785901234432
• GTIN : 00389110000000
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
• Weight : 0.319
