Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Overload Relay
Description
LR3D12

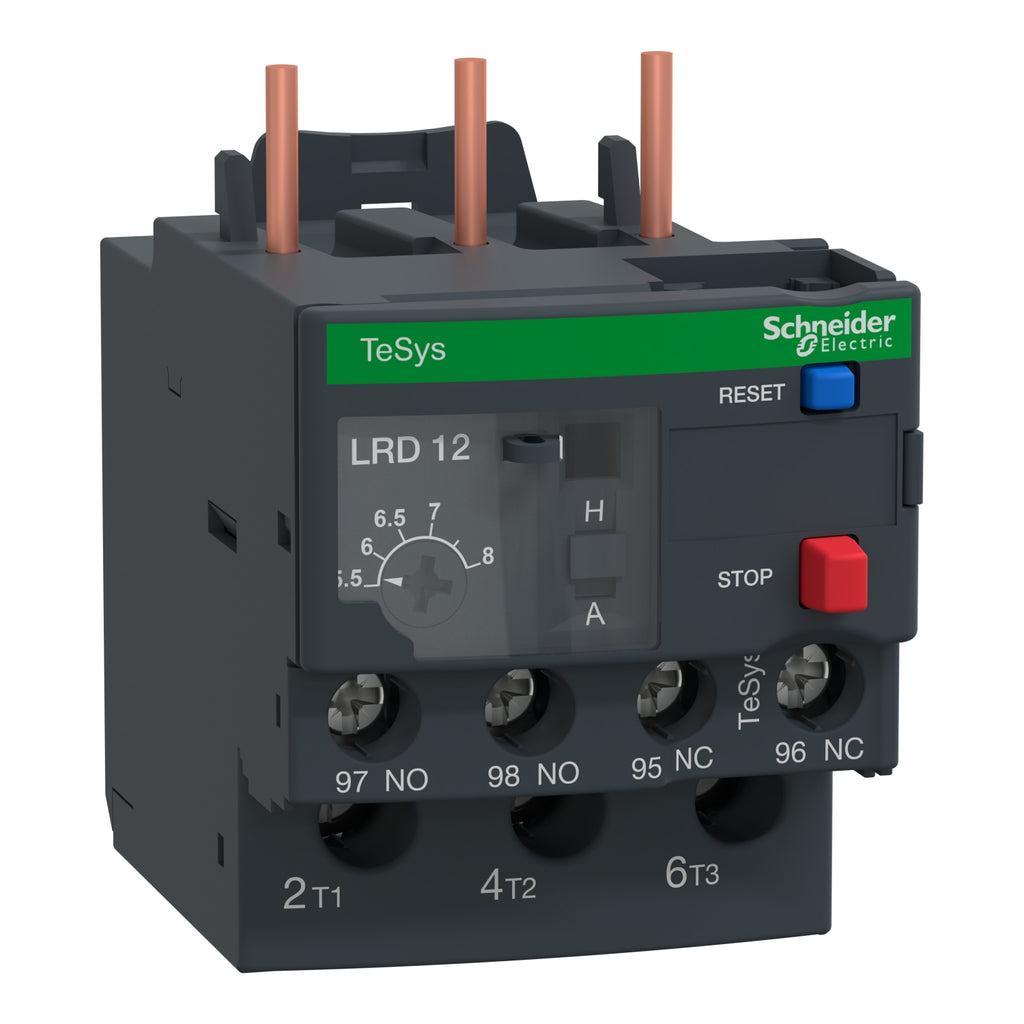

LR3D12 is a Telemecanique thermal overload relay designed for motor protection with an adjustable amperage range of 5.5 to 8 amps.This 3-pole relay operates up to 690 volts and features a Class 10A tripping characteristic suitable for unbalanced loads.
- Amperage range: 5.5 to 8 A adjustable
- Voltage rating: up to 690 VAC
- Number of poles: 3
- Mounting type: Plate/Rail surface mount
- Trip class: 10A
- Contact form: 1NO-1NC
- Enclosure type: IP20
- Thermal overload type: Bi-metallic
- Impulse withstand voltage: 6 kV
- Temperature rating: -20 to 60 °C operating
- Standards: UL, CSA, IEC 60947-4-1 compliant
Specifications
- Part Number: LR3D12
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : TeSys D
- Type : LR3D
- Amperage Maximum : 8
- Amperage Minimum : 5.5
Product Data
- UPC : 785901206873
- GTIN : 00389110346964
- Country of Origin : France
- Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
- Weight : 0.311
- Certification : EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495
