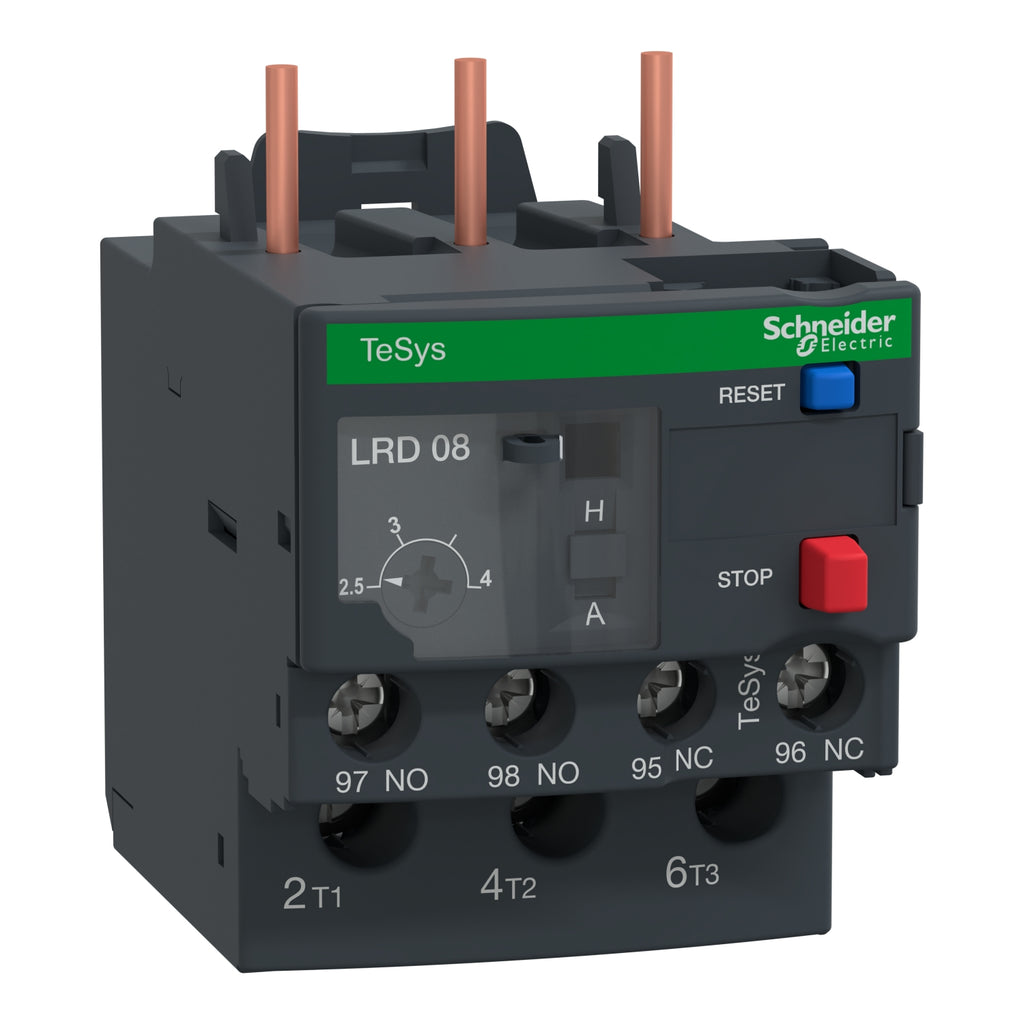

LR3D08 - Telemecanique TeSys LRD Thermal Overload Relay 2.5-4A 690V 3 Pole Surface Mount IP20

LR3D08

LR3D08 is a Telemecanique TeSys LRD thermal overload relay designed for motor protection with an adjustable current range of 2.5 to 4 A.This non-differential thermal overload relay features a 3-pole design, suitable for use with contactors such as LC1D series. It supports a rated operational voltage of up to 690 V AC at frequencies from 0 to 400 Hz, with a tripping class 10A and a conventional free air thermal current of 5 A. The device mounts on a surface and uses clamp/threaded terminals for secure wiring. It has an IP20 enclosure rating and complies with IEC 60947-4-1 standards. The relay includes 1NO-1NC contact forms and is suitable for motor protection applications up to 1.5 kW at 400 V.

Key Specifications
• Amperage Range: 2.5 to 4 A
• Voltage Rating: 690 V AC
• Poles: 3
• Mounting Type: Surface mount
• Interrupt Rating: Class 10A thermal trip
• Series/Frame: TeSys LRD, D-Line
• Trip Unit Type: Bi-metallic thermal
• Contact Form: 1NO-1NC (1 Form A/1 Form B)
• Enclosure Rating: IP20
• Frequency Range: 0 to 400 Hz
• Terminal Type: Clamp/threaded
• Operating Temperature: -20 to 60 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LR3D08
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LR3D
• Amperage Maximum : 4
• Amperage Minimum : 2.5

Product Data

• UPC : 785901206859
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
• Weight : 0.304
• Certification : CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
