Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Overload Relay
Description
LR3D05

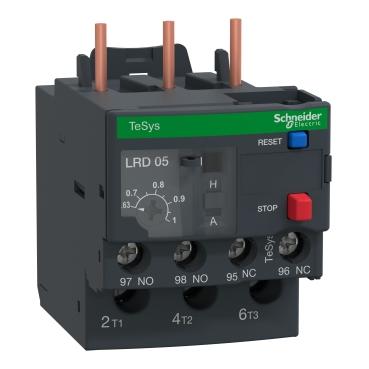

LR3D05 Telemecanique thermal overload relay provides reliable protection for AC motors and circuits against overloads.
This adjustable overload relay features a bimetallic trip mechanism, manual or automatic reset, and is designed for use with unbalanced loads. It is part of the TeSys Deca series and is suitable for dynamic motor applications requiring precise overload protection.
-
Key Specifications
- Part Number: LR3D05
- Manufacturer: Telemecanique (Schneider Electric)
- Amperage Range: 0.63–1 A adjustable
- Voltage: Up to 690V AC
- Poles: Not specified
- Mounting Type: Screw clamp terminals
- Interrupt Rating: Not specified
- Series/Frame: TeSys Deca (LR Series)
- Trip Unit: Thermal, Class 10A
- Reset: Manual or automatic
- Certifications: Not specified
- Contact Rating: 600V AC
- Motor Protection: Suitable for 0.18 kW @ 400V
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LR3D05
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : TeSys D
- Type : LR3D
- Amperage Maximum : 1
- Amperage Minimum : 0.6
Product Data
- UPC : 038911034691
- Country of Origin : France
- Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
- Weight : 0.306
