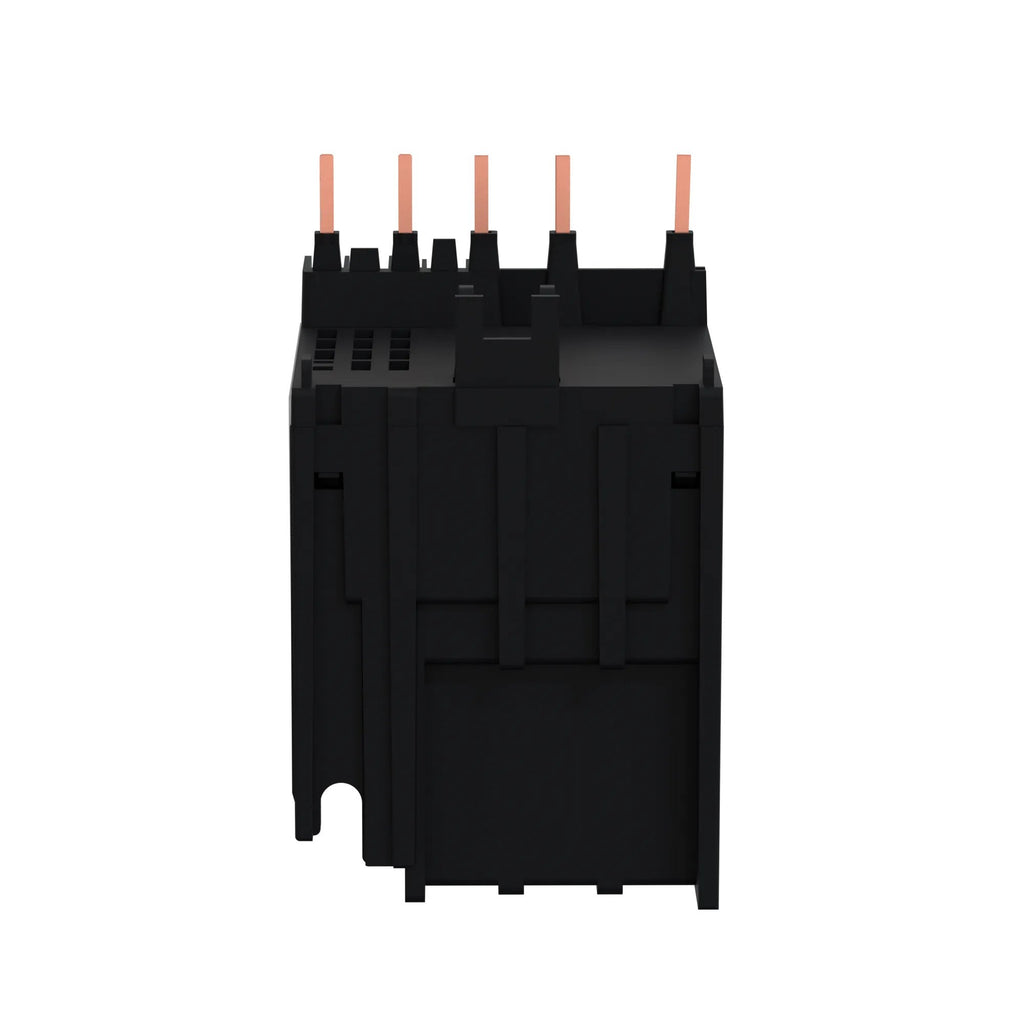

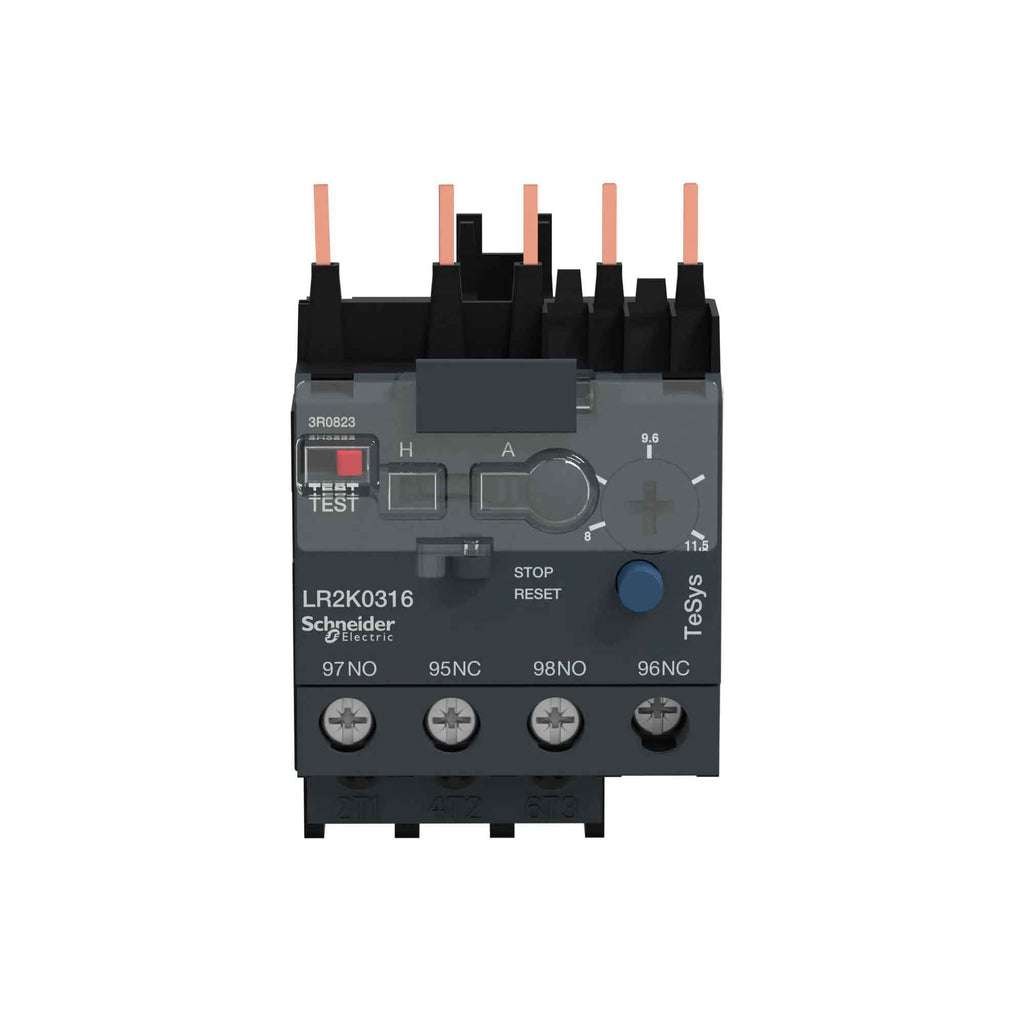

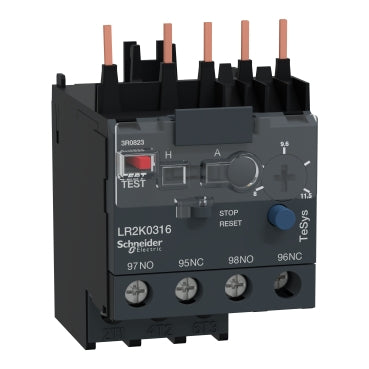

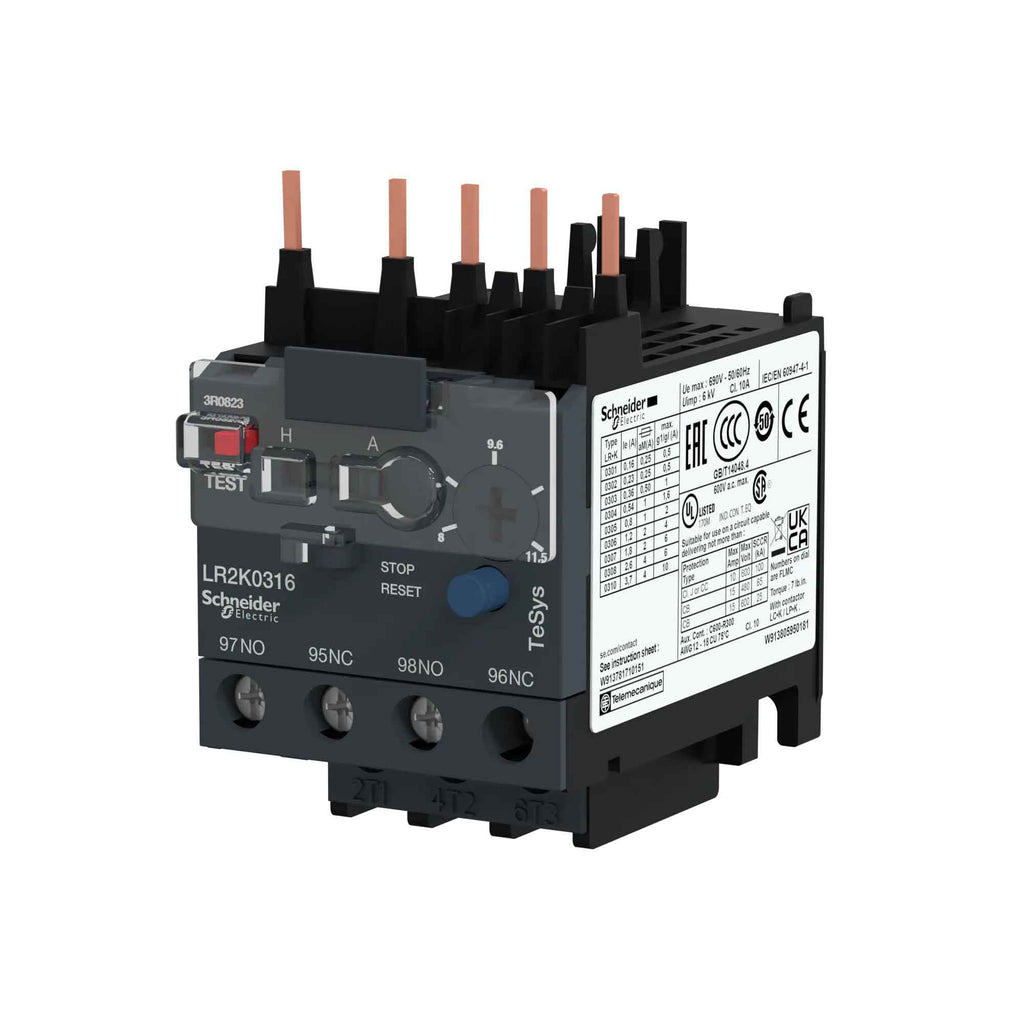

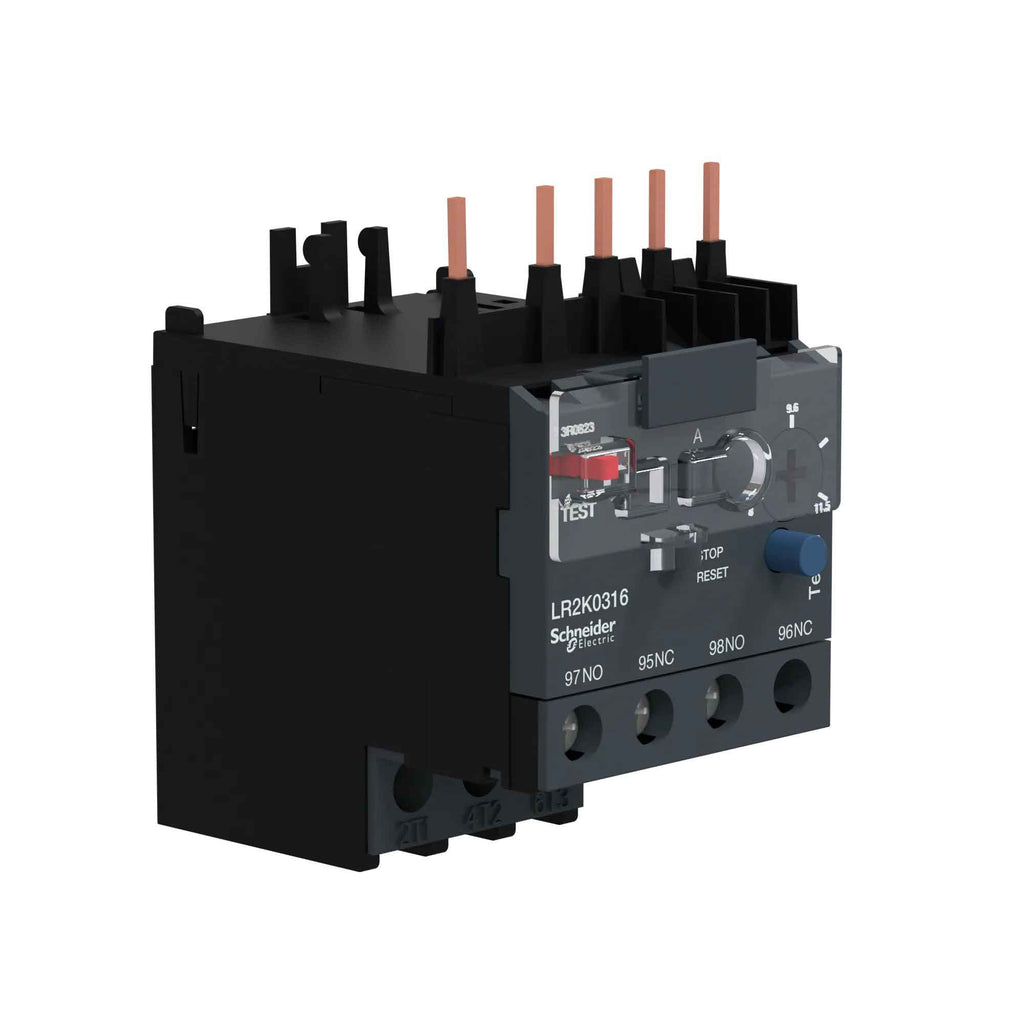

LR2K0316 - Telemecanique 8-11.5A Thermal Overload Relay, 3 Poles, Surface Mount, Class 10A Trip

LR2K0316

LR2K0316 is a Telemecanique thermal overload relay designed for motor protection with an adjustable current range of 8 to 11.5 amps.This relay features a 3-pole design with a class 10A trip unit, suitable for motors up to 4 kW at 400V. It includes phase unbalance protection and offers manual or automatic reset options. The device mounts directly on contactors or via plates and rails with accessories, and it has an IP2X enclosure rating for safety. It operates within a temperature range of -20 to 55 degrees Celsius and supports a contact rating of 11.5 A at 690 VAC.

Key Specifications
• Amperage Range: 8 to 11.5 A
• Poles: 3
• Mounting Type: Surface mount, direct on contactor or with accessories
• Trip Class: 10A
• Contact Form: 1NC-1NO or 1NO-1NC
• Contact Rating: 11.5 A at 690 VAC
• Enclosure Type: IP2X
• Operating Temperature: -20 to 55 °C
• Frequency Rating: 0 to 400 Hz
• Series: TeSys K-Line
• Reset Type: Manual or automatic
• Phase Unbalance Protection: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LR2K0316
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys K
• Type : LR2K
• Relay Style : Solid State
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 11.5
• Amperage Minimum : 8

Product Data

• UPC : 038911023058
• GTIN : 03389110230581
• Country of Origin : Czechia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.6 in (65 mm) (Height x Width x Depth)
• Weight : 0.346
• Certification : BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, VDE 0660
