Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Overload Relay
Description
LR2K0314

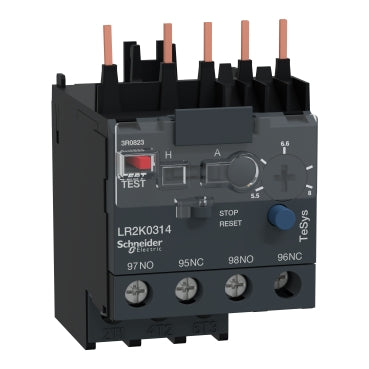

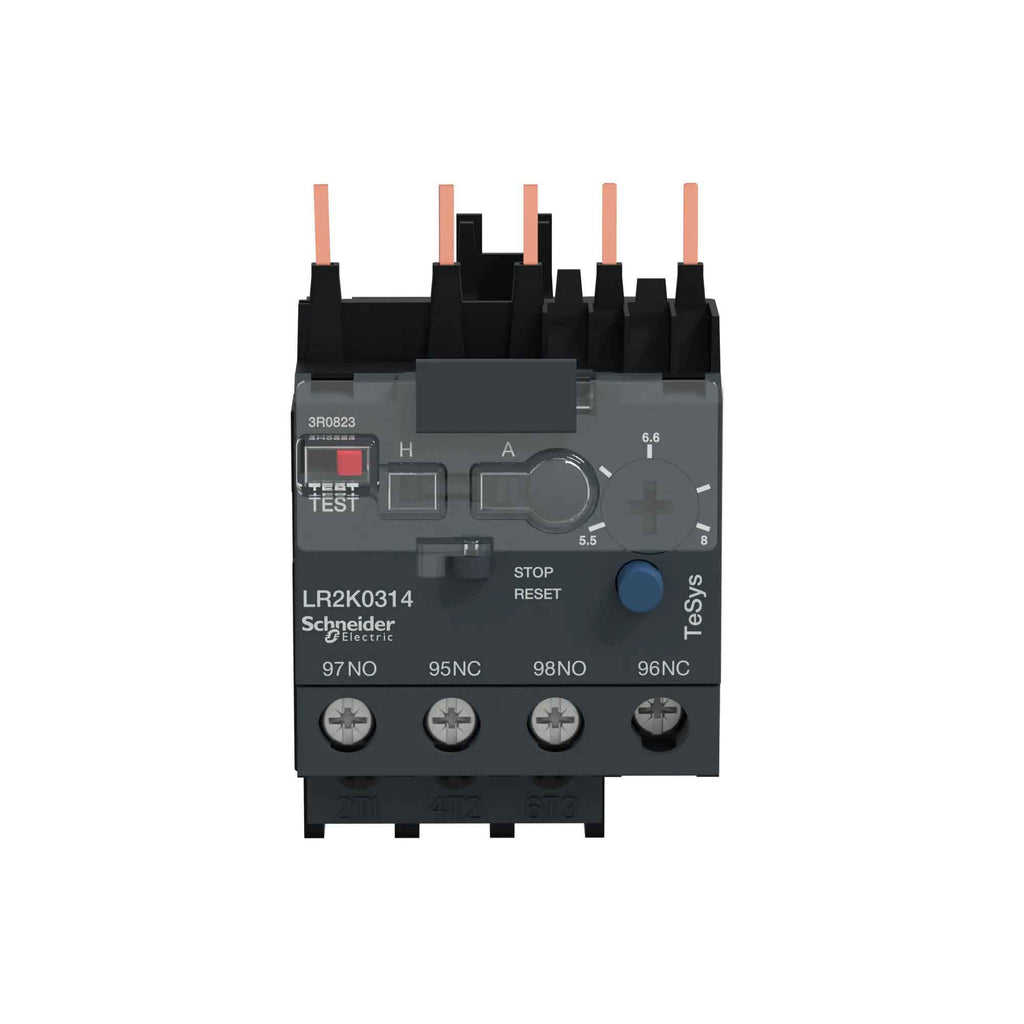

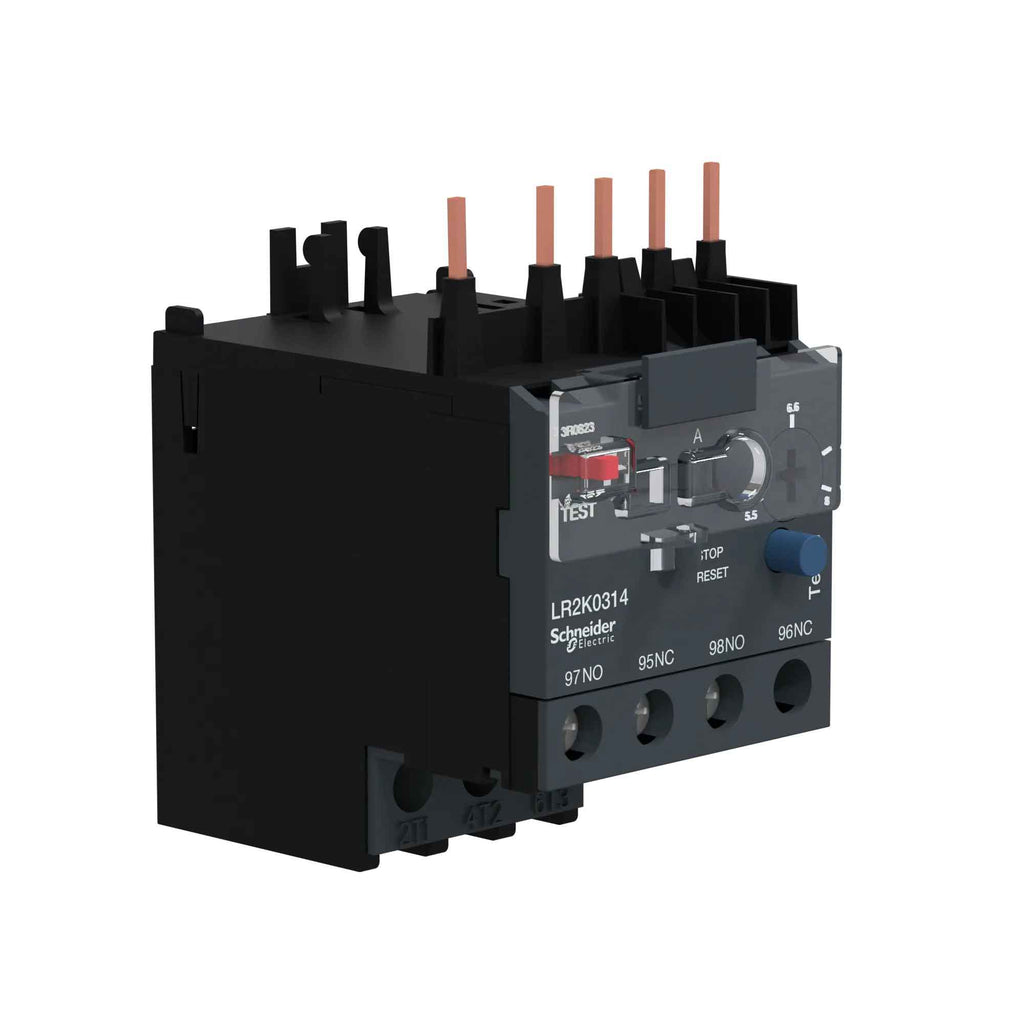

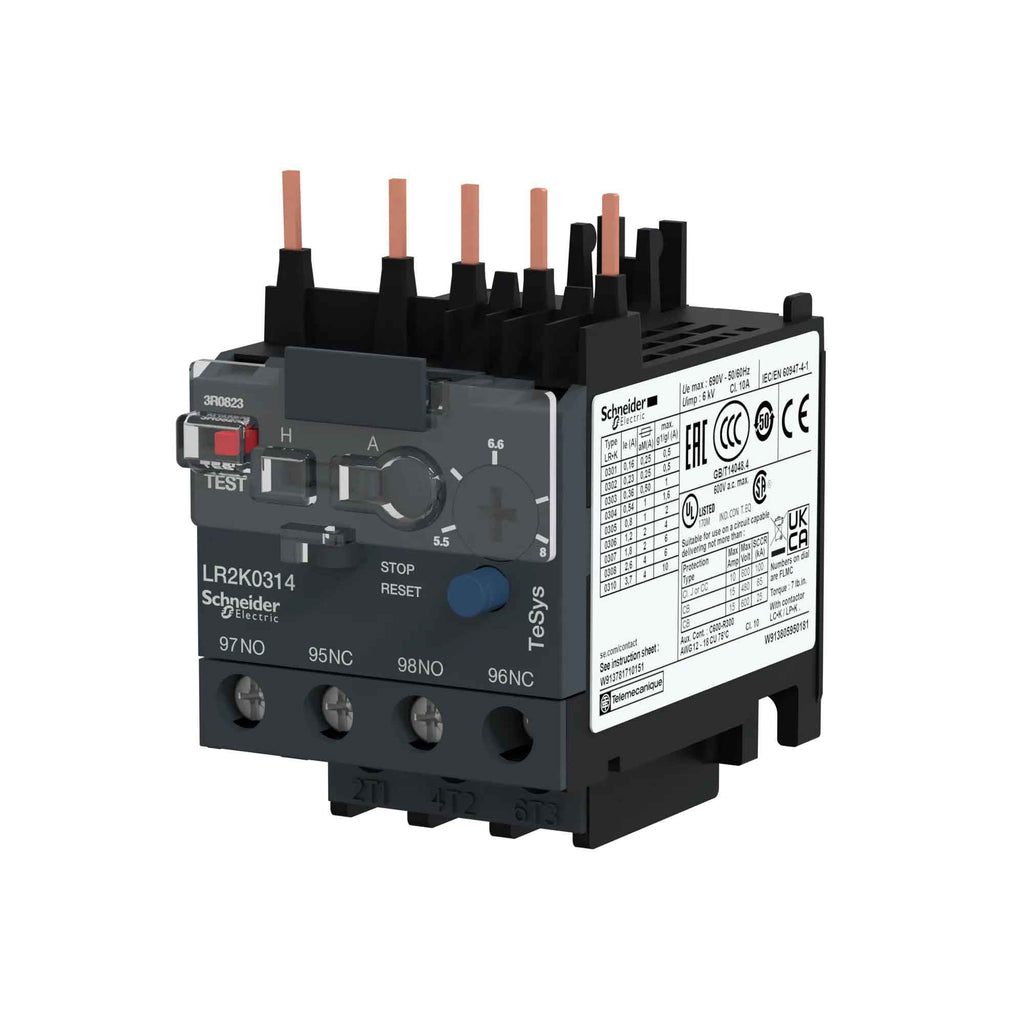

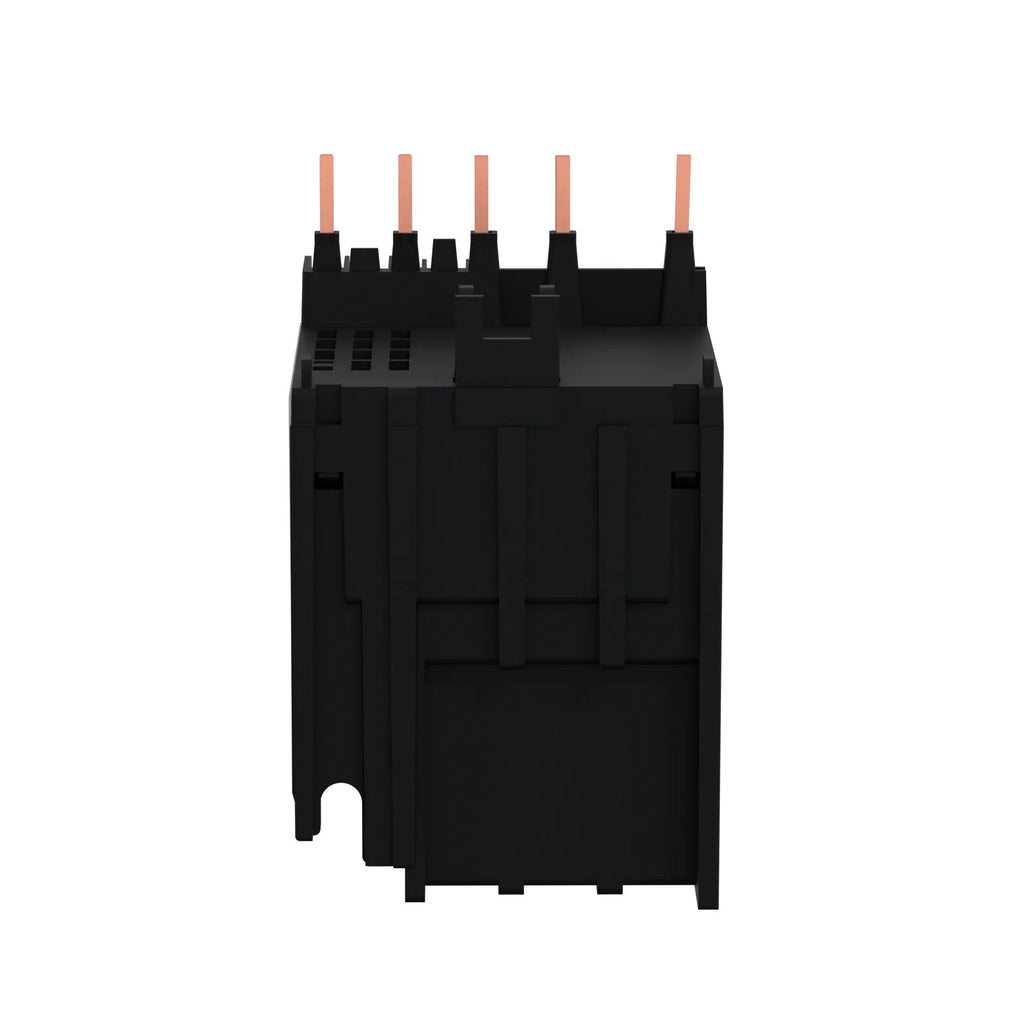

LR2K0314 is a Telemecanique TeSys K Series thermal overload relay designed to protect motors with a current range of 5.5 to 8 amperes and a voltage rating up to 600V.This 3-pole overload relay features a Class 10A trip unit with phase unbalance protection and is suitable for mounting directly on contactors or with accessories on rails or plates. It supports manual or automatic reset and has an IP2X enclosure rating. The relay is compatible with LC1K and LC2K contactors rated 6-12A and is designed for motor protection up to 3kW at 400V.
- Key Specifications
- Amperage Range: 5.5 to 8 A
- Voltage Rating: Up to 600 VAC
- Number of Poles: 3
- Trip Class: 10A
- Mounting Type: Direct on contactor, rail or plate with accessories
- Enclosure Type: IP2X
- Contact Form: 1NC-1NO or 1NO-1NC
- Frequency Rating: 0 to 400 Hz
- Compatible Series: TeSys K
- Reset Type: Manual or automatic
- Country of Origin: France
Specifications
- Part Number: LR2K0314
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : TeSys K
- Type : LR2K
- Relay Style : Solid State
- Aux Contacts : 1NO/1NC
- Amperage Maximum : 8
- Amperage Minimum : 5.5
Product Data
- UPC : 038911023057
- GTIN : 03389110230574
- Country of Origin : Czechia
- Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.6 in (65 mm) (Height x Width x Depth)
- Weight : 0.351
- Certification : BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, VDE 0660
