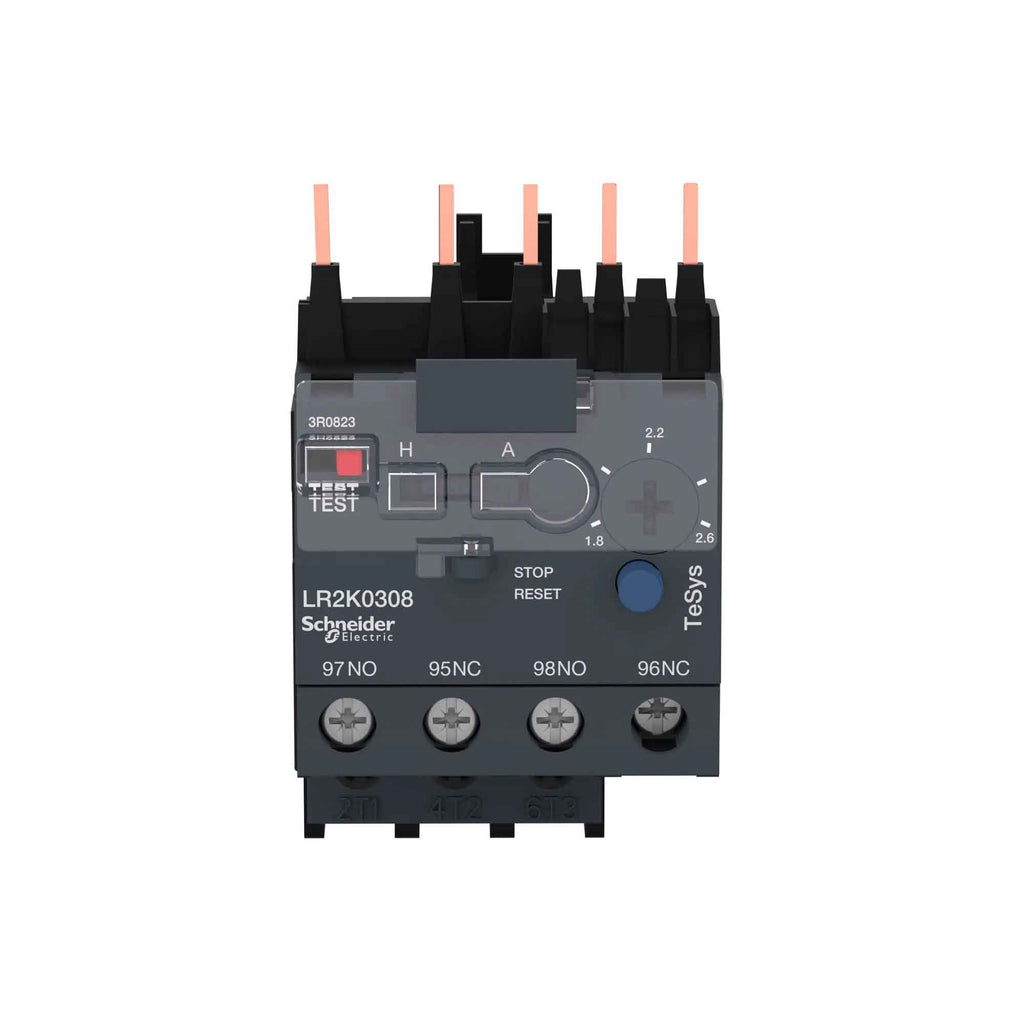

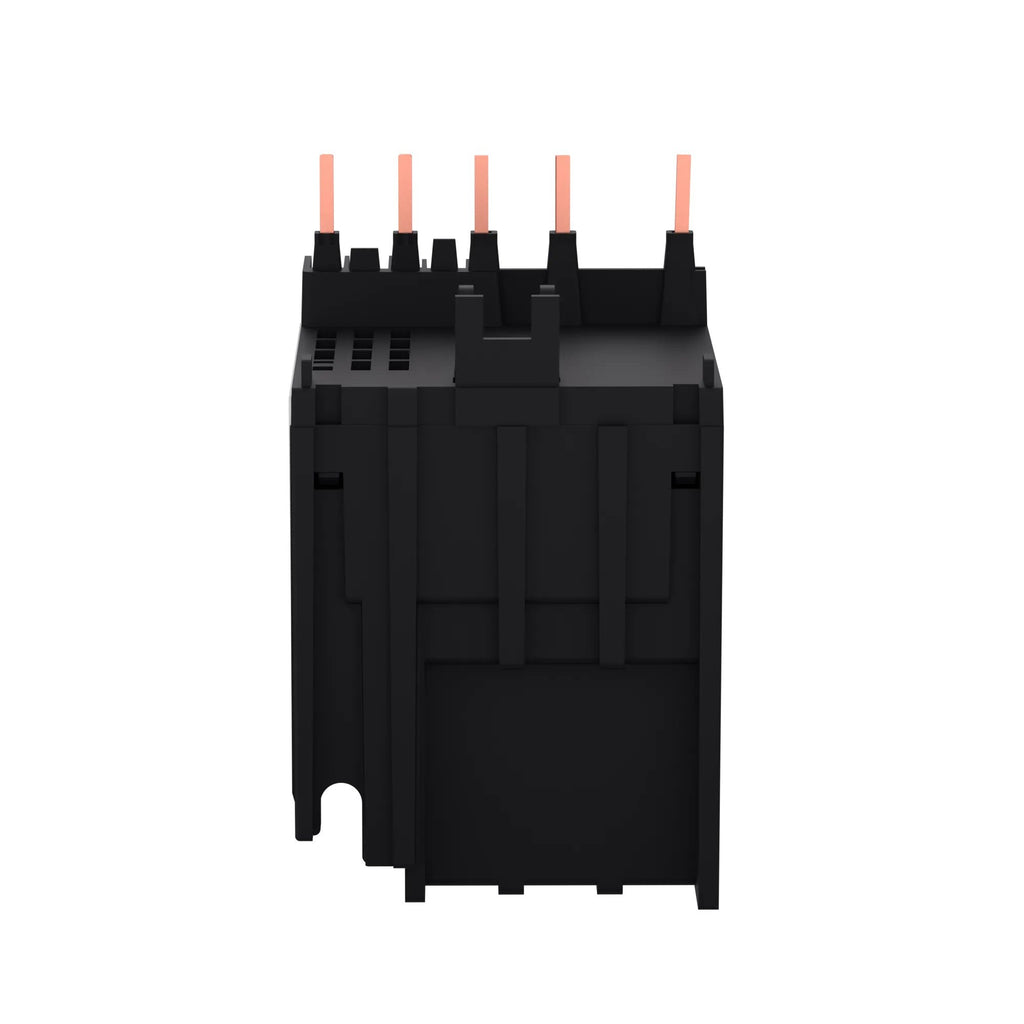

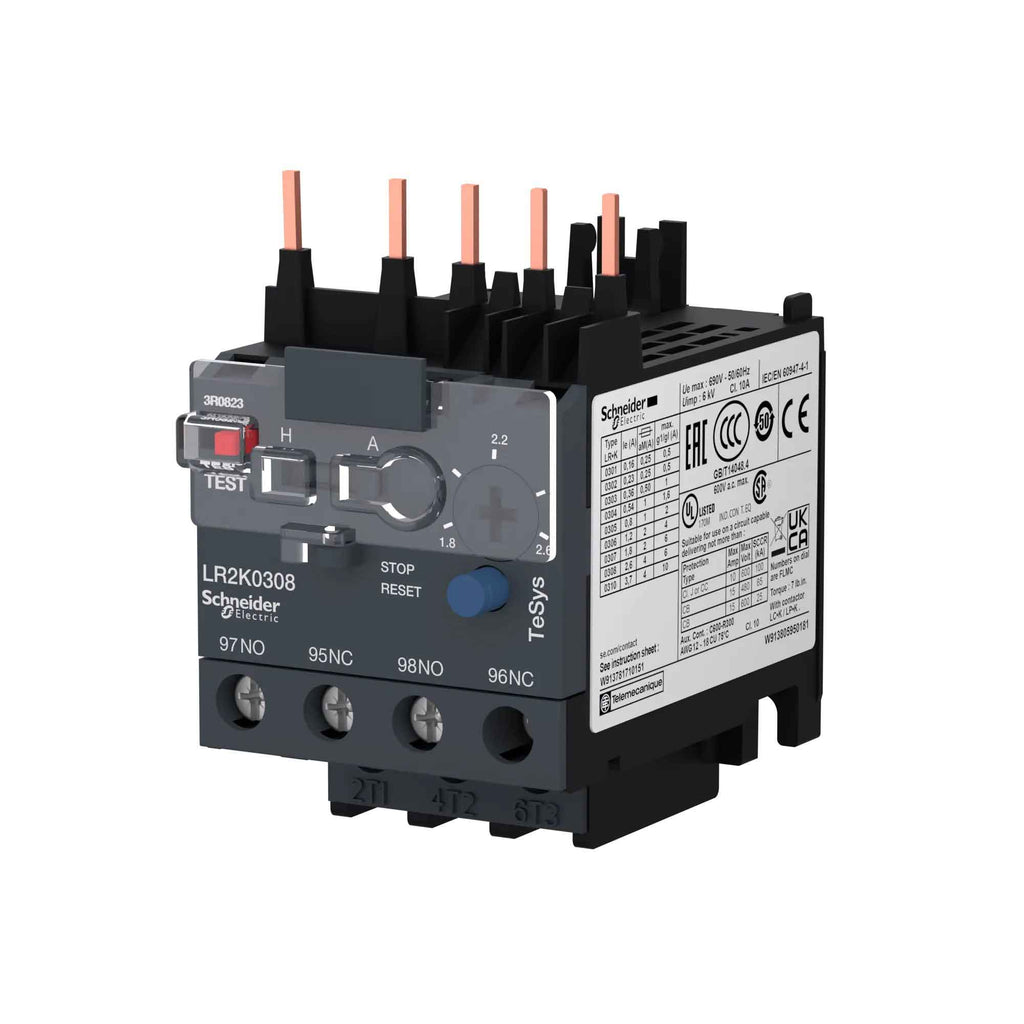

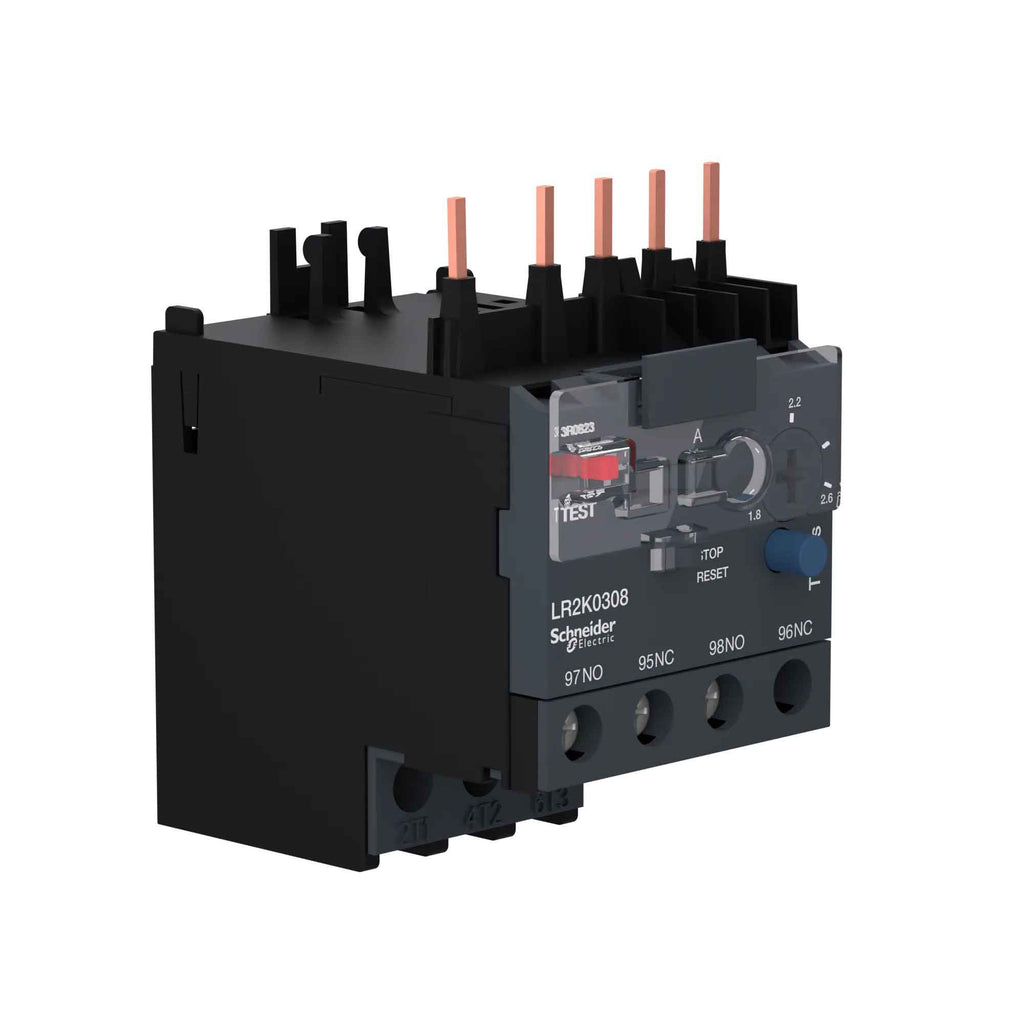

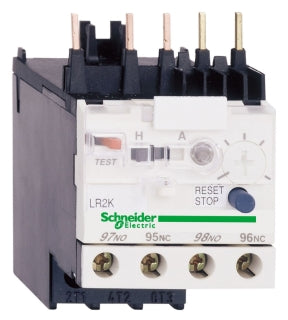

LR2K0308 - Telemecanique TeSys K Thermal Overload Relay 1.8-2.8A 3-Pole 600V Class 10A

LR2K0308

LR2K0308 is a Telemecanique TeSys K series thermal overload relay designed for motor protection with an adjustable trip current range of 1.8 to 2.8 amperes.

This 3-pole solid state overload relay operates at up to 600 volts and features a Class 10A trip unit, suitable for use with LC1K and LC2K contactors rated 6 to 12 amps. It provides reliable thermal protection to minimize motor winding damage and complies with industry standards for motor control applications.

Key Specifications
• Adjustable amperage range: 1.8 to 2.8 A
• Voltage rating: 600 V
• Poles: 3
• Trip class: 10A
• Series/Frame: TeSys K
• Mounting type: Panel mount compatible with LC1K/LC2K contactors
• Interrupt rating: Standard for motor overload relays
• Certifications: UL and industry compliant
• Weight: Approximately 0.32 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LR2K0308
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys K
• Type : LR2K
• Relay Style : Solid State
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 2.8
• Amperage Minimum : 1.8

Product Data

• UPC : 785901883067
• GTIN : 03389110230444
• Country of Origin : Czechia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.6 in (65 mm) (Height x Width x Depth)
• Weight : 0.346
• Certification : BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, VDE 0660
