Product Info
- Manufacturer:Telemecanique||Schneider Electric
- Sub-Category:Overload Relay
Description
LR2K0306

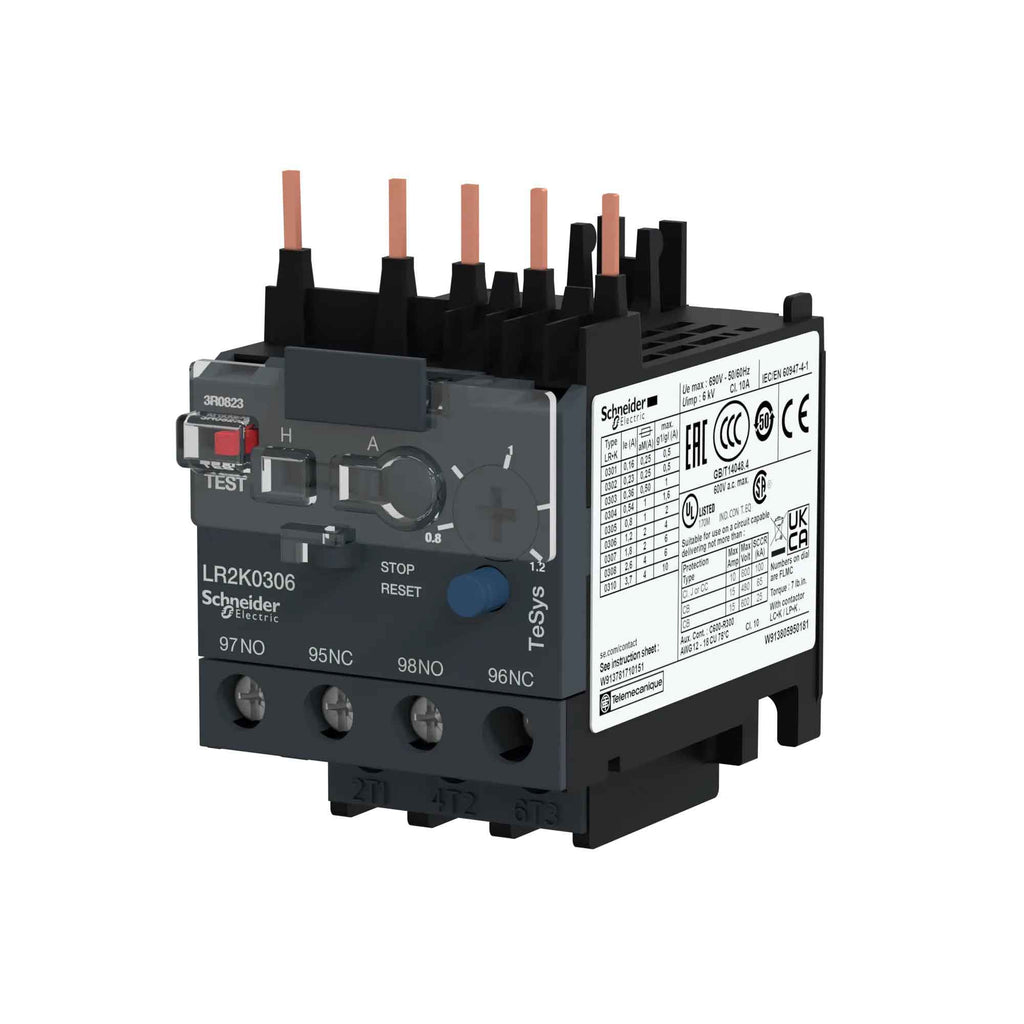

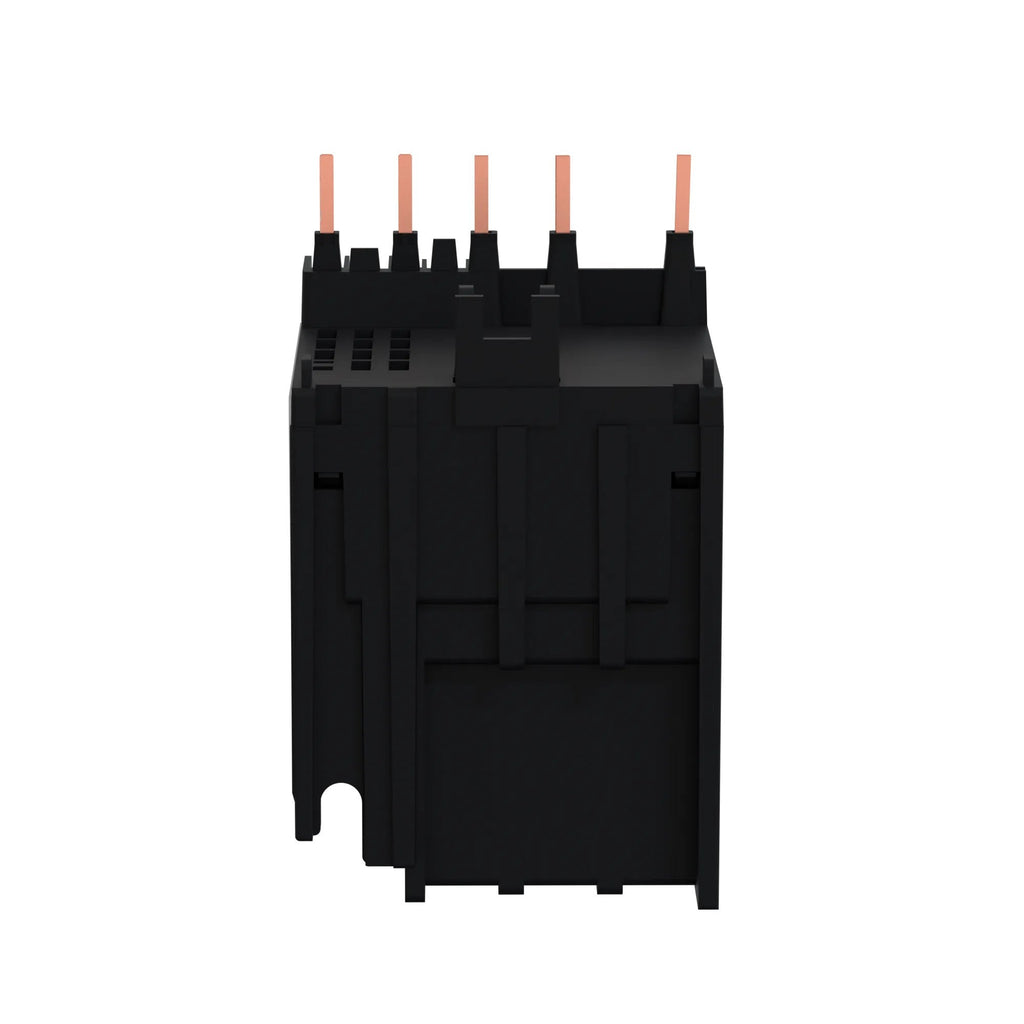

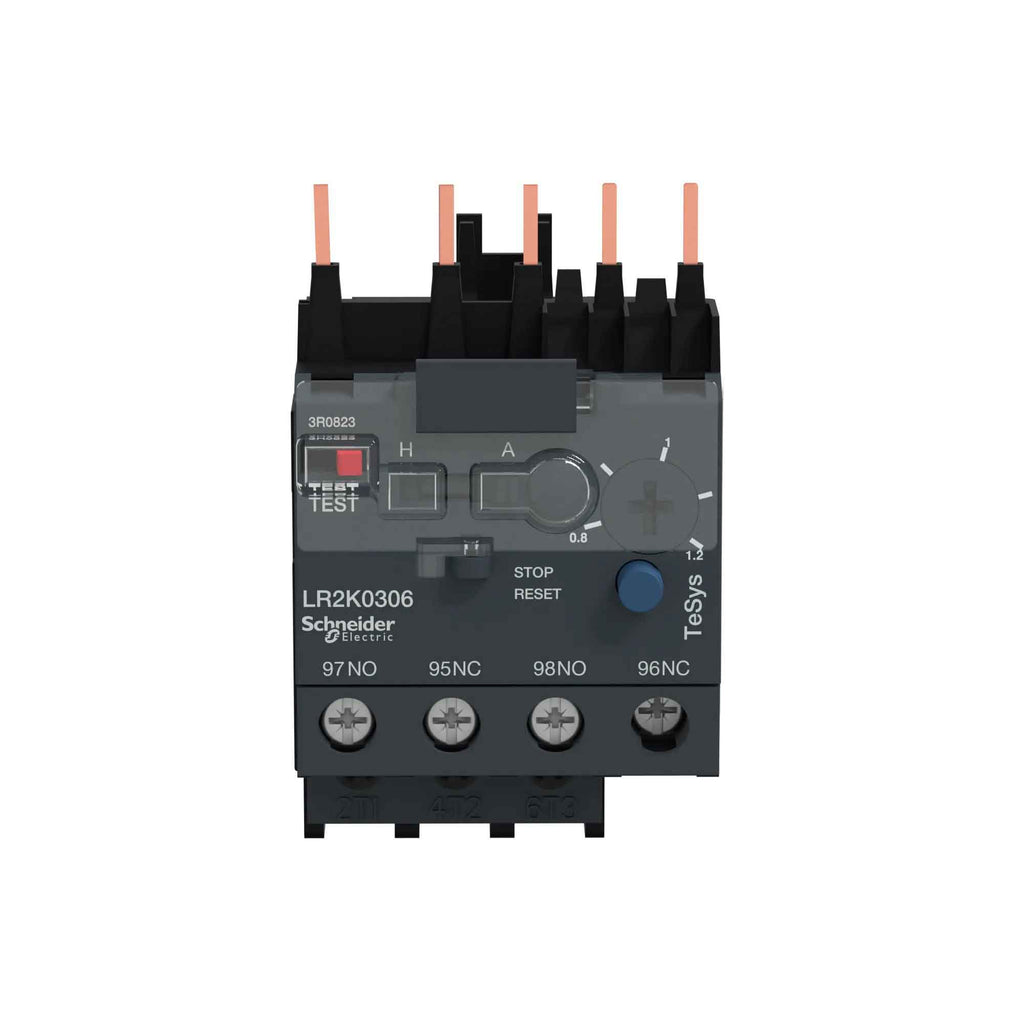

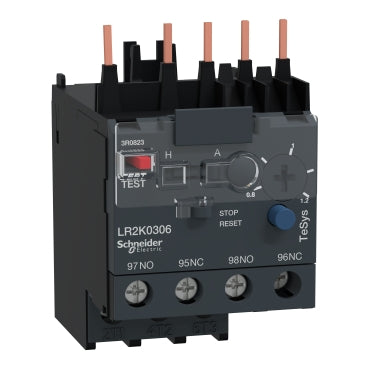

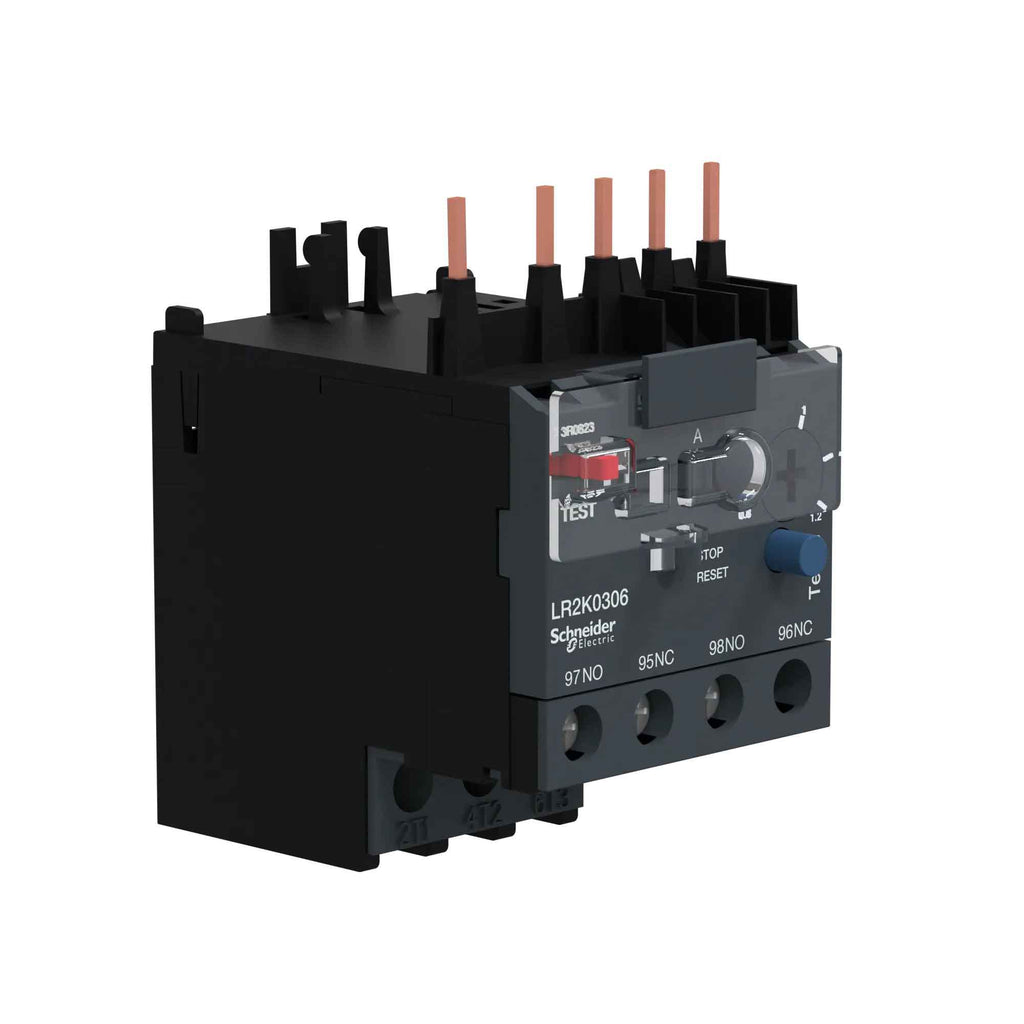

LR2K0306 is a Schneider Electric TeSys K thermal overload relay designed for motor protection with a thermal setting range of 0.8 to 1.2 amperes.This 3-pole relay provides reliable overload protection for 3-phase motors rated 0.25-0.37 kW at 400V, featuring a tripping class 10A and phase unbalance detection. It supports manual test and reset functions and is built for surface mounting with clamp/threaded terminals. The compact device has an IP2X enclosure rating and operates within a temperature range of -20 to 55 degrees Celsius.
- Key Specifications
- Amperage Range: 0.8 to 1.2 A
- Voltage Rating: Up to 690 VAC
- Number of Poles: 3
- Mounting Type: Surface Mount
- Contact Form: 1NC-1NO (1 Form A/1 Form B)
- Tripping Class: 10A
- Frequency Rating: 0 to 400 Hz
- Enclosure Type: IP2X
- Terminal Type: Clamp/Threaded
- Operating Temperature: -20 to 55 °C
- Series: TeSys K-Line
- Country of Origin: Czech Republic
Specifications
- Part Number: LR2K0306
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : TeSys K
- Type : LR2K
- Relay Style : Solid State
- Aux Contacts : 1NO/1NC
- Amperage Maximum : 1.2
- Amperage Minimum : 0.8
Product Data
- UPC : 038911023042
- GTIN : 03389110230420
- Country of Origin : Czechia
- Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.6 in (65 mm) (Height x Width x Depth)
- Weight : 0.342
- Certification : BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, VDE 0660
