LR2K0305 - Telemecanique TeSys K Differential Thermal Overload Relay 0.54-0.8A 3P 690V Class 10A

LR2K0305

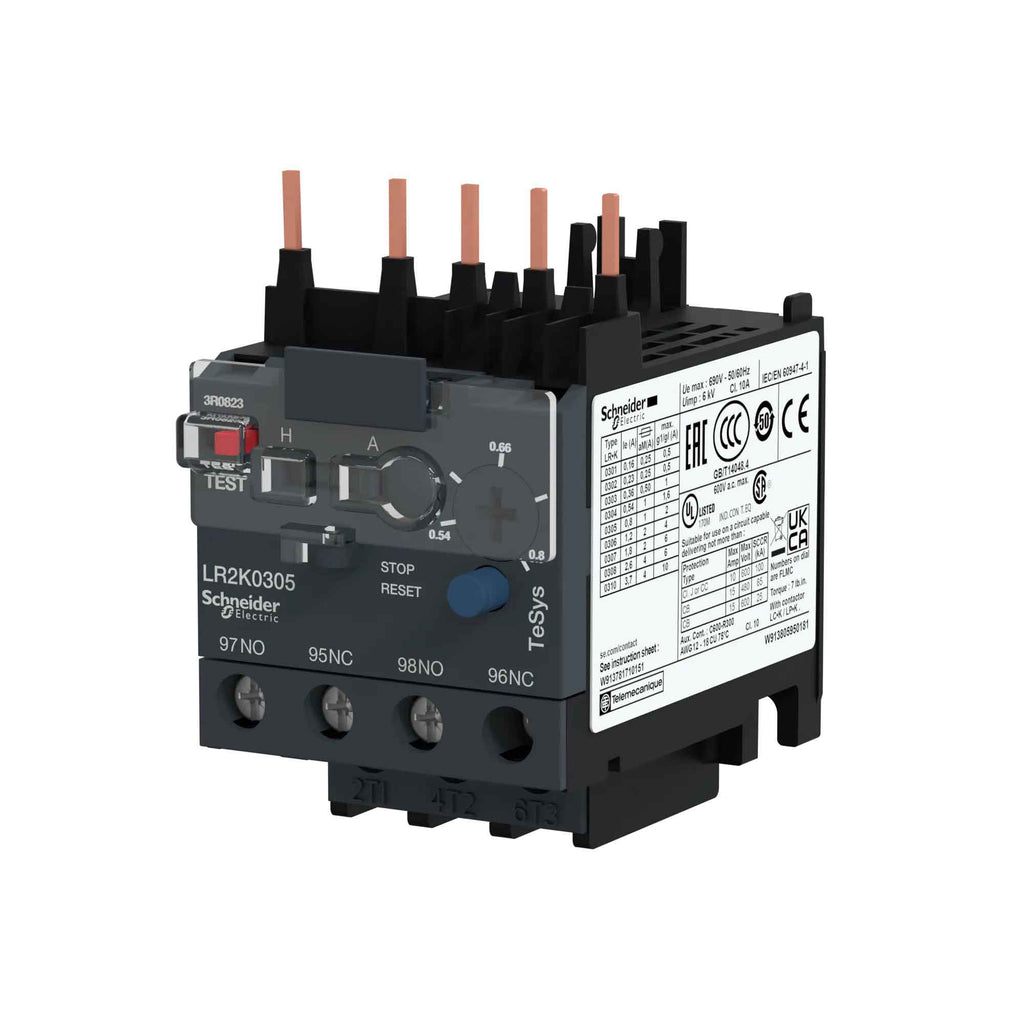

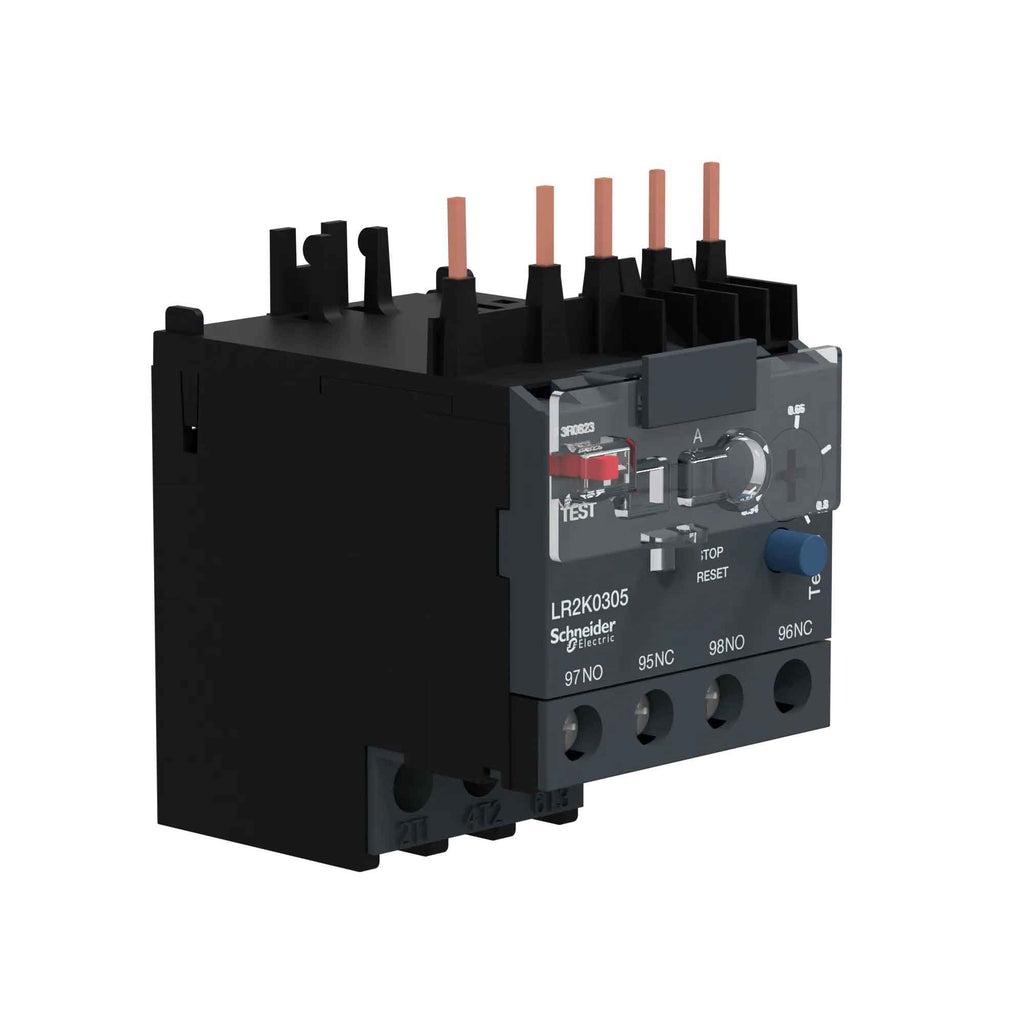

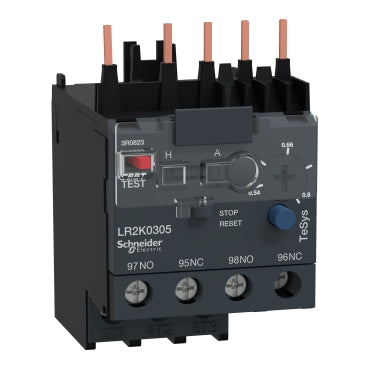

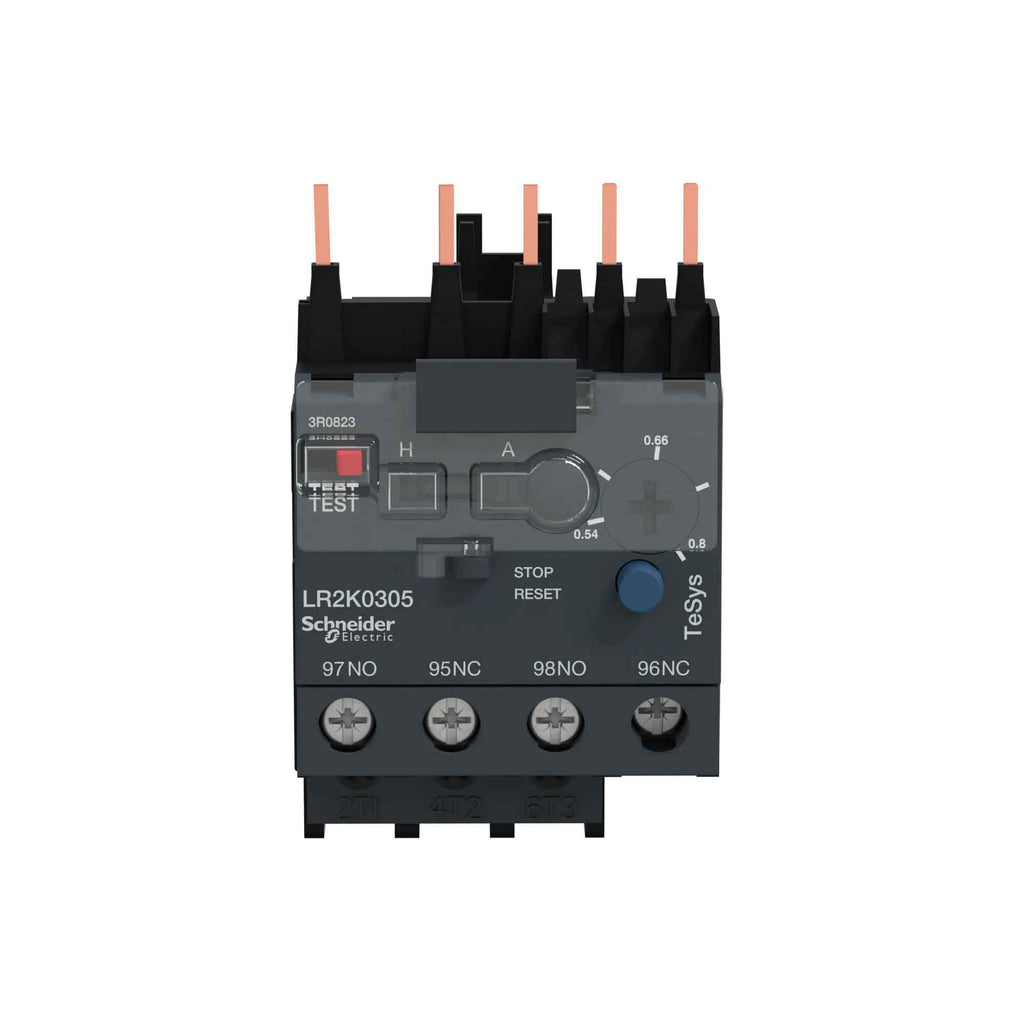

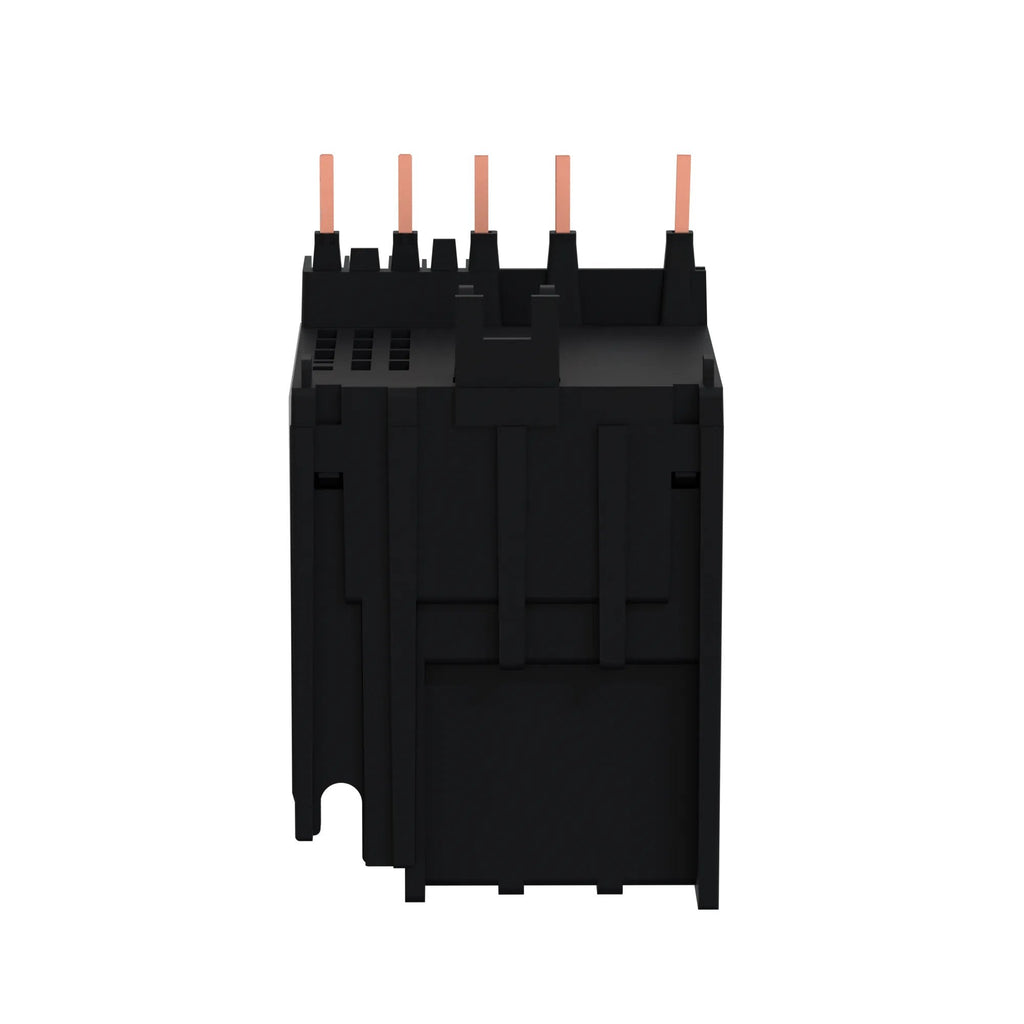

LR2K0305 is a Telemecanique TeSys K differential thermal overload relay designed for motor protection with an adjustable current range of 0.54 to 0.8 amperes.This relay features a 3-pole design, rated operational voltage up to 690V, and complies with Class 10A thermal overload standards for reliable motor protection. It includes 1 normally open and 1 normally closed auxiliary contact, phase failure sensitivity, and supports mounting on plates or rails with specific accessories. The device offers a rated impulse withstand voltage of 6 kV and an IP2X enclosure rating.

• Amperage Rating: 0.54 to 0.8 A
• Poles: 3
• Rated Operational Voltage: Up to 690 V AC
• Thermal Overload Class: 10A IEC 60947-4-1
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Type: Plate or Rail with accessories
• Rated Impulse Withstand Voltage: 6 kV
• Phase Failure Sensitivity: Yes
• Enclosure Type: IP2X
• Compatible with contactors: LP4K, LC1K, LP1K, LC7K
• Control Type: Manual or automatic reset
• Frequency Range: Up to 400 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LR2K0305
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys K
• Type : LR2K
• Relay Style : Solid State
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 0.8
• Amperage Minimum : 0.54

Product Data

• UPC : 038911023039
• GTIN : 03389110230390
• Country of Origin : Czechia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.6 in (65 mm) (Height x Width x Depth)
• Weight : 0.342
• Certification : BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, VDE 0660
