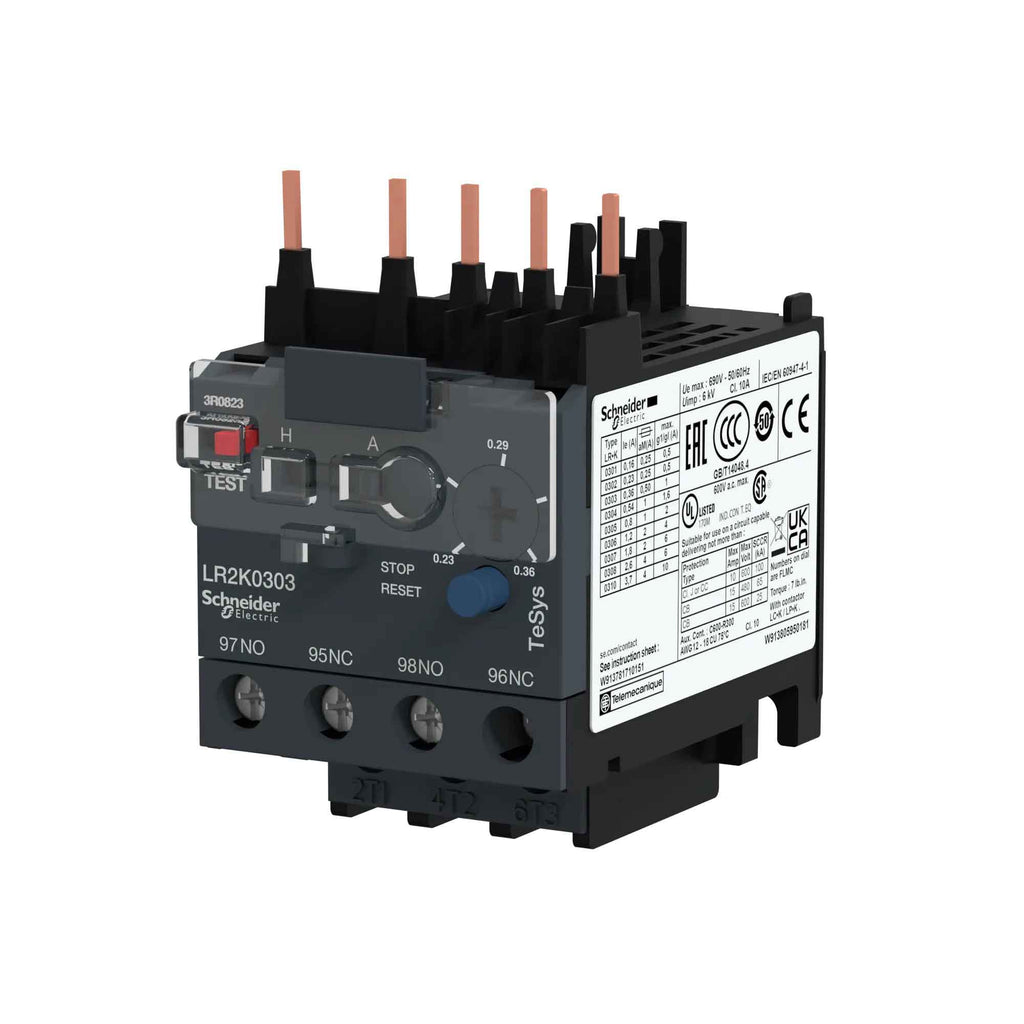

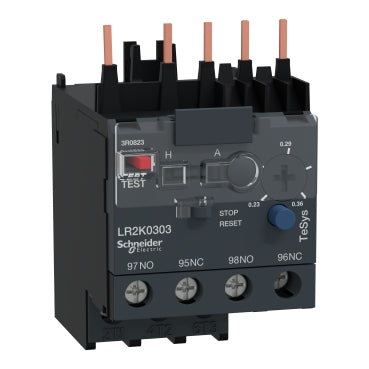

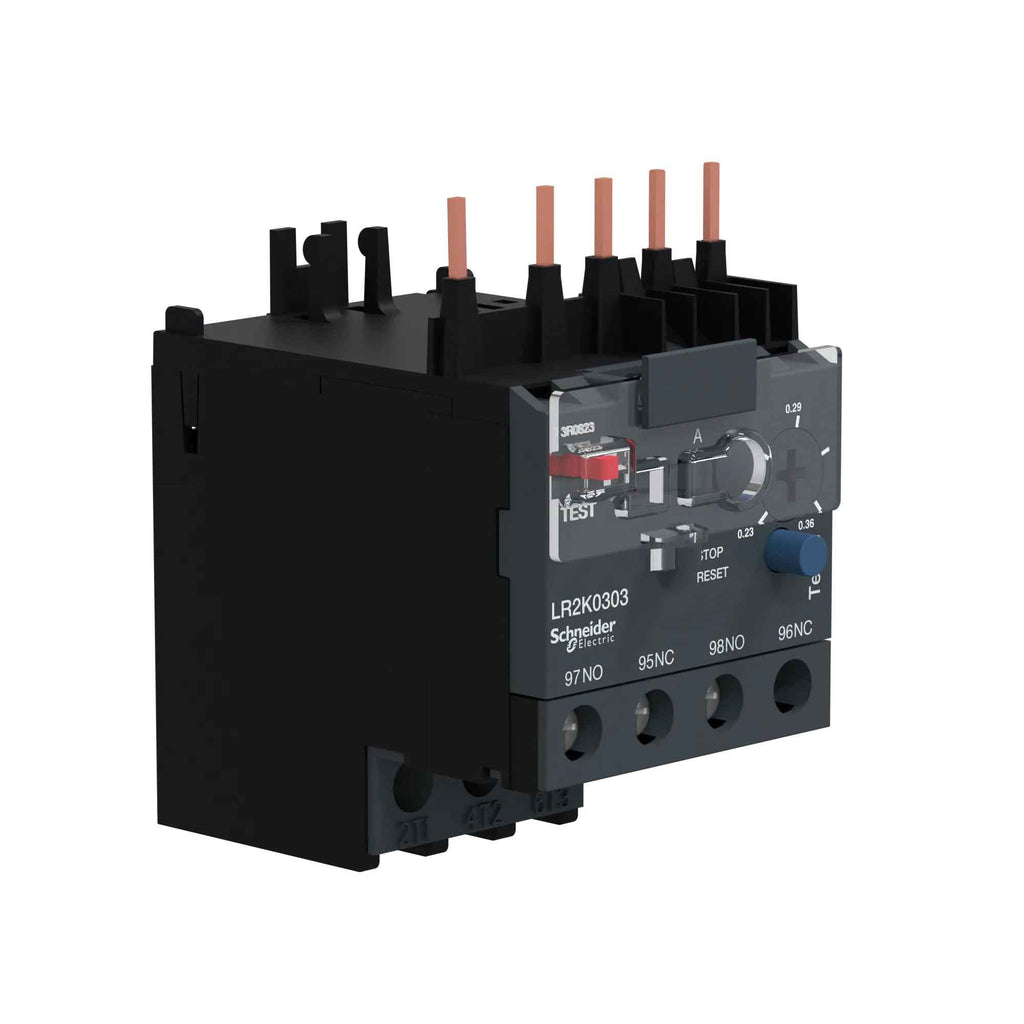

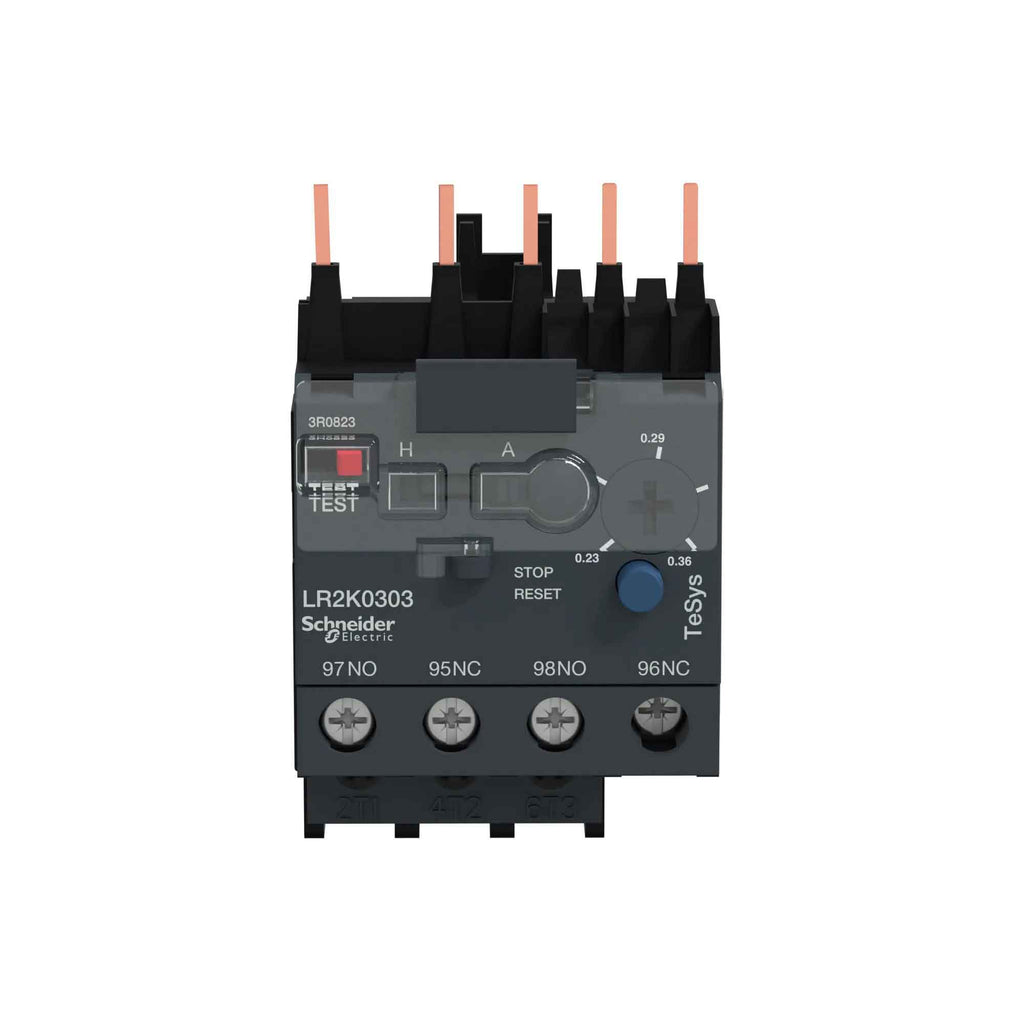

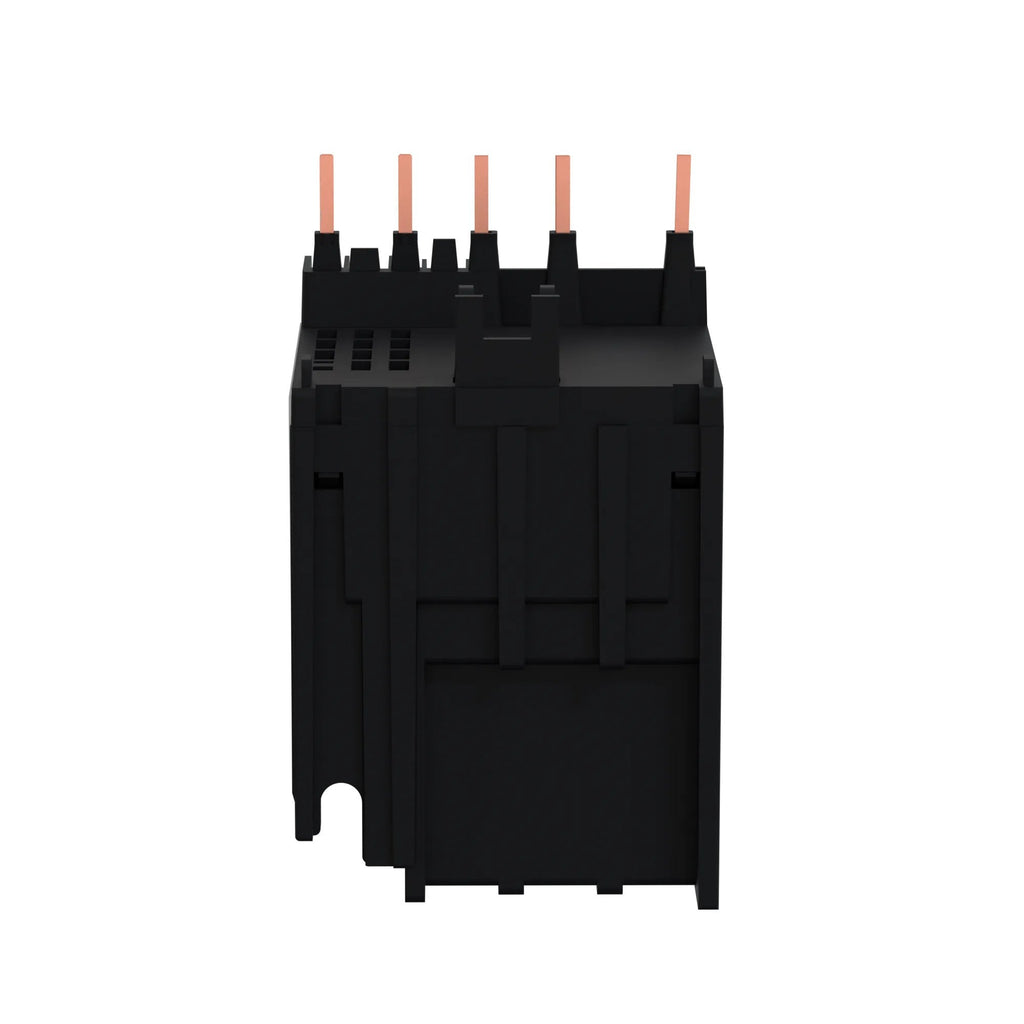

LR2K0303 - Telemecanique TeSys K Thermal Overload Relay 0.23-0.36A 3-Pole 600V Class 10A

LR2K0303

LR2K0303 is a Telemecanique TeSys K series thermal overload relay designed for motor protection with a current range of 0.23 to 0.36 amperes.This 3-pole overload relay features a class 10A tripping characteristic, phase failure sensitivity, and can be reset manually or automatically. It is suitable for use with 6 to 12A LC1K and LC2K contactors and supports motor protection up to 0.09 kW at 400V. The relay complies with IEC 60947 standards and is UL listed and CSA certified.

Key Specifications
• Current range: 0.23 - 0.36 A
• Voltage rating: up to 600 V AC
• Poles: 3
• Tripping class: 10A
• Mounting type: Panel or contactor mounting (TeSys K compatible)
• Reset type: Manual or automatic
• Phase failure and unbalance protection
• Standards: IEC 60947, UL Listed, CSA Certified, RoHS Compliant
• Weight: approx. 0.32 lb (0.158 kg)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LR2K0303
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys K
• Type : LR2K
• Relay Style : Solid State
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 0.36
• Amperage Minimum : 0.23



Product Data

• UPC : 038911023037
• GTIN : 03389110230376
• Country of Origin : Czechia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.6 in (65 mm) (Height x Width x Depth)
• Weight : 0.344
• Certification : BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, VDE 0660
