Product Info
- Manufacturer:Telemecanique
- Sub-Category:Overload Relay
Description

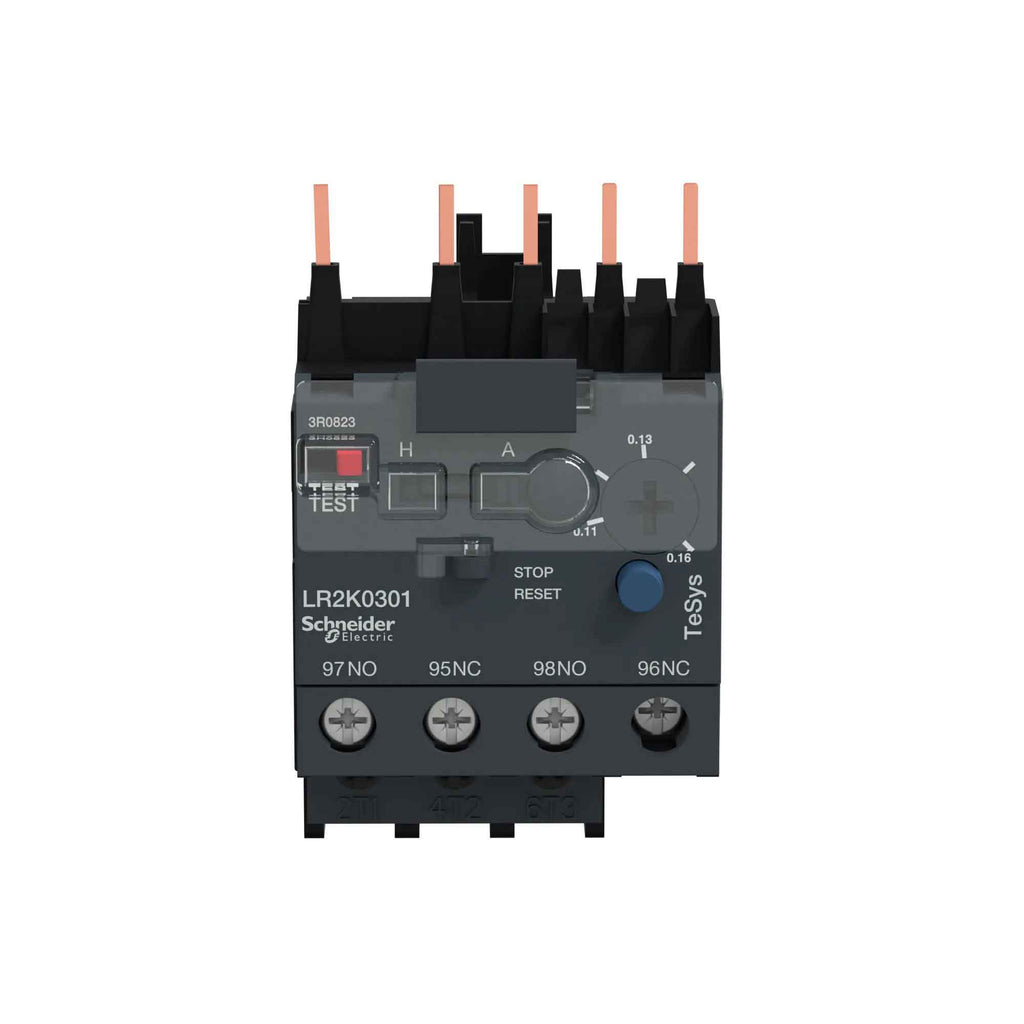

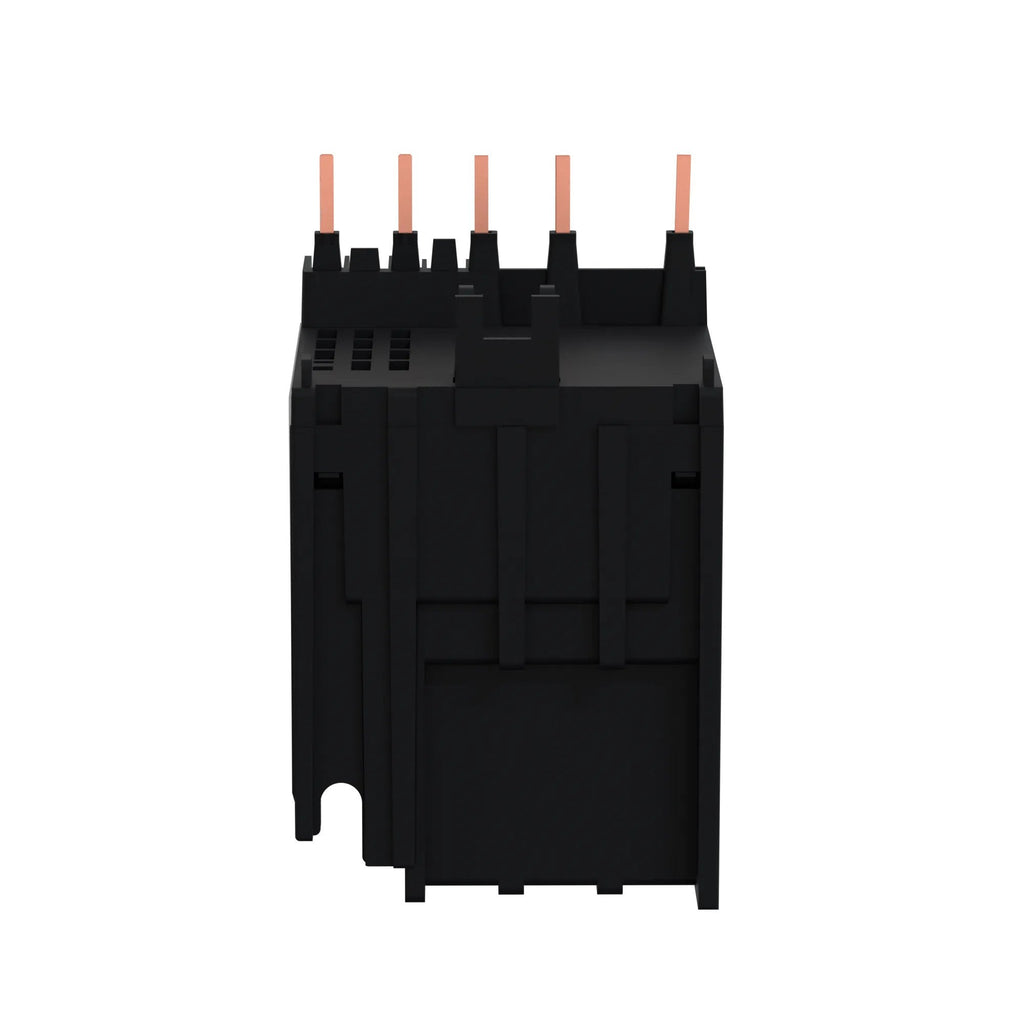

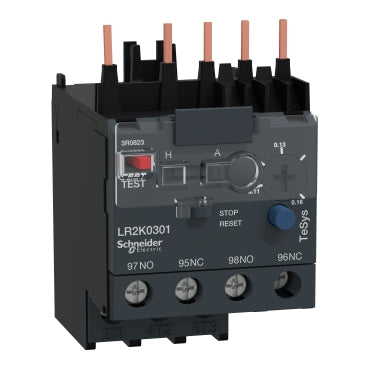

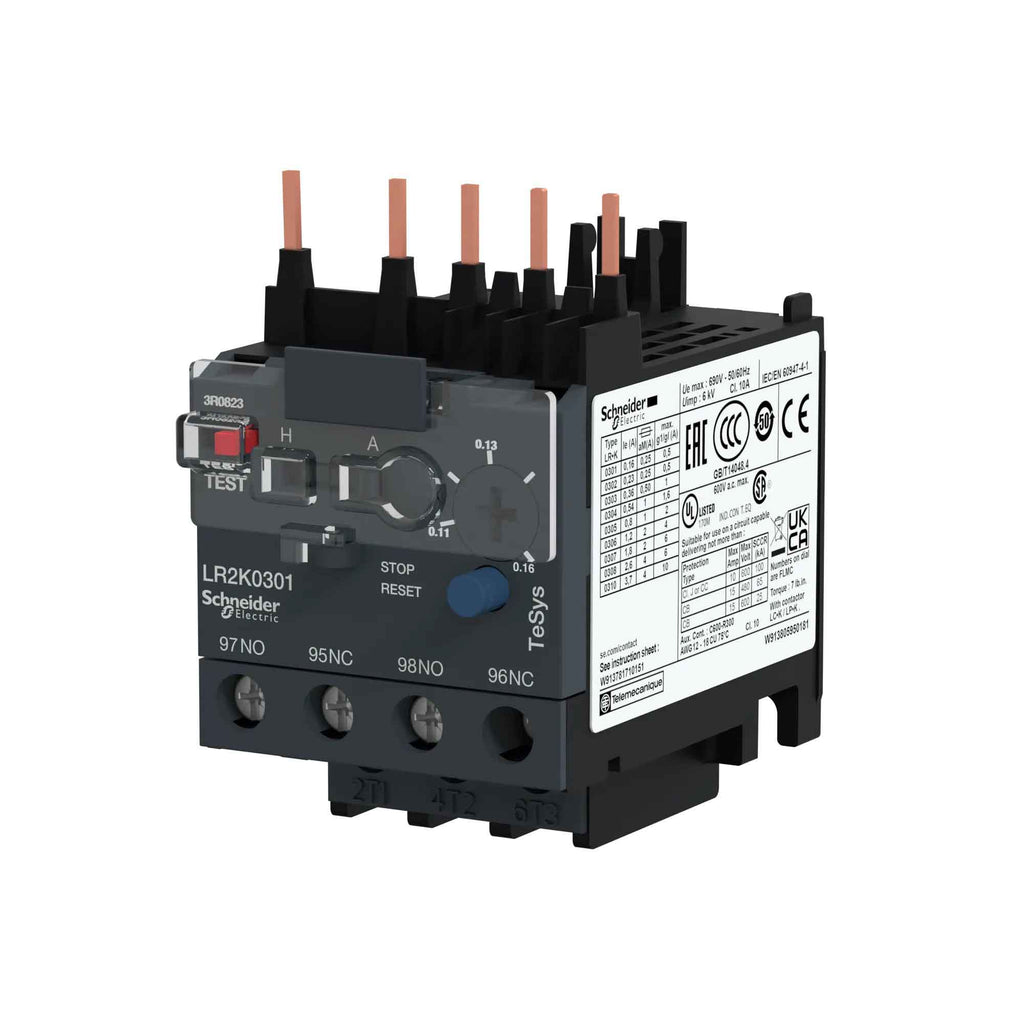

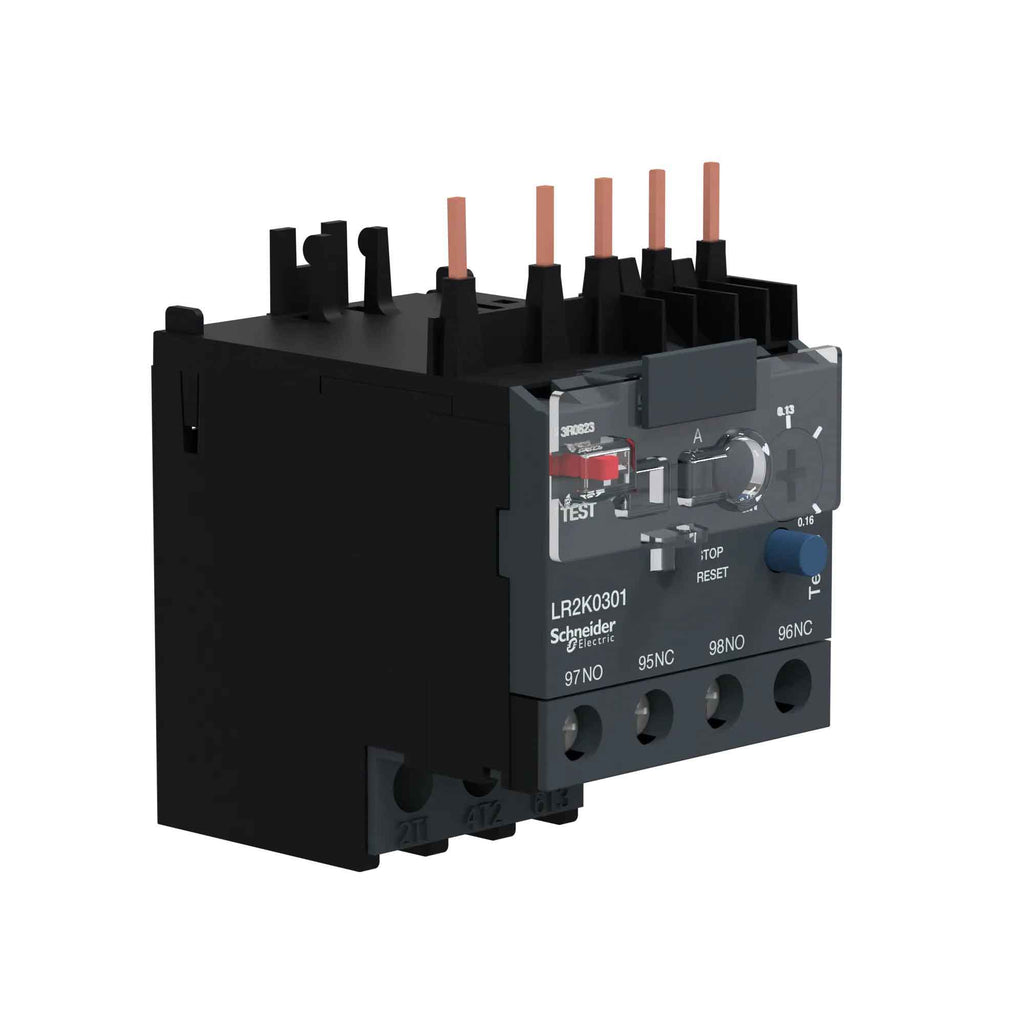

LR2K0301
LR2K0301 is a Telemecanique TeSys K series thermal overload relay designed to protect motors from overload conditions with a current range of 0.11 to 0.16 amps and a tripping class 10A.
This differential thermal overload relay features a 3-pole design suitable for use with motor starters such as LC1K and LC2K contactors. It operates up to 600 volts and includes phase unbalance protection. The relay mounts under the contactor and includes auxiliary contacts with 1 normally open (NO) and 1 normally closed (NC) configuration for control circuit integration.
- Manufacturer: Telemecanique (Schneider Electric)
- Series: TeSys K
- Type: Thermal Overload Relay
- Current Range: 0.11 - 0.16 A
- Tripping Class: 10A
- Poles: 3
- Voltage Rating: 600 V
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting: Under Contactor
- Compatible with: LP4K, LC1K, LP1K, LC7K contactors
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LR2K0301
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : TeSys K
- Type : LR2K
- Relay Style : Solid State
- Aux Contacts : 1NO/1NC
- Amperage Maximum : 0.16
- Amperage Minimum : 0.1
Product Data
- UPC : 038911023035
- GTIN : 03389110230352
- Country of Origin : Czechia
- Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.6 in (65 mm) (Height x Width x Depth)
- Weight : 0.347
- Certification : BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, VDE 0660
