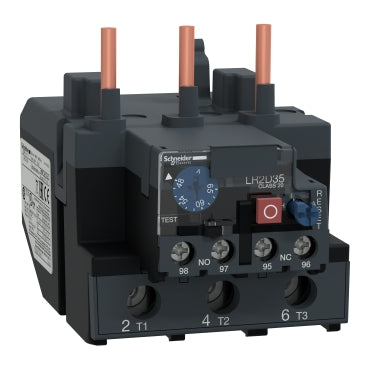

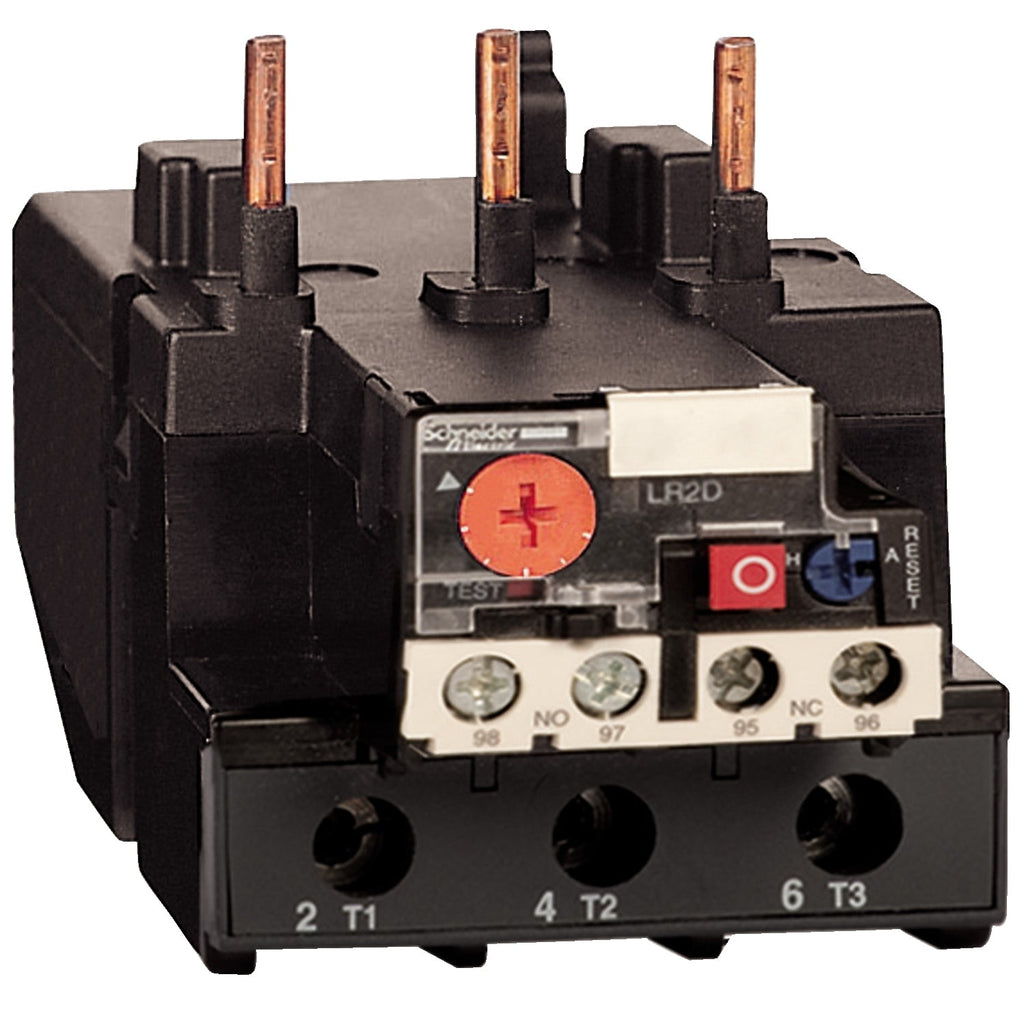

LR2D3559 - Telemecanique TeSys D Thermal Overload Relay 48-65A 600V 3-Pole

LR2D3559

LR2D3559 is a Telemecanique TeSys D thermal overload relay designed to protect motors and AC circuits against overload conditions. This 3-pole relay features a thermal range of 48-65A at 600V and is compatible with LC1D50-LC1D95 contactors, making it ideal for motor control applications in industrial and HVAC environments. The relay incorporates bi-metallic thermal protection technology with phase unbalance detection and automatic reset capability.

• Part Number: LR2D3559
• Manufacturer: Telemecanique
• Family: TeSys D
• Type: LR2D
• Amperage Range: 48-65A
• Voltage Rating: 600V
• Poles: 3-Pole
• Trip Class: 20
• Rated Impulse Withstand Voltage: 6 kV
• Reset Type: Automatic
• Phase Loss Sensitivity: Yes
• Screw Clamp Terminals: 0.01-0.05 in² (4-35 mm² flexible)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LR2D3559
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LR2D
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 65
• Amperage Minimum : 48

Product Data

• UPC : 038911022911
• GTIN : 03389110229110
• Country of Origin : France
• Dimensions : 3.9 in (100 mm) x 3.0 in (75 mm) x 4.8 in (121 mm) (Height x Width x Depth)
• Weight : 1.157
• Certification : CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
