Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
LPSRK100SP

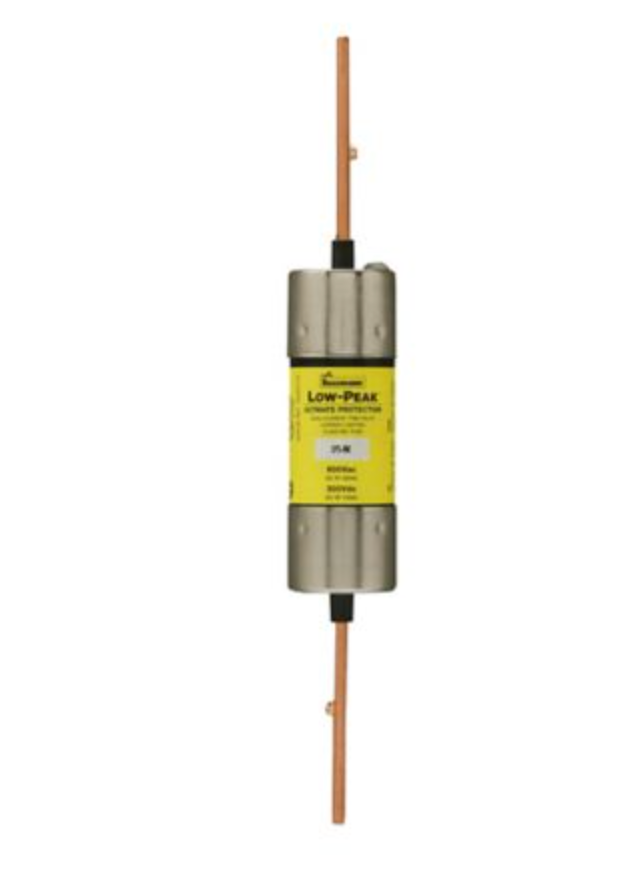

LPS-RK-100SP is a Bussmann Class RK1 time delay dual element fuse rated for 100 amps and 600 volts AC.This fuse features current limiting, a non-indicating design, and blade end connections for reliable circuit protection.
- Amperage Rating: 100 A
- Voltage Rating: 600 Vac, 300 Vdc
- Interrupt Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
- Fuse Type: Time delay, current limiting
- Number of Elements: Dual
- Connection Type: Blade end x blade end
- Class: RK1
- Physical Size: 1.11 in diameter x 7.88 in length
- Fuse Indicator: Non-indicating
- Special Features: Electrically isolated end cap
- Certifications: CE Marked, RoHS Compliant
Specifications
- Part Number: LPSRK100SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Low-Peak
- Voltage : 600
- AIC rating : 300kA@600V
- Diameter : 1.34
- Class Rating : RK1
- Barrels : 1
Product Data
- Weight : 0.3
