Product Info
- Manufacturer:Bussmann
Description

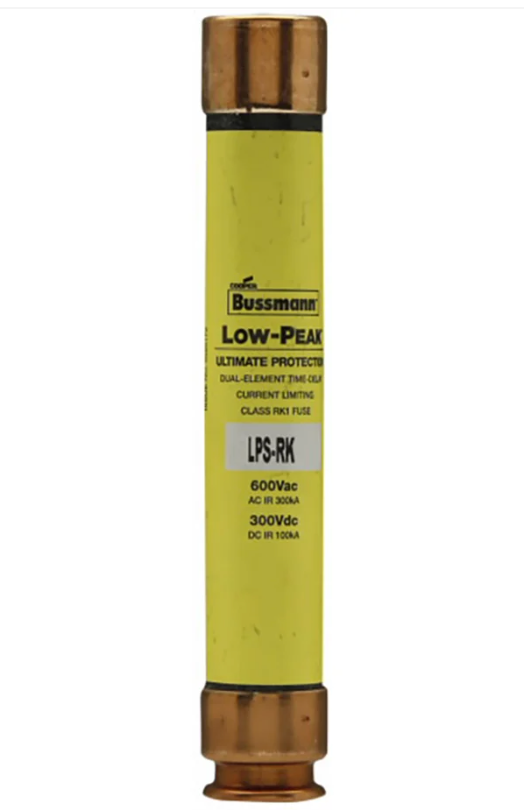

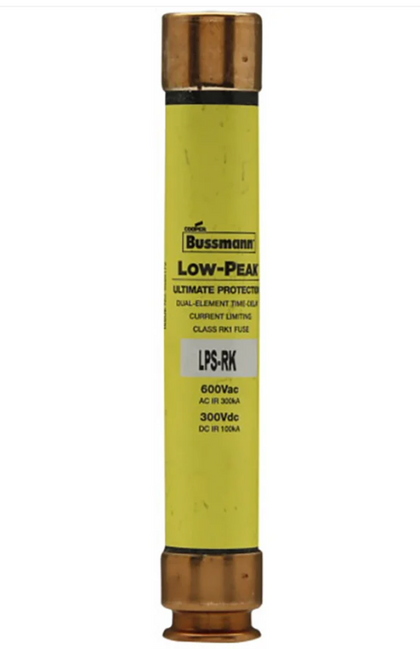

LPSRK0.1SP
LPSRK0.1SP is a Bussmann low-peak, dual element, time-delay, current-limiting fuse designed for ultimate circuit protection in demanding applications.
This non-indicating, ferrule-end cartridge fuse offers fast short-circuit protection and time-delay performance, reducing nuisance tripping on motor starts and inrush currents. It is part of the LPS-RK series, known for reliability and compliance with major safety standards.
-
Key Specifications
- Amperage: 0.1A (1/10A)
- Voltage: 600VAC/300VDC
- Poles: Single
- Mounting Type: Holder (cartridge body)
- Interrupt Rating: 300kA at 600VAC, 100kA at 300VDC
- Series/Frame: LPS-RK, Class RK1
- Trip Unit: Dual element, time-delay
- Certifications: UL, CSA, CE listed
- Terminal Type: Ferrule end
- Body Size: 0.81" diameter x 5" length
- Material: Melamine
- Response Time: 8 seconds at 500% of rating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LPSRK0.1SP
- Brand : Bussmann
Product Data
- Weight : 0.08
