- Manufacturer:Littelfuse
Description
LPSM003

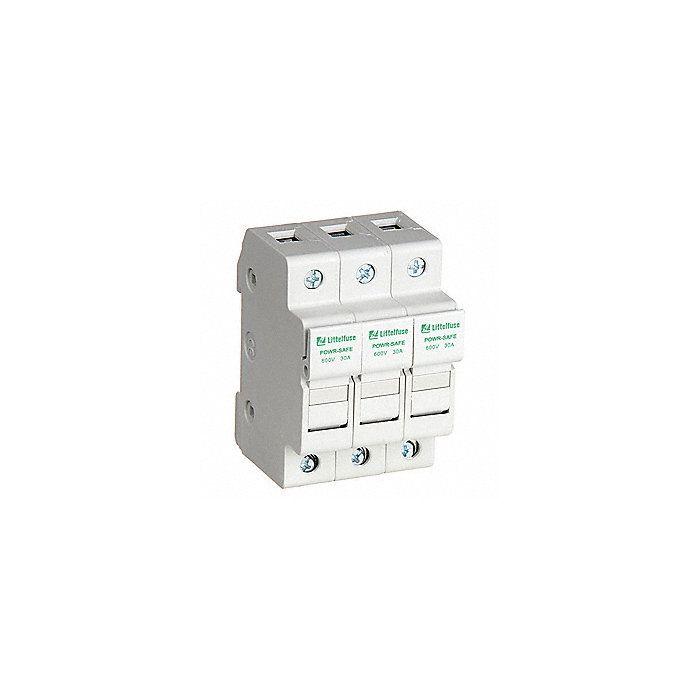

LPSM003 is a Littelfuse 3-pole midget fuse holder rated for 30 amps and 600 volts AC, designed for DIN rail mounting.LPSM003 features a dead front, non-indicating design with a tough polyamide body, providing finger-safe protection to IP20 standards. It supports quick fuse changes without additional tools and is compatible with Class CC and midget-style fuses. The holder is UL, CSA, and CE certified and suitable for industrial and commercial electrical applications.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 600 V AC / 600 V DC
- Poles: 3
- Mounting Type: 35 mm DIN Rail
- Fuse Type: Midget (10 x 38 mm)
- Body Material: Polyamide (Thermoplastic)
- Non-Indicating (No trip indicator)
- Interrupt Rating: Compatible with Class CC and Midget fuses
- Safety: Dead front, finger-safe to IP20
- Certifications: UL, CSA, CE
- Connection Type: Pressure plate terminals
Specifications
- Part Number: LPSM003
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Family : LPSM Series - POWR-SAFE Dead Front Fuse Holder
- Type : LPSM Series - POWR-SAFE Dead Front Fuse Holder
Product Data
- UPC : 079458029123
- GTIN : 00079458029123
- Weight : 0.08
