LPS-RK-9SP - Eaton 9A 600V AC 300V DC Class RK1 Time Delay Dual Element Fuse

LPS-RK-9SP

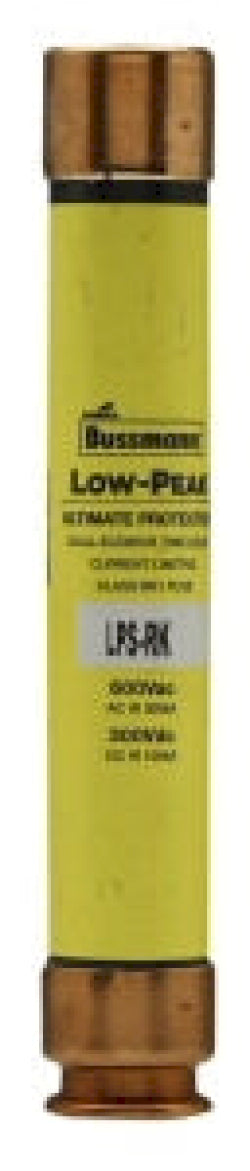

LPS-RK-9SP is an Eaton Bussmann series Class RK1 time-delay, dual-element, current-limiting fuse rated for 9 amperes and designed for electrical circuit protection.This fuse features a 600 Vac and 300 Vdc voltage rating with an interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc. It has a non-indicating ferrule end connection and provides a 10-second response time at 500% overload. The fuse is electrically isolated at the end cap and complies with CE marking standards.

Key Specifications
• Amperage Rating: 9 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
• Fuse Type: Time delay, current-limiting
• Number of Elements: Dual
• Class: RK1
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Response Time: 10 seconds at 500% overload
• Dimensions: 0.81 in diameter x 5 in length
• Certifications: CE Marked
• Special Features: Electrically isolated end cap
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPS-RK-9SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 9
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712548298
• GTIN : 00051712548298
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.17
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
