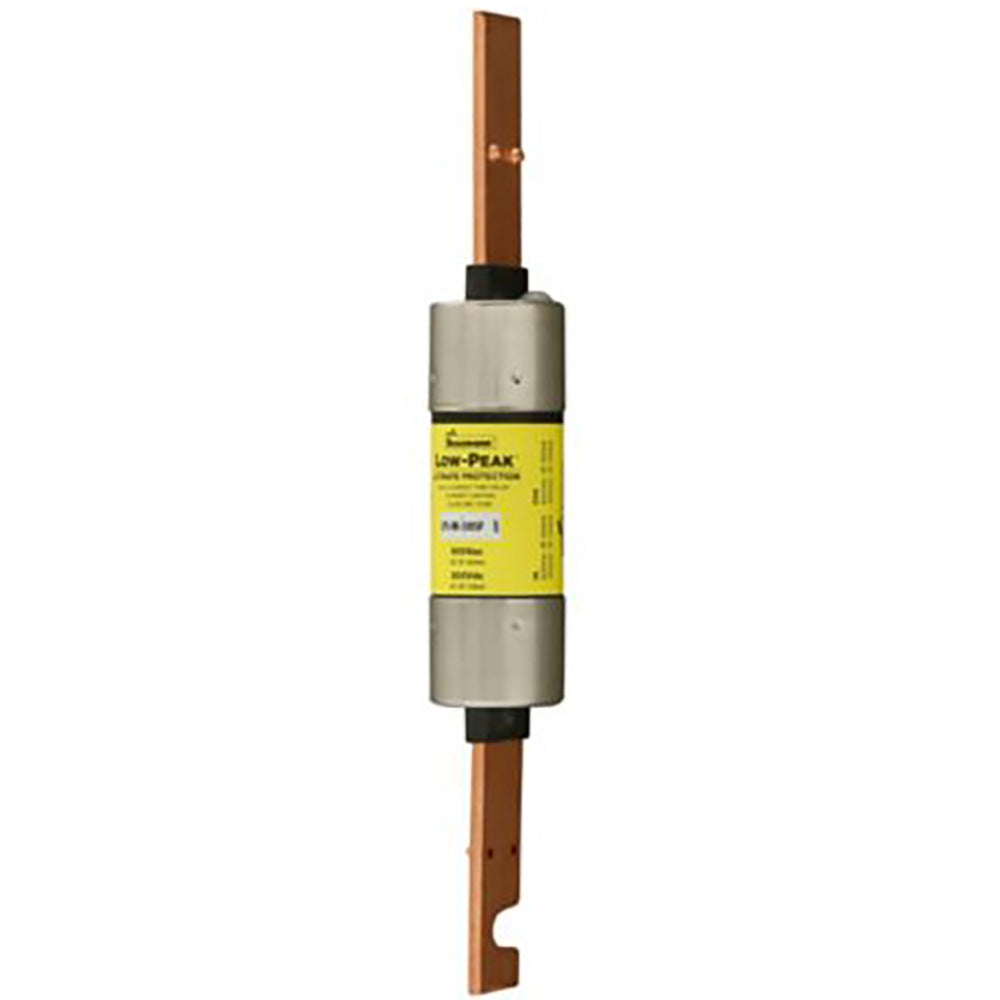

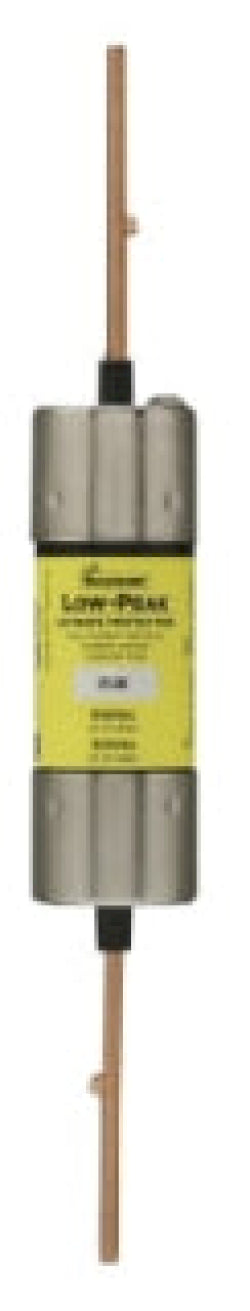

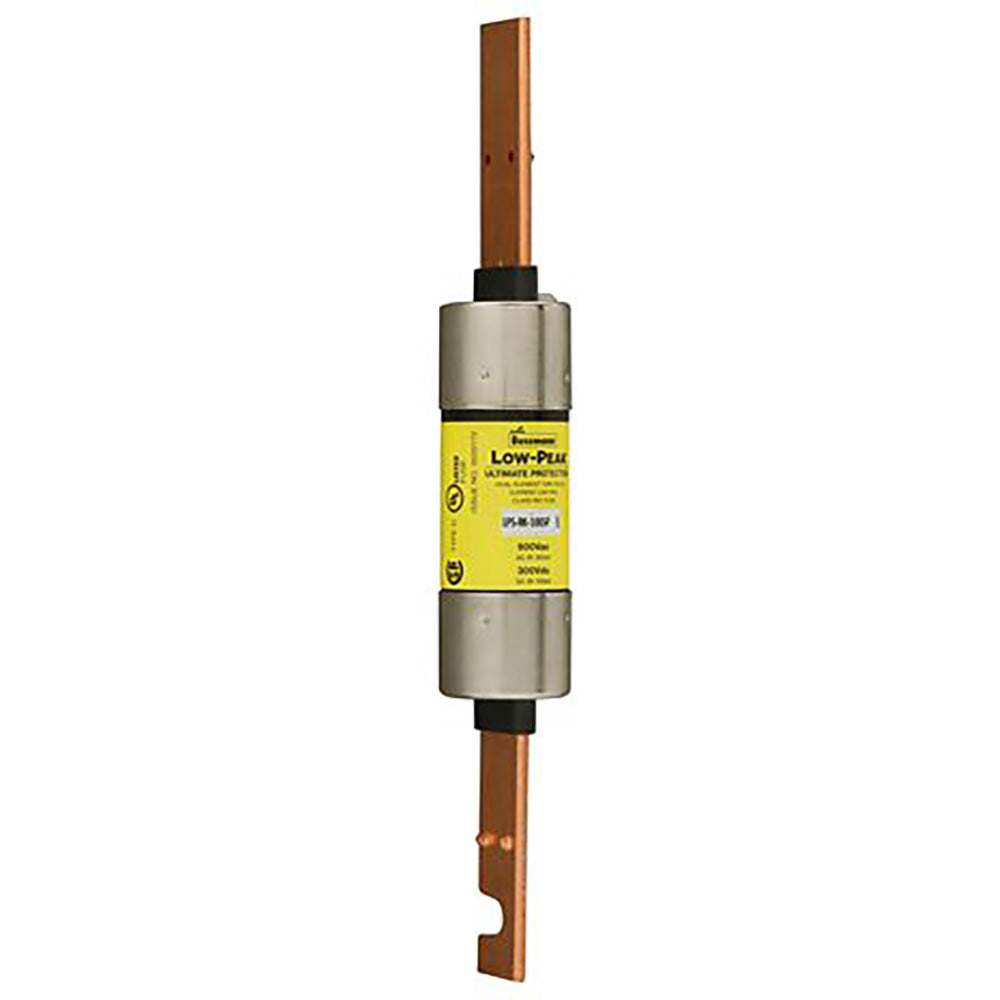

LPS-RK-90SP - Eaton Bussmann 90A 600Vac/300Vdc Time Delay Dual-Element Class RK1 Fuse

LPS-RK-90SP

LPS-RK-90SP is a 90 amp time-delay, dual-element, current-limiting fuse from Eaton Bussmann's Class RK1 series designed for reliable circuit protection.This fuse features a voltage rating of 600 Vac and 300 Vdc, with an interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc. It has blade end x blade end connections, is non-indicating, and includes an electrically isolated end cap for safety. The fuse is UL Listed, CSA Certified, CE Marked, and RoHS Compliant, suitable for feeder and branch circuits, motors, transformers, and general purpose applications.

Key Specifications
• Amperage Rating: 90 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupt Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Fuse Type: Time Delay, Dual Element, Current Limiting
• Class: RK1
• Connection: Blade end x blade end
• Fuse Indicator: Non-indicating
• Physical Size: 1.11 in x 7.88 in
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Special Features: Electrically isolated end cap

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-90SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 90
• AIC rating : 300kA@600V
• Diameter : 1.11
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548441
• GTIN : 00051712548441
• Country of Origin : Mexico
• Dimensions : 7.88 in x 1.11 in x 1.11 in (Length/Depth x Height x Width)
• Weight : 4
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
