Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

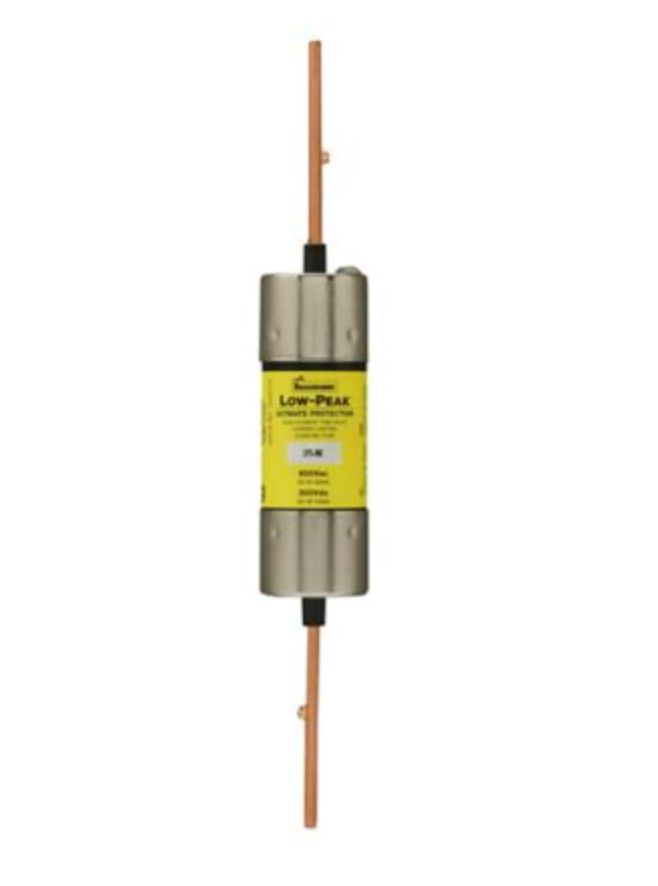

LPS-RK-90
LPS-RK-90SP is a Eaton Bussmann series Class RK1 fuse designed for reliable circuit protection with a 90 ampere rating and dual-element time-delay characteristics.This fuse features a 600 Vac and 300 Vdc voltage rating with a high interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc. It is a current-limiting, dual-element fuse with blade end connections and non-indicating design, suitable for feeder, branch circuits, motors, transformers, and general purpose applications. The fuse is CE marked and RoHS compliant, providing fast short-circuit protection and reducing inventory needs with consistent ampacity ratios.
- Key Specifications
- Amperage Rating: 90 A
- Voltage Rating: 600 Vac / 300 Vdc
- Interrupting Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
- Fuse Type: Time-delay, dual-element, current-limiting
- Class: RK1
- Connection: Blade end x blade end
- Fuse Indicator: Non-indicating
- Compliance: CE Marked, RoHS Compliant
- Physical Size: 7.88 in length, 1.11 in width and height
- Special Features: Electrically isolated end cap
Specifications
- Part Number: LPS-RK-90
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 90
- AIC rating : 300kA@600V
- Diameter : 1.11
- Class Rating : RK1
- Barrels : 1
Product Data
- Weight : 5.19
