LPS-RK-8SPI - Eaton 8A 600V Dual Element Time Delay Class RK1 Fuse

LPS-RK-8SPI

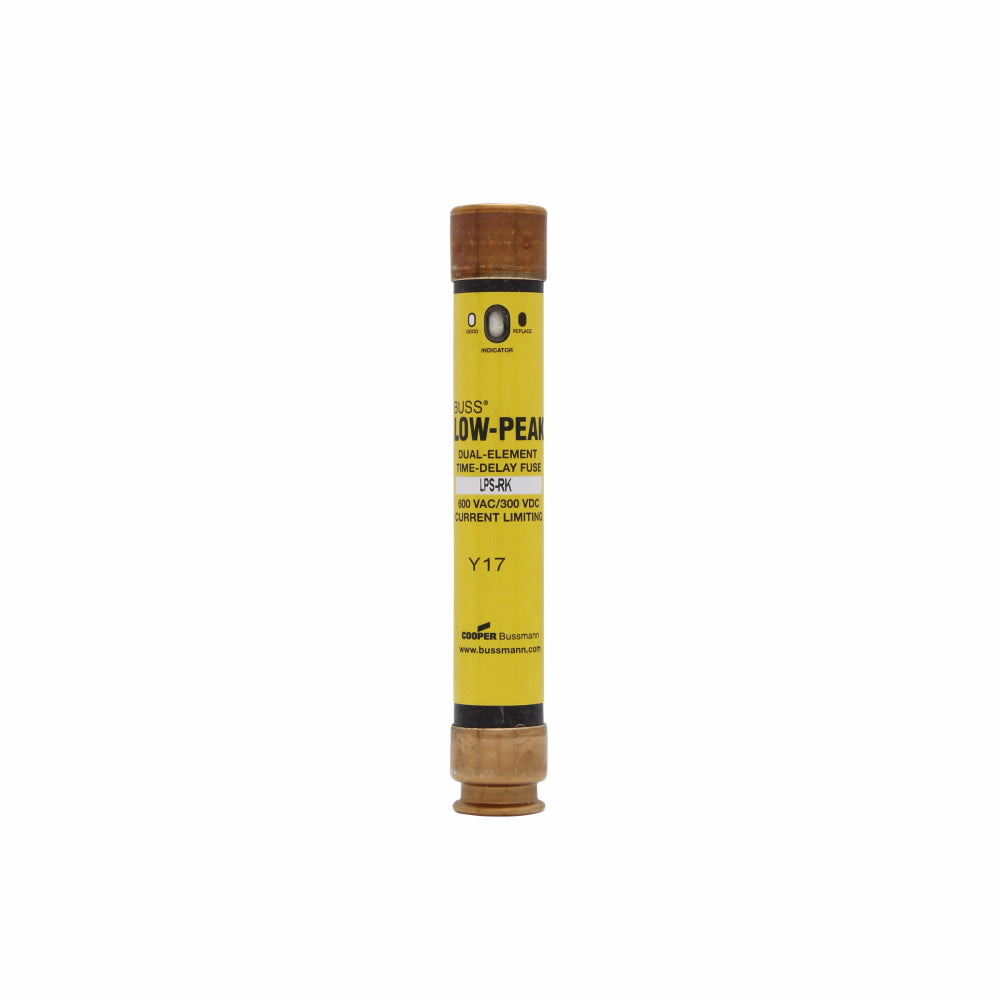

LPS-RK-8SPI is an Eaton Bussmann Series Class RK1 fuse designed for reliable circuit protection with time-delay and current-limiting features.This 8 amp fuse features a dual-element design providing time-delay operation to withstand temporary overloads and current limiting to reduce let-through energy during short circuits. It is rated for 600 VAC and 300 VDC operation with a high interrupt rating of up to 300 kAIC at 600 VAC and 100 kAIC at 300 VDC. The fuse is non-indicating and complies with CE marking standards.

• Amperage Rating: 8 A
• Voltage Rating: 600 VAC, 300 VDC
• Class: RK1
• Fuse Type: Time Delay / Slow Blow
• Interrupt Rating: 300 kAIC at 600 VAC, 100 kAIC at 300 VDC
• Dual Element Design
• Fuse Indicator: Non-indicating
• Response Time: 10 seconds at 500% overload
• Dimensions: 5 in length, 0.81 in width and height
• Compliance: CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-8SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 8
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712628464
• GTIN : 00051712628464
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
