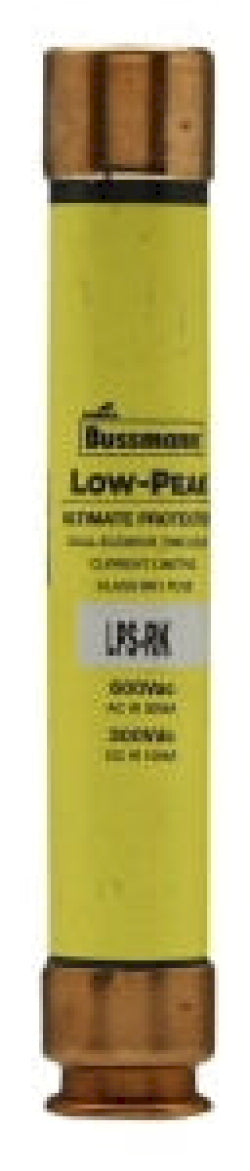

LPS-RK-8SP - Eaton Bussmann 8A 600V AC Class RK1 Time Delay Fuse

LPS-RK-8SP

LPS-RK-8SP is an Eaton Bussmann Class RK1 time-delay fuse rated for 8 amperes and 600 volts AC, designed for reliable circuit protection.This fuse features a dual-element, current-limiting design with a non-indicating ferrule end connection. It has a high interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc, suitable for residential, commercial, and industrial applications. The fuse provides a 10-second response time at 500% overload and is CE marked for compliance.

Key Specifications
• Amperage Rating: 8 A
• Voltage Rating: 600 Vac / 300 Vdc
• Class: RK1
• Fuse Type: Time Delay, Dual Element, Current Limiting
• Interrupting Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Response Time: 10 seconds at 500% overload
• Dimensions: 0.81 in diameter x 5 in length
• Certifications: CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-8SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 8
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548281
• GTIN : 00051712548281
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.17
• Certification : Ul Listed Csa Certified Ce Marked
