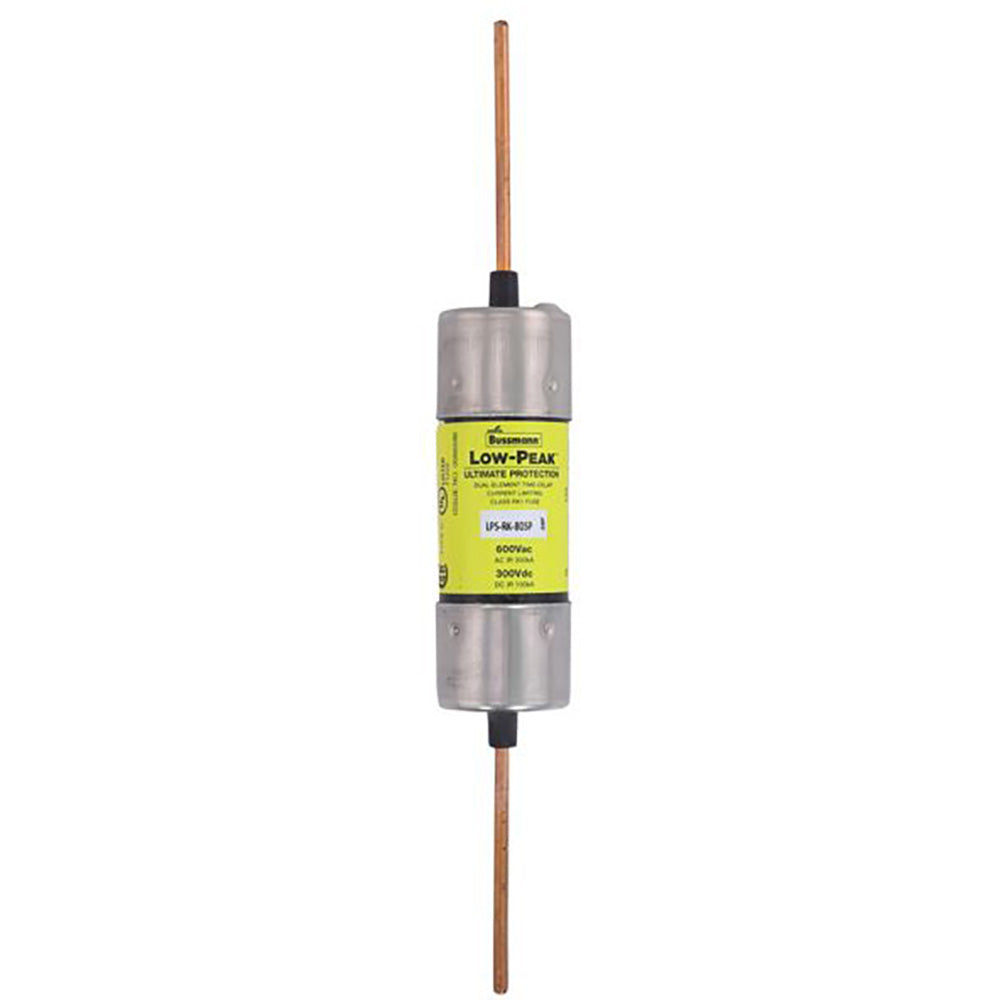

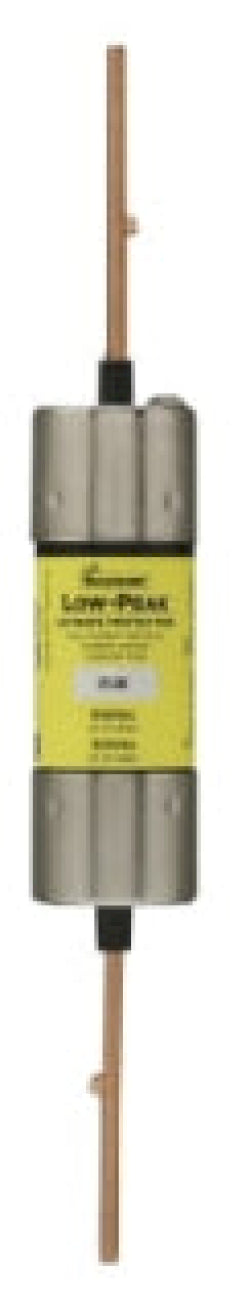

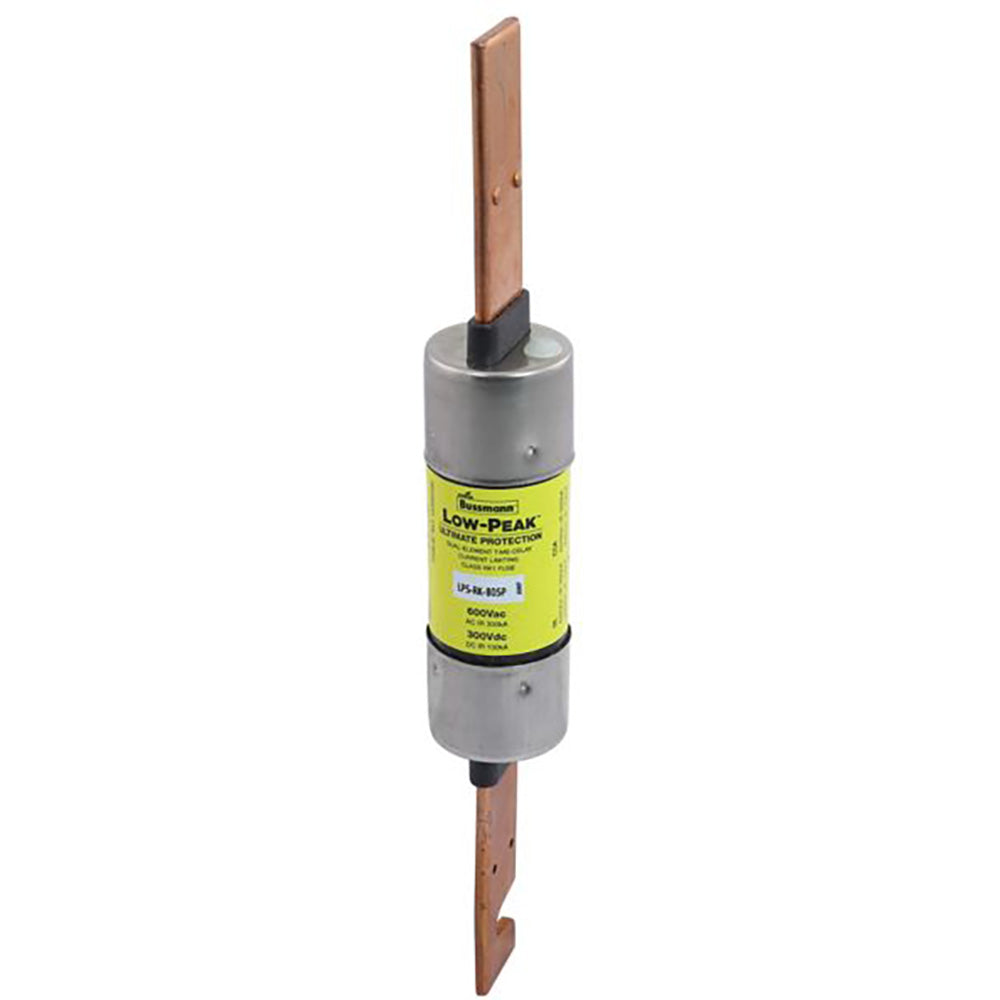

LPS-RK-80SP - Eaton Bussmann 80 Amp 600 Volt AC Class RK1 Dual Element Time-Delay Fuse

LPS-RK-80SP

LPS-RK-80SP is an Eaton Bussmann Class RK1 dual element, time-delay fuse designed for reliable circuit protection.This 80 amp fuse features a 600 VAC and 300 VDC voltage rating, current-limiting capability, and a high interrupt rating of 300 kA at 600 VAC. It is a non-indicating, rejection style fuse with a physical size of approximately 1.11" x 7.88". The fuse provides dual element time-delay protection, suitable for applications requiring temporary overload tolerance and fast short-circuit interruption.

Key Specifications
• Amperage: 80 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: RK1
• Type: Dual Element, Time-Delay
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Physical Size: 1.11" x 7.88"
• Non-Indicating (SP) Version
• Agency Approvals: UL 248-12, cULus Listed, CSA Certified, CE Marked
• Mounting Type: Rejection Style
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPS-RK-80SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 80
• AIC rating : 300kA@600V
• Diameter : 1.11
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712548434
• GTIN : 00051712548434
• Country of Origin : Mexico
• Dimensions : 7.88 in x 1.11 in x 1.11 in (Length/Depth x Height x Width)
• Weight : 4
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
