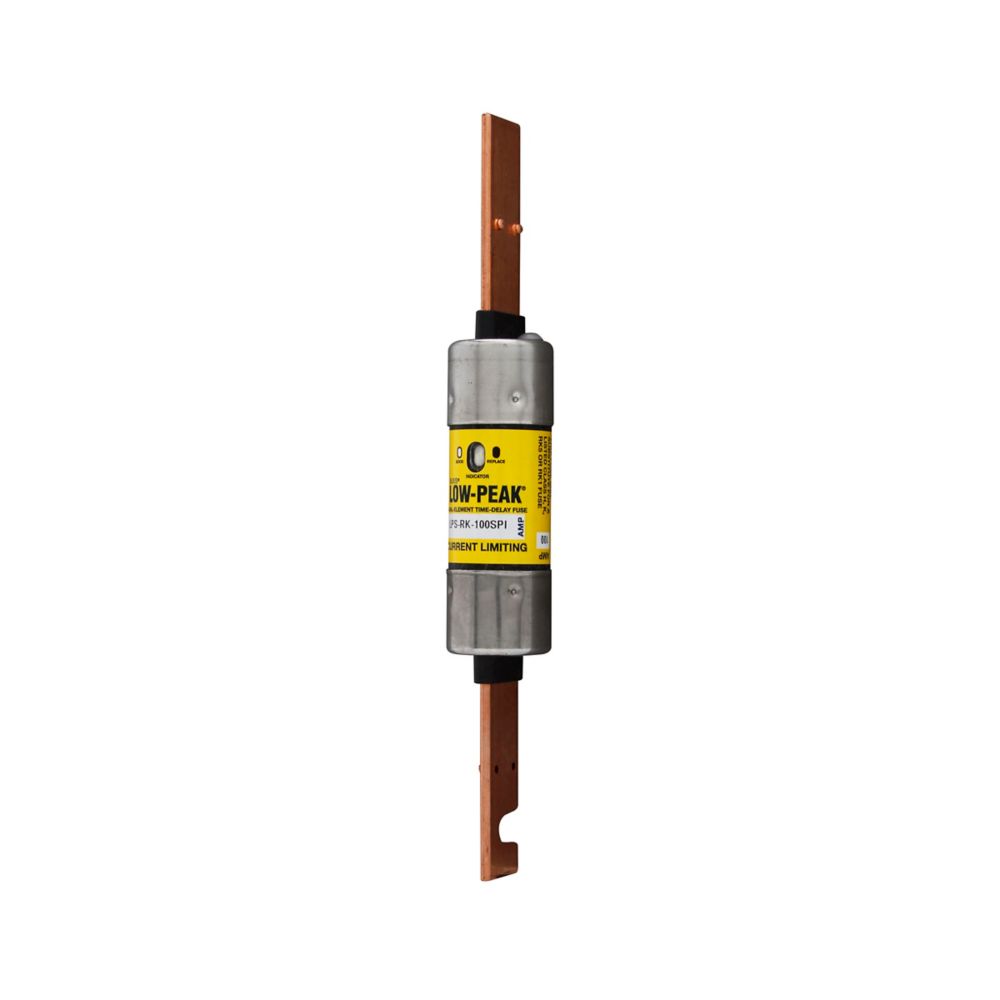

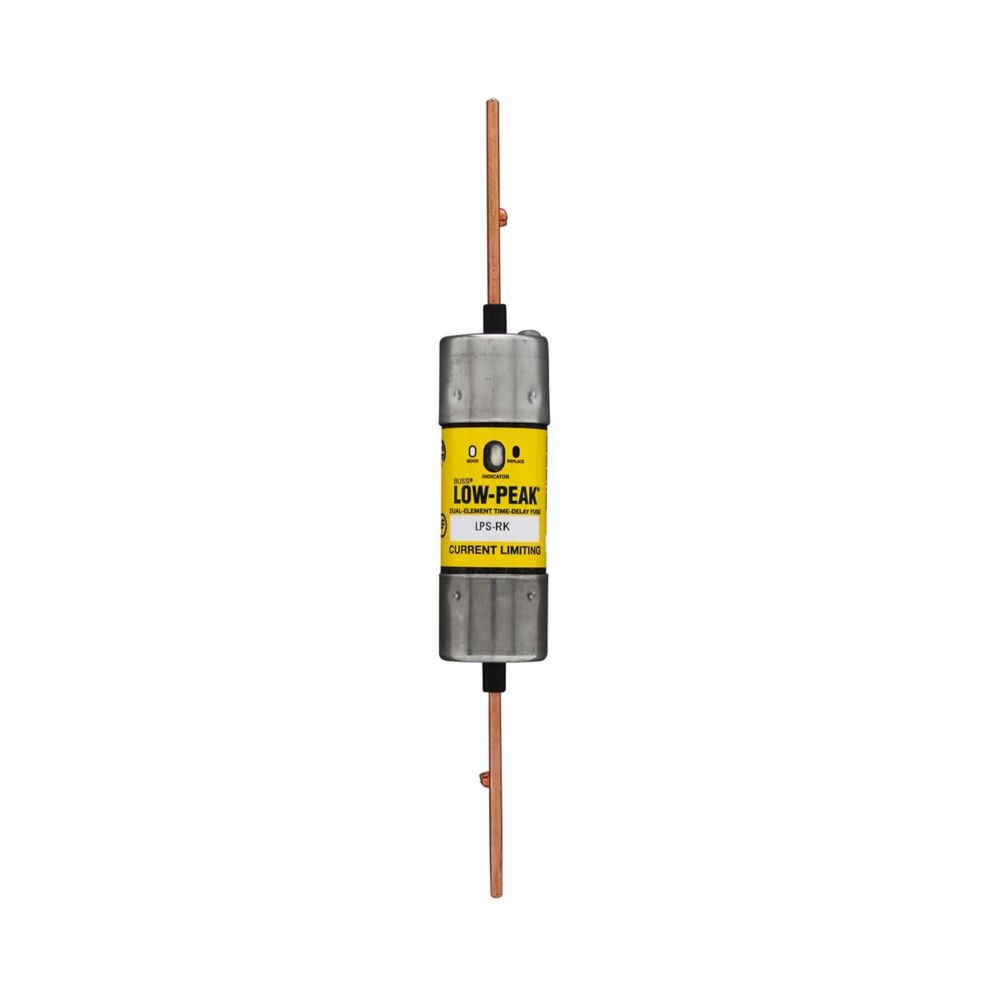

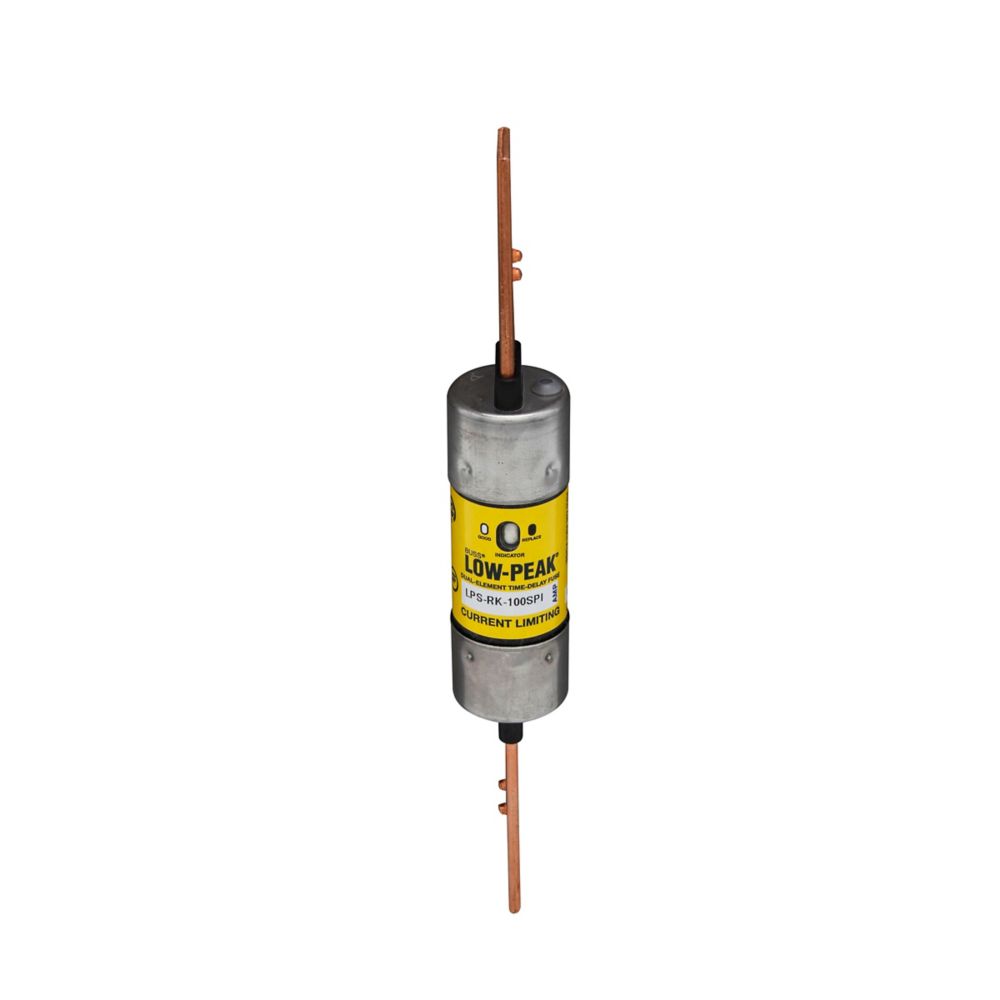

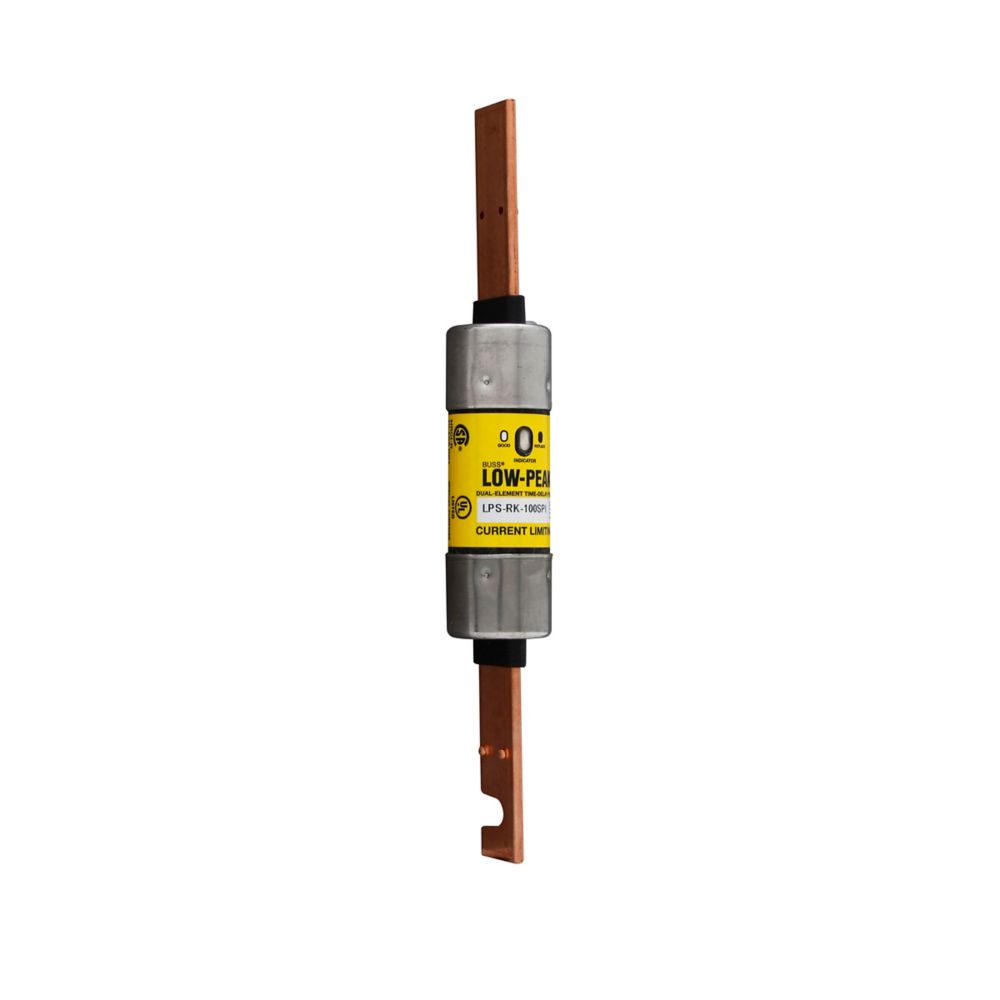

LPS-RK-70SPI - Bussmann, Cooper Bussmann, Eaton 70 Amp 600V AC 300V DC Class RK1 Low-Peak Time-Delay Dual-Element Indicating Fuse

LPS-RK-70SPI

LPS-RK-70SPI is a Class RK1, time-delay, dual-element, current-limiting fuse from Bussmann, Cooper Bussmann, and Eaton, designed for ultimate protection in demanding electrical applications.

This indicating fuse features fast short-circuit protection and time-delay performance, reducing nuisance trips while providing reliable circuit protection. It is suitable for use in a wide range of industrial and commercial environments where high interrupting capacity and robust performance are required.

Key Specifications
• Amperage: 70 A
• Voltage: 600 VAC, 300 VDC (indicating version not DC rated)
• Poles: 1
• Mounting Type: Blade body
• Interrupt Rating: 300 kA RMS Sym. at 600 VAC
• Series/Frame: LPS-RK
• Trip Unit: Dual-element, time-delay (minimum 10 seconds)
• Certifications: cULus Listed, UL 248-12 (Class RK1), CSA C22.2 No. 248.12, CE
• Fuse Type: Low-Peak, current-limiting
• Indicating: Yes
• Physical Size: 7-7/8" L x 1-1/8" dia

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-70SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 70
• AIC rating : 300kA@600V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1

Product Data

• UPC : 051712626538
• GTIN : 00051712626538
• Country of Origin : Mexico
• Dimensions : 7.88 in x 1.11 in x 1.11 in (Length/Depth x Height x Width)
• Weight : 4
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
