Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPS-RK-70SP

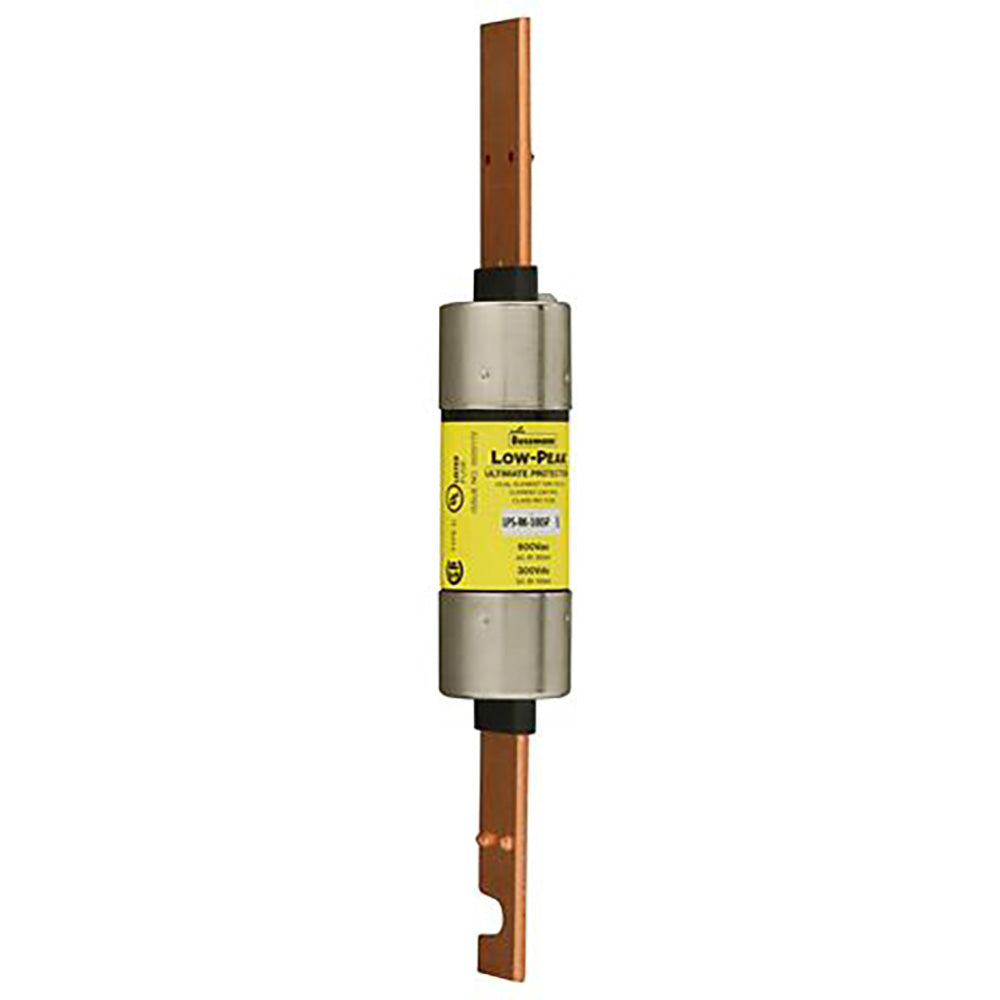

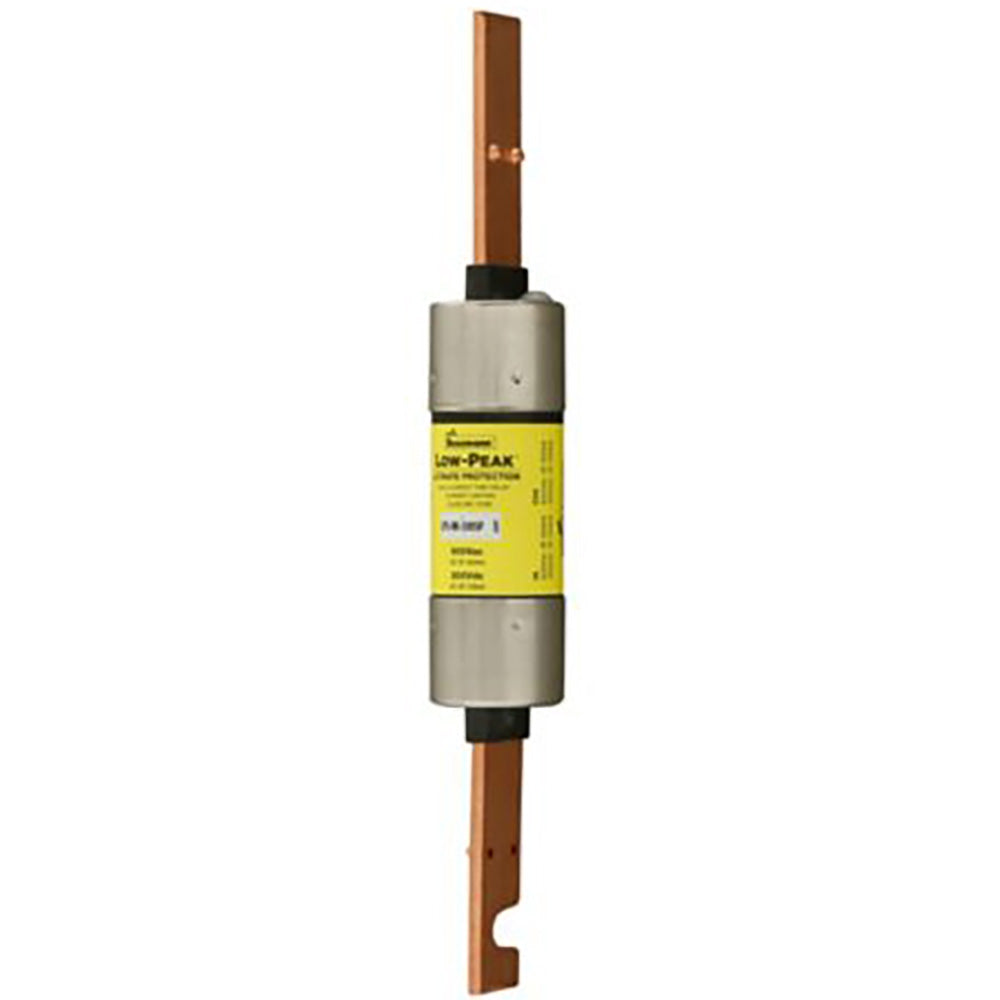

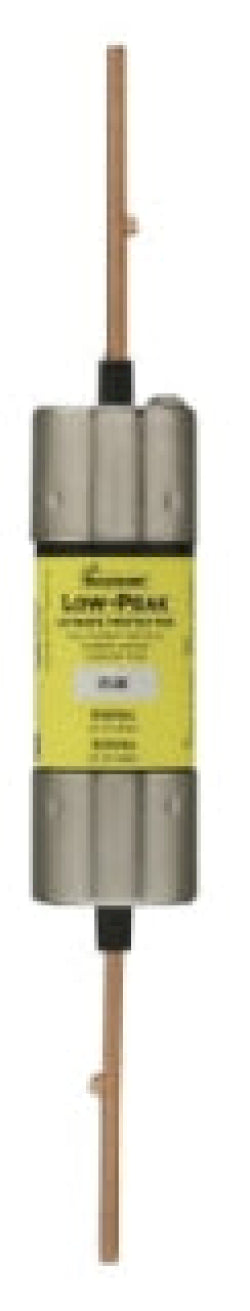

LPS-RK-70SP is a Eaton Bussmann Class RK1 dual element, time-delay current limiting fuse rated for 70 amperes and 600 Vac/300 Vdc operation.
This fuse features a non-indicating design with blade end connections, providing reliable protection with an interrupt rating of 300 kA at 600 Vac and 100 kA at 300 Vdc. It is RoHS compliant and CE marked, suitable for industrial and commercial electrical circuit protection requiring Class RK1 fuses.
- Key Specifications
- Amperage Rating: 70 A
- Voltage Rating: 600 Vac, 300 Vdc
- Interrupt Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
- Fuse Type: Time delay, dual element, current limiting
- Class: RK1
- Connection: Blade end x blade end
- Fuse Indicator: Non-indicating
- Compliance: RoHS Compliant, CE Marked
- Physical Dimensions: 7.88 in length, 1.11 in width and height
- Weight: 4 lb
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LPS-RK-70SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 70
- AIC rating : 300kA@600V
- Diameter : 1.11
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712548427
- GTIN : 00051712548427
- Country of Origin : Mexico
- Dimensions : 7.88 in x 1.11 in x 1.11 in (Length/Depth x Height x Width)
- Weight : 4
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
