LPS-RK-6SP - Bussmann Eaton 6A 600V AC 1-Pole Time-Delay Dual Element Fuse Class RK1

LPS-RK-6SP

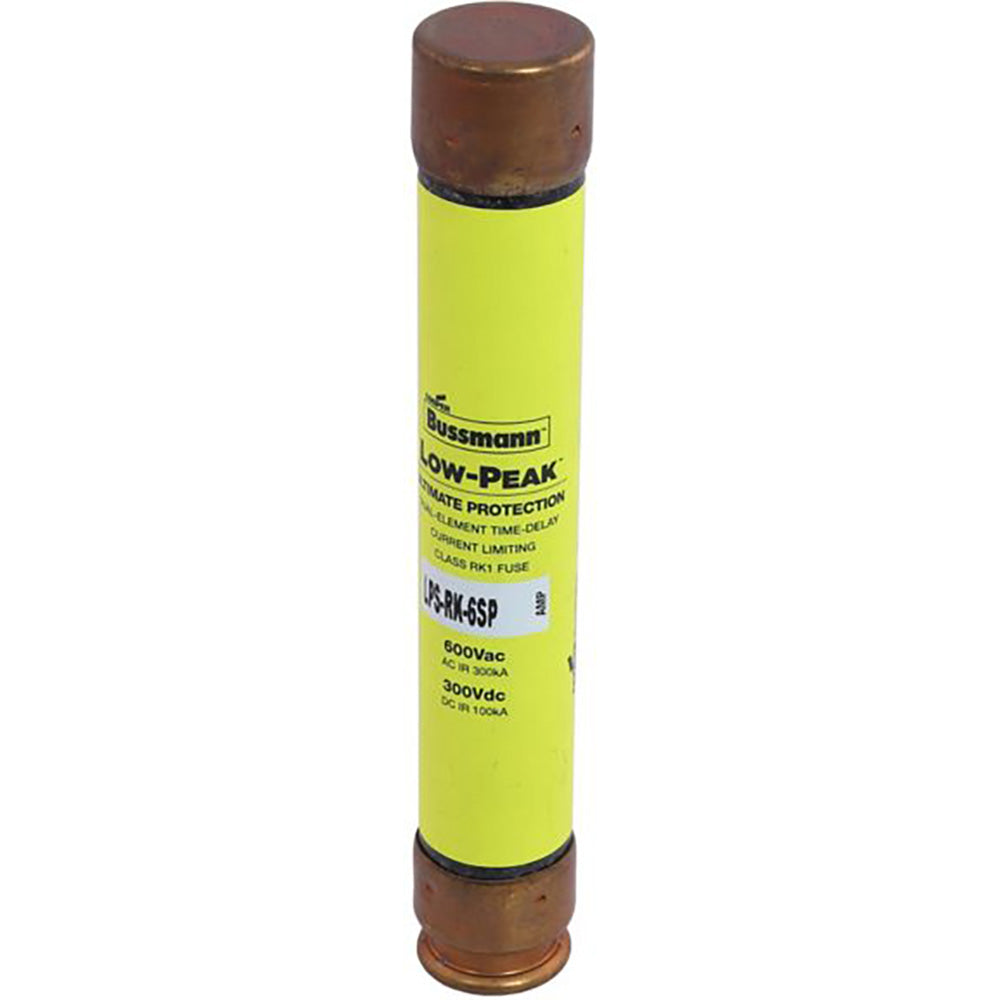

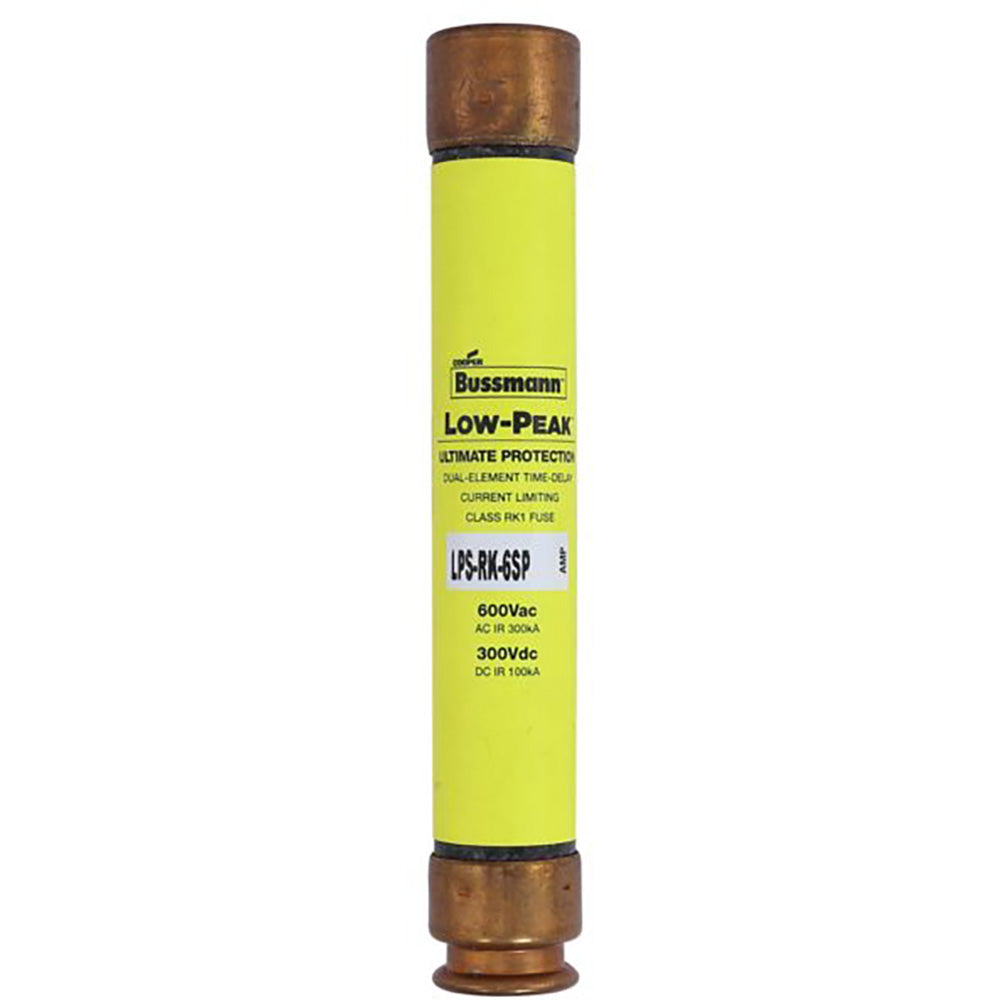

LPS-RK-6SP is a Bussmann Eaton Class RK1 time-delay dual element fuse rated for 6 amperes and 600 volts AC.

This fuse features a 1-pole cylindrical body design with ferrule end connections, providing current-limiting protection with a 300 kA interrupt rating at 600 VAC and 100 kA at 300 VDC. It has a response time of approximately 10 seconds at 500% overload and is CE marked for compliance. The fuse measures 0.81 inches in diameter by 5 inches in length and is non-indicating with electrically isolated end caps.

• Amperage: 6 A
• Voltage Rating: 600 VAC / 300 VDC
• Poles: 1
• Fuse Type: Time-delay, dual element, current limiting
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Class: RK1
• Connection: Ferrule end x ferrule end
• Response Time: 10 seconds at 500% overload
• Dimensions: 0.81 in diameter x 5 in length
• Certifications: CE Marked
• Fuse Indicator: Non-indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-6SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 6
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548250
• GTIN : 00051712548250
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
