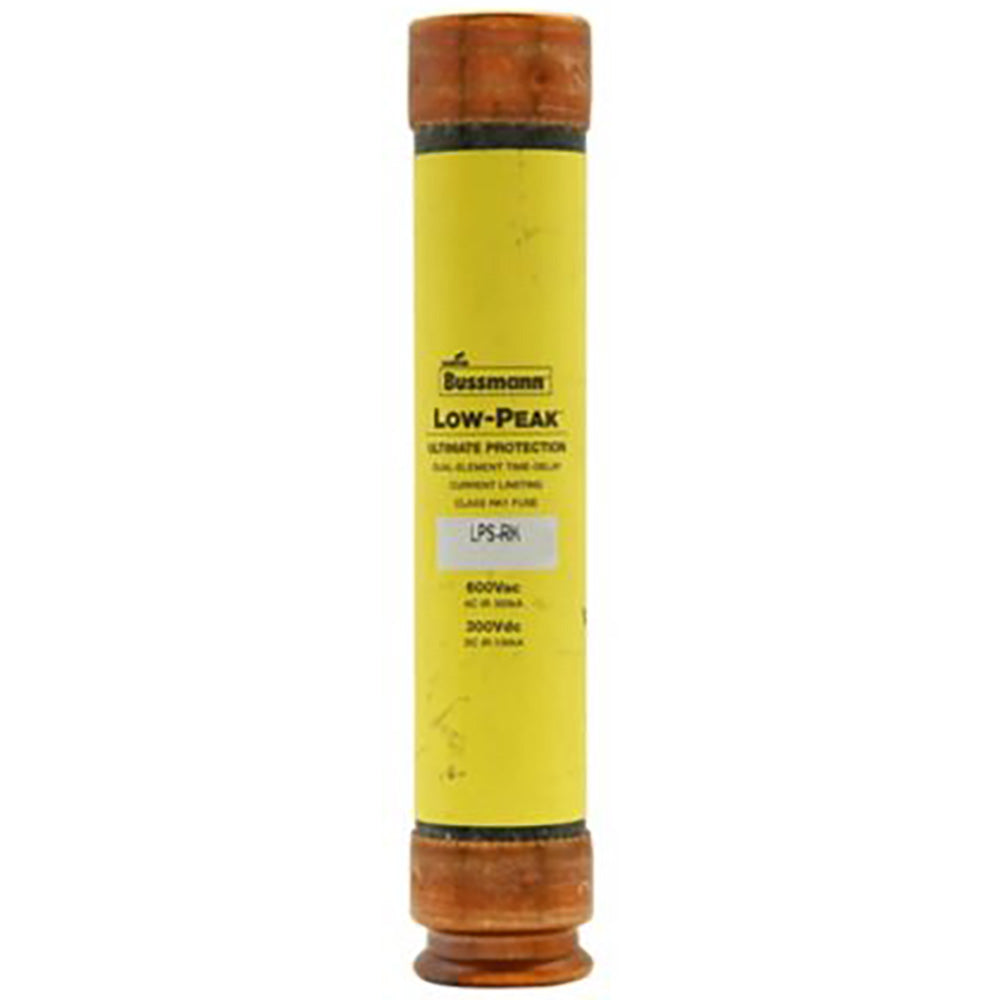

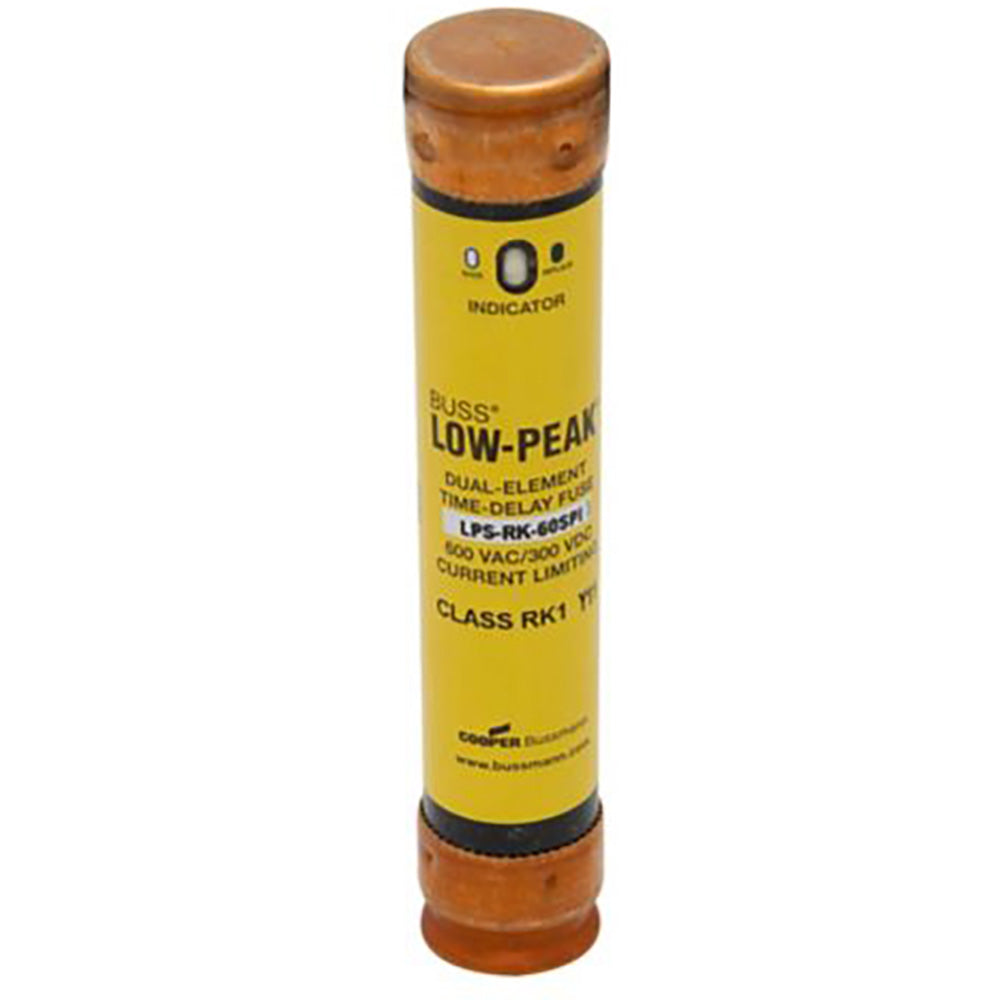

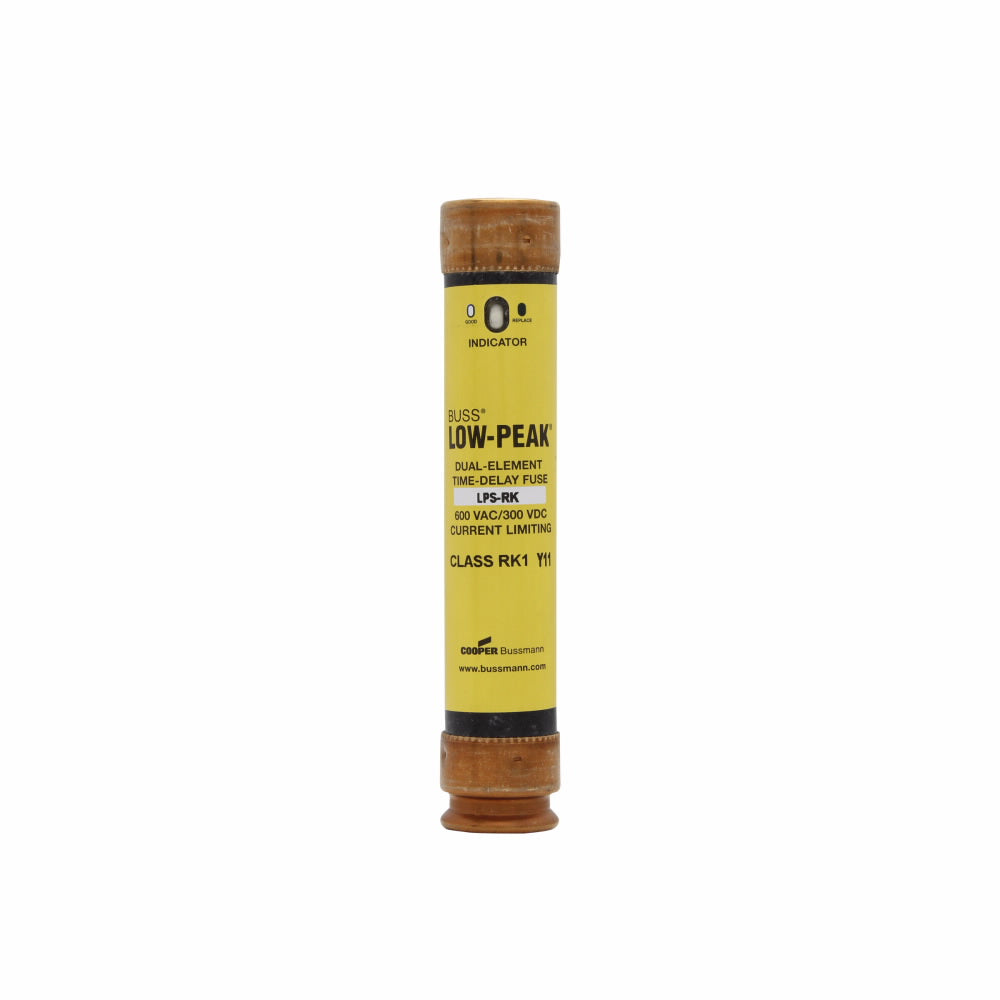

LPS-RK-60SPI - Eaton 60A Class RK1 Dual-Element Time-Delay Indicating Fuse 600VAC 300VDC 300kA

LPS-RK-60SPI

LPS-RK-60SPI is a 60A Class RK1 dual-element, time-delay, indicating fuse designed for reliable circuit protection in a variety of industrial and commercial applications. This Eaton Bussmann Series fuse provides current-limiting performance and is suitable for use in feeder and branch circuits, motor protection, transformers, and general-purpose circuits. The LPS-RK-60SPI fuse features a dual-element, time-delay design that allows for 130% FLA sizing for motor back-up protection and offers current-limiting action to protect downstream components from the damaging effects of short-circuit currents. The indicating feature provides visual confirmation of fuse operation, making troubleshooting and maintenance easier. This fuse is rated for 600VAC and 300VDC, with a 300kA interrupting rating at 600VAC and 100kA at 300VDC, and is UL Listed and CSA Certified for safety and compliance.

• 60A Amperage
• 600VAC Voltage Rating
• 300VDC Voltage Rating
• Class RK1 Series
• Dual-Element, Time-Delay Type
• Indicating Fuse
• Cartridge Mounting
• 300kA Interrupting Rating (AC)
• 100kA Interrupting Rating (DC)
• UL Listed
• CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-60SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 60
• AIC rating : 300kA@600V
• Diameter : 1.06
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712626309
• GTIN : 00051712626309
• Country of Origin : Mexico
• Dimensions : 5.5 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
• Weight : 2.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
