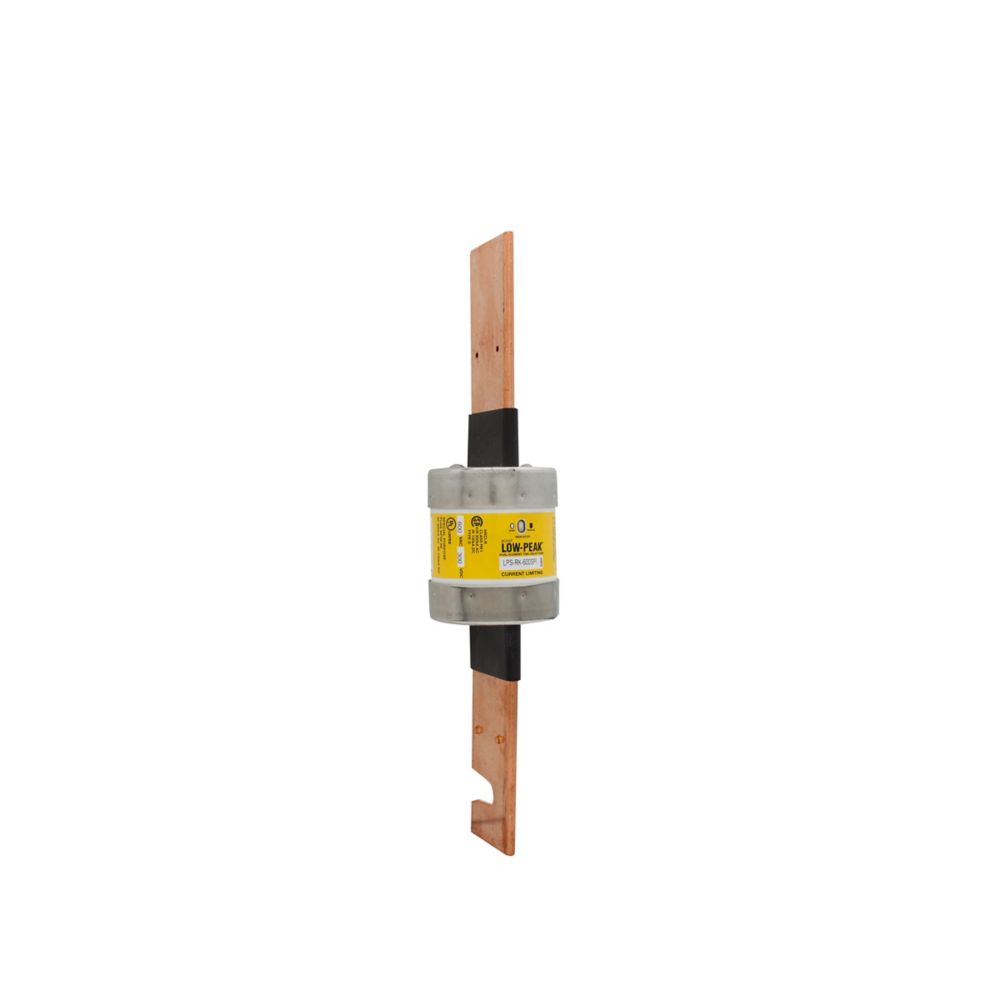

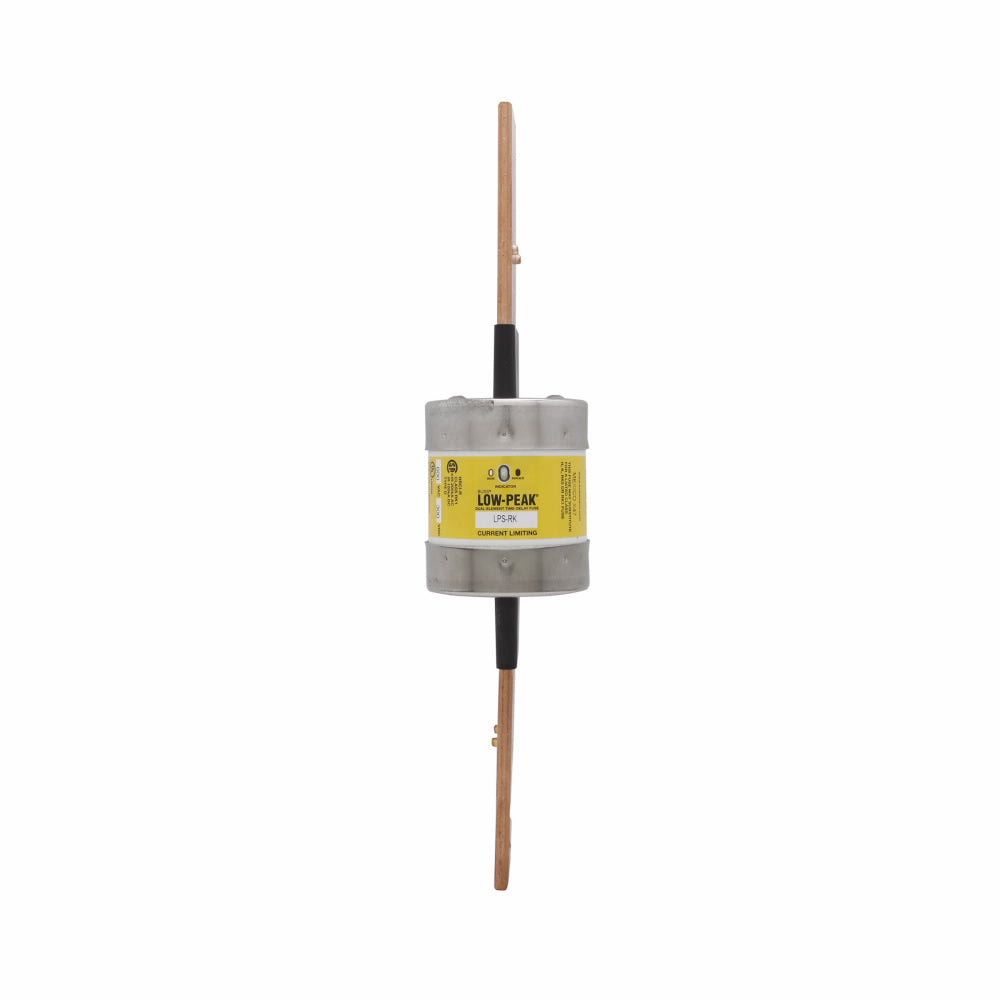

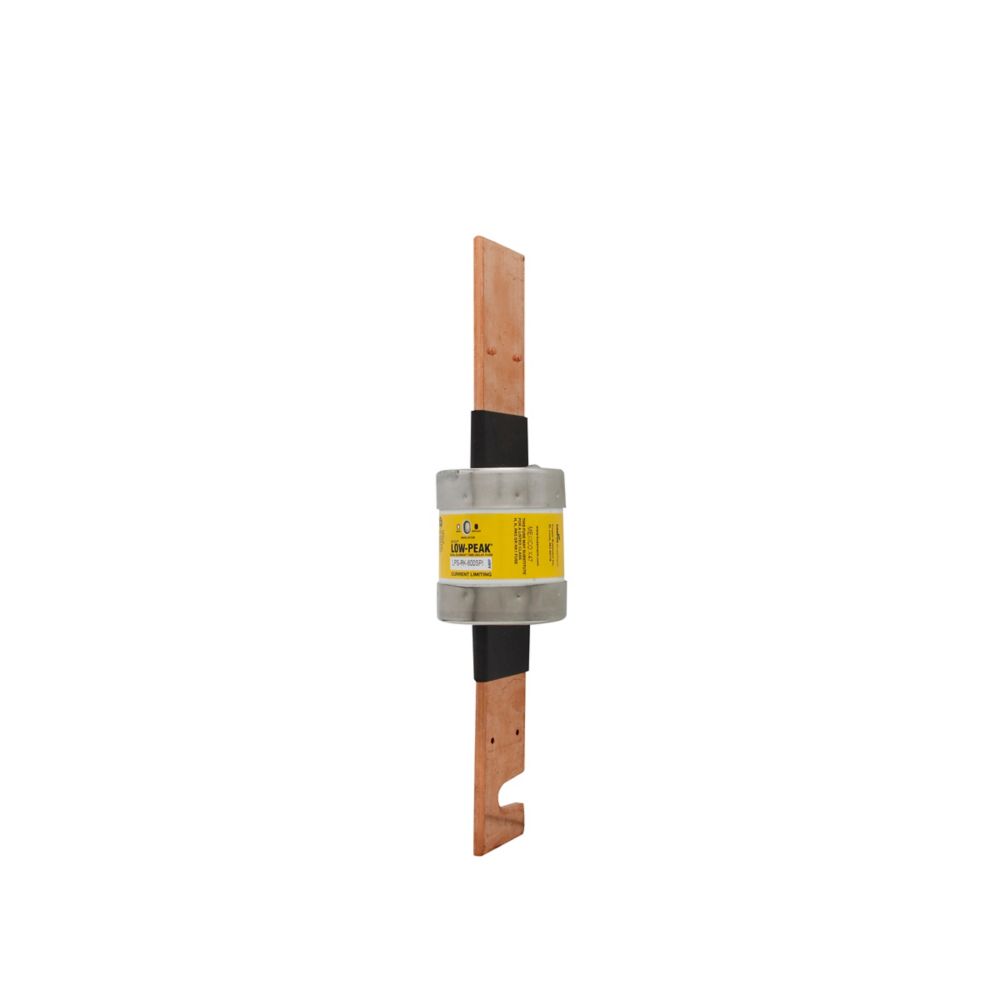

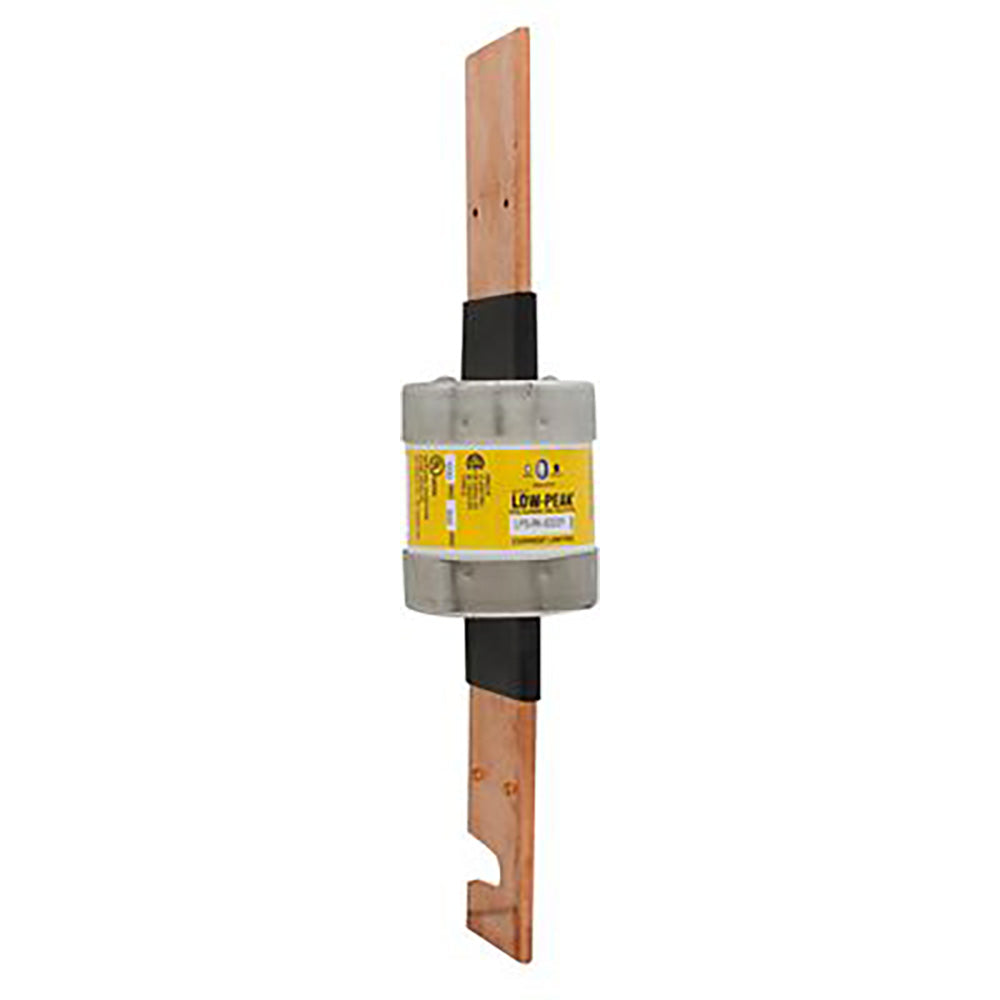

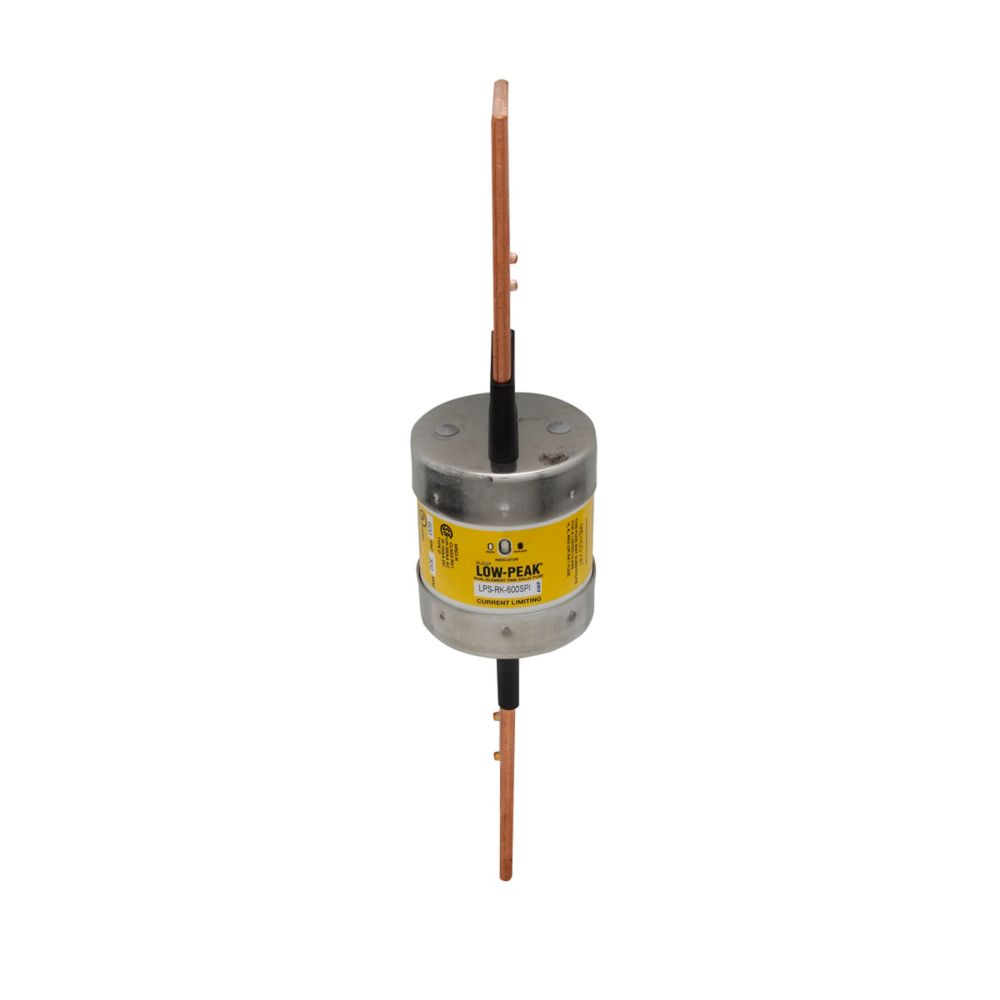

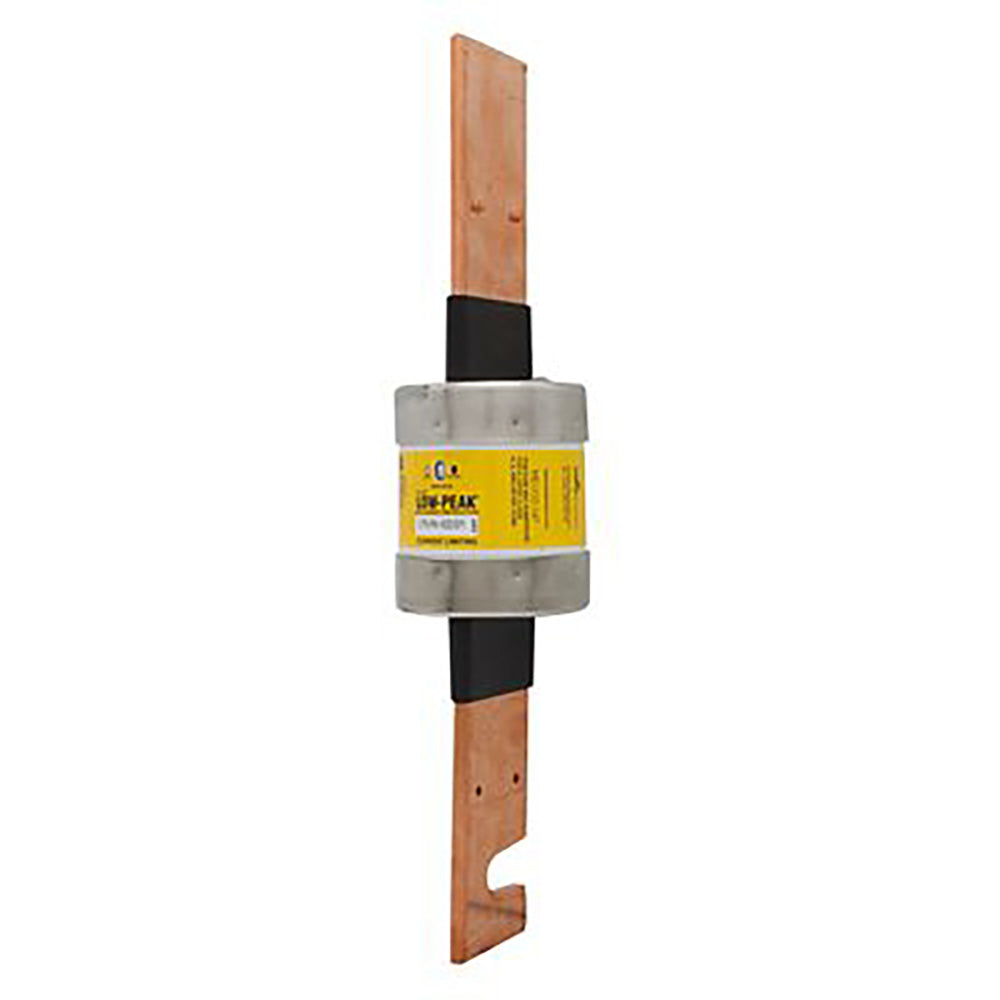

LPS-RK-600SPI - Bussmann, Cooper Bussmann, Eaton 600 Amp 600V AC 300V DC Class RK1 Dual Element Indicating Time-Delay Low-Peak Fuse, Blade End, Current-Limiting, 300kA Interrupt Rating, cULus Listed

LPS-RK-600SPI

LPS-RK-600SPI is a Class RK1, dual element, time-delay, indicating, low-peak fuse from Bussmann, Cooper Bussmann, and Eaton, designed for ultimate circuit protection in demanding electrical applications.

This current-limiting fuse features a dual-element design for both fast short-circuit and time-delay overload protection, with a visible indicator for easy status checks. It is engineered to reduce fuse inventory by covering a wide range of applications and is suitable for use in industrial and commercial power distribution systems.

Key Specifications
• Amperage: 600 A
• Voltage: 600 V AC, 300 V DC (indicating version not DC rated)
• Poles: 1
• Mounting Type: Blade end x blade end, rejection style
• Interrupt Rating: 300 kA at 600 V AC, 100 kA at 300 V DC
• Series/Frame: LPS-RK
• Trip Unit: Dual element, time-delay (minimum 10 seconds at 500% of rating)
• Certifications: cULus Listed (file No. JDDZ.E4273), UL 248-12 Class RK1, CSA C22.2 No. 248.12, CE
• Response Time: 10 seconds at 500% of rating
• Physical Size: 13-3/8" L x 2-7/8" dia
• Indicator: Yes (open fuse indication)
• Current Limiting: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-600SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 600
• AIC rating : 300kA@600V
• Diameter : 2.88
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712627474
• GTIN : 00051712627474
• Dimensions : 13.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
• Weight : 5.6
• Certification : UL, CSA, CE
