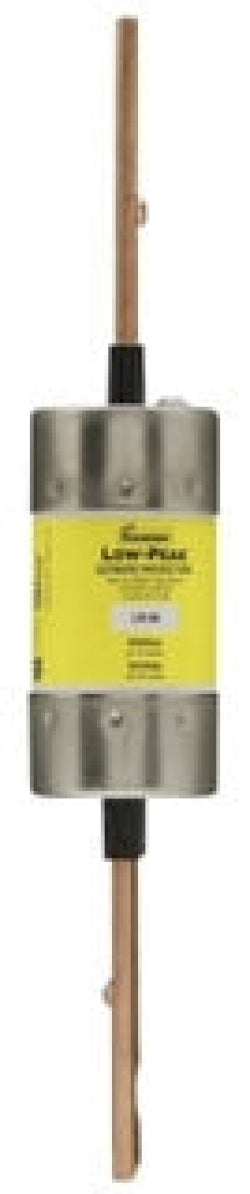

LPS-RK-600SP - Eaton Bussmann 600A 600V Class RK1 Dual Element Time Delay Fuse

LPS-RK-600SP

LPS-RK-600SP is a 600 Amp, 600 Volt AC, Class RK1 dual-element time-delay fuse from Eaton Bussmann series designed for reliable circuit protection.This fuse features a current-limiting design with a 300 kA interrupt rating at 600 Vac and 100 kA at 300 Vdc. It has a blade end x blade end connection, is non-indicating, and includes an electrically isolated end cap. The fuse is UL listed, CSA certified, and CE marked, suitable for high inrush motor protection and short circuit current limiting.

Key Specifications
• Amperage: 600 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupt Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Class: RK1
• Fuse Type: Dual Element, Time Delay, Current Limiting
• Connection: Blade end x blade end
• Fuse Indicator: Non-indicating
• Mounting Type: Blade
• Dimensions: 13.38 in length, 2.88 in width, 2.88 in height
• Weight: 5.6 lb
• Certifications: UL Listed, CSA Certified, CE Marked
• Special Features: Electrically isolated end cap

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-600SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 600
• AIC rating : 300kA@600V
• Diameter : 2.88
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548588
• GTIN : 00051712548588
• Country of Origin : Mexico
• Dimensions : 13.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
• Weight : 5.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
