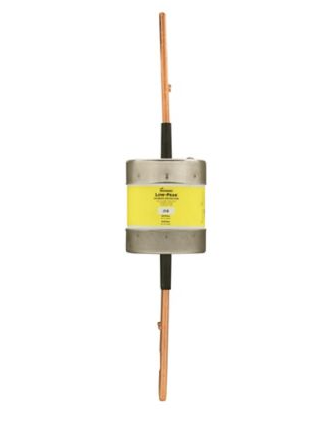

LPS-RK-600 - Eaton Bussmann 600A 600V Dual Element Time-Delay Class RK1 Fuse

LPS-RK-600

LPS-RK-600 is a 600 amp, 600 volt AC dual element time-delay fuse from Eaton Bussmann designed for Class RK1 applications.This fuse features a current limiting design with a time-delay characteristic, providing high inrush current motor protection and maximum short circuit protection. It is rated for 600 VAC and 300 VDC with an interrupting rating of 300,000 AIC RMS at 600 VAC and 100,000 AIC at 300 VDC. The fuse is non-indicating, blade end x blade end type, and UL Listed Special Purpose (Guide JFHR, File E56412) and CSA Certified (Class 1422-02, File 53787). It measures approximately 2.88 inches by 13.38 inches.

Key Specifications
• Amperage: 600 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Type: Dual Element, Time Delay
• Class: RK1
• Interrupting Rating: 300,000 AIC at 600 VAC, 100,000 AIC at 300 VDC
• Mounting Type: Blade end x blade end
• Physical Size: 2.88" x 13.38"
• Current Limiting: Yes
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, Class 1422-02, File 53787

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-600
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 600
• AIC rating : 300kA@600V
• Diameter : 2.88
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548588
• GTIN : 051712548588
• Weight : 5
