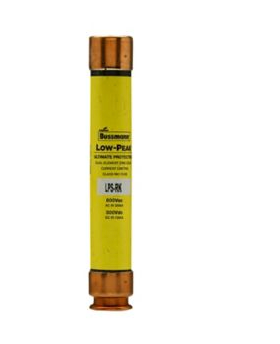

LPS-RK-6-1/4SP - Eaton 6.25A 600Vac/300Vdc Class RK1 Time-Delay Dual-Element Fuse

LPS-RK-6-1/4SP

LPS-RK-6-1/4SP is an Eaton Bussmann series Class RK1 fuse designed for time-delay and current-limiting applications with a 6.25 amp rating.This dual-element, non-indicating fuse features a ferrule end-to-end connection and is rated for 600 Vac and 300 Vdc operation. It has a high interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc, providing reliable protection in electrical circuits. The fuse is CE marked and designed for cartridge mounting.

• Amperage: 6.25 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupting Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Fuse Type: Time-delay, current-limiting
• Number of Elements: Dual
• Connection: Ferrule end x ferrule end
• Class: RK1
• Fuse Indicator: Non-indicating
• Mounting Type: Cartridge fuse holder
• Certifications: CE Marked
• Response Time: 10 seconds at 500% overload
• Weight: 1.6 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-6-1/4SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 6
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712548267
• GTIN : 00051712548267
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
