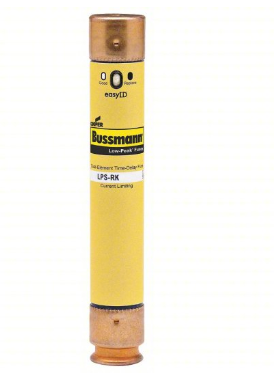

LPS-RK-6-1/4 - Eaton 6.25A 600VAC/300VDC Class RK1 Time-Delay Low-Peak Fuse

LPS-RK-6-1/4

LPS-RK-6-1/4 is a 6.25 ampere, Class RK1 time-delay Low-Peak fuse from Eaton designed for branch circuit protection.This fuse features a dual-element, current-limiting design providing excellent time-delay characteristics to withstand high inrush currents. It is rated for 600 VAC and 300 VDC operation with an interrupting rating of 100 kA at 300 VDC and 300 kA RMS symmetrical at 600 VAC. The fuse has a cylindrical body style with a rejection feature to prevent installation of lower-rated fuses, ensuring proper circuit protection.

• Amperage: 6.25 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: RK1
• Time-Delay, Dual-Element
• Low-Peak Series
• Interrupting Rating: 300 kA RMS Sym. at 600 VAC, 100 kA at 300 VDC
• Body Style: Cylindrical
• Rejection Type Fuse
• Indicating Type (SPI version)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-6-1/4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 6
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• Weight : 12
