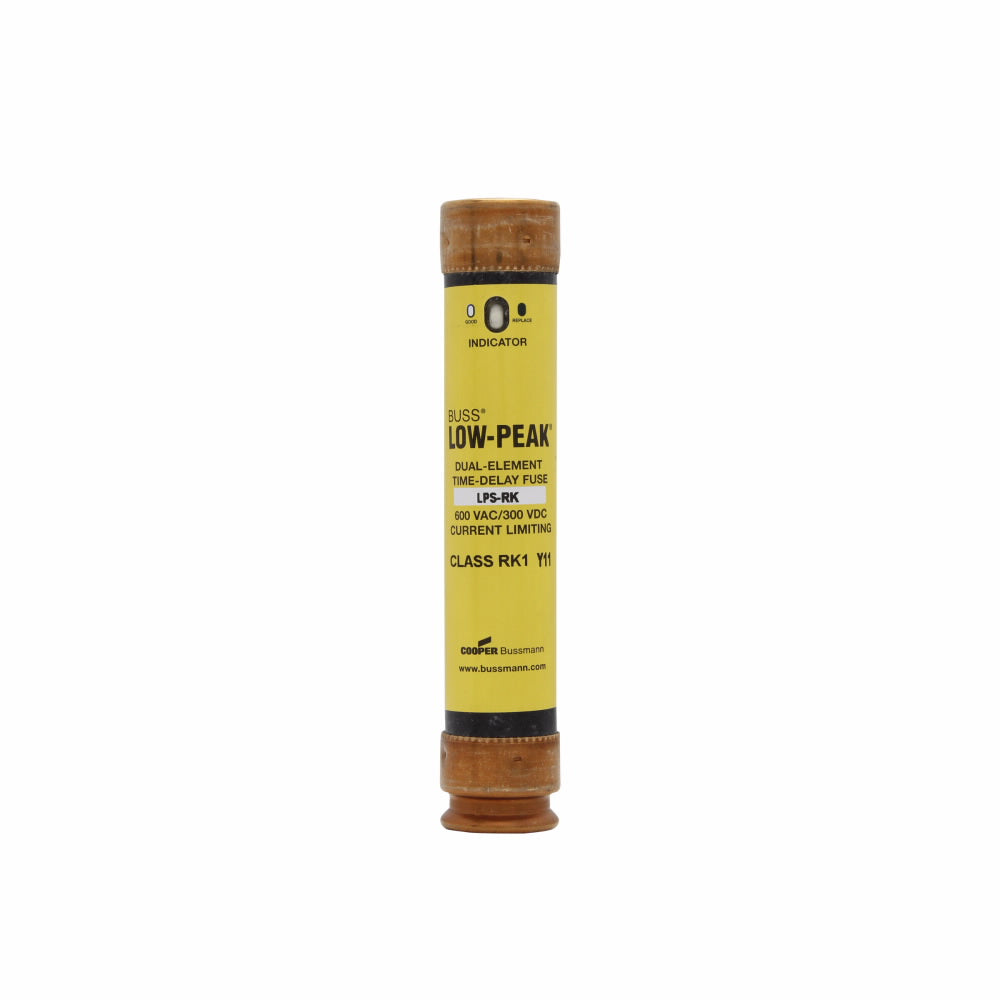

LPS-RK-50SPI - Eaton 50A 600VAC Class RK1 Time Delay Dual Element Fuse with Indicator

LPS-RK-50SPI

LPS-RK-50SPI is an Eaton Bussmann series Class RK1 fuse designed for reliable circuit protection with a 50 amp rating and 600 VAC voltage capacity.This time-delay, dual-element fuse features current limiting technology and an indicating window for fuse status. It has an interrupt rating of 300 kA at 600 VAC and 100 kA at 300 VDC, suitable for high short circuit protection and motor inrush currents. The fuse is cartridge mounted, UL listed, CSA certified, and CE marked.

• Amperage: 50 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: RK1
• Fuse Type: Time Delay, Dual Element, Current Limiting
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Mounting Type: Cartridge
• Fuse Indicator: Indicating Window
• Dimensions: 5.5 in length, 1.06 in diameter
• Certifications: UL Listed, CSA Certified, CE Marked
• Connection: Ferrule end x ferrule end
• Response Time: 10 seconds at 500% overload

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-50SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 50
• AIC rating : 300kA@600V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1

Product Data

• UPC : 05171262629
• GTIN : 00051712626293
• Country of Origin : Mexico
• Dimensions : 5.5 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
• Weight : 2.6
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
