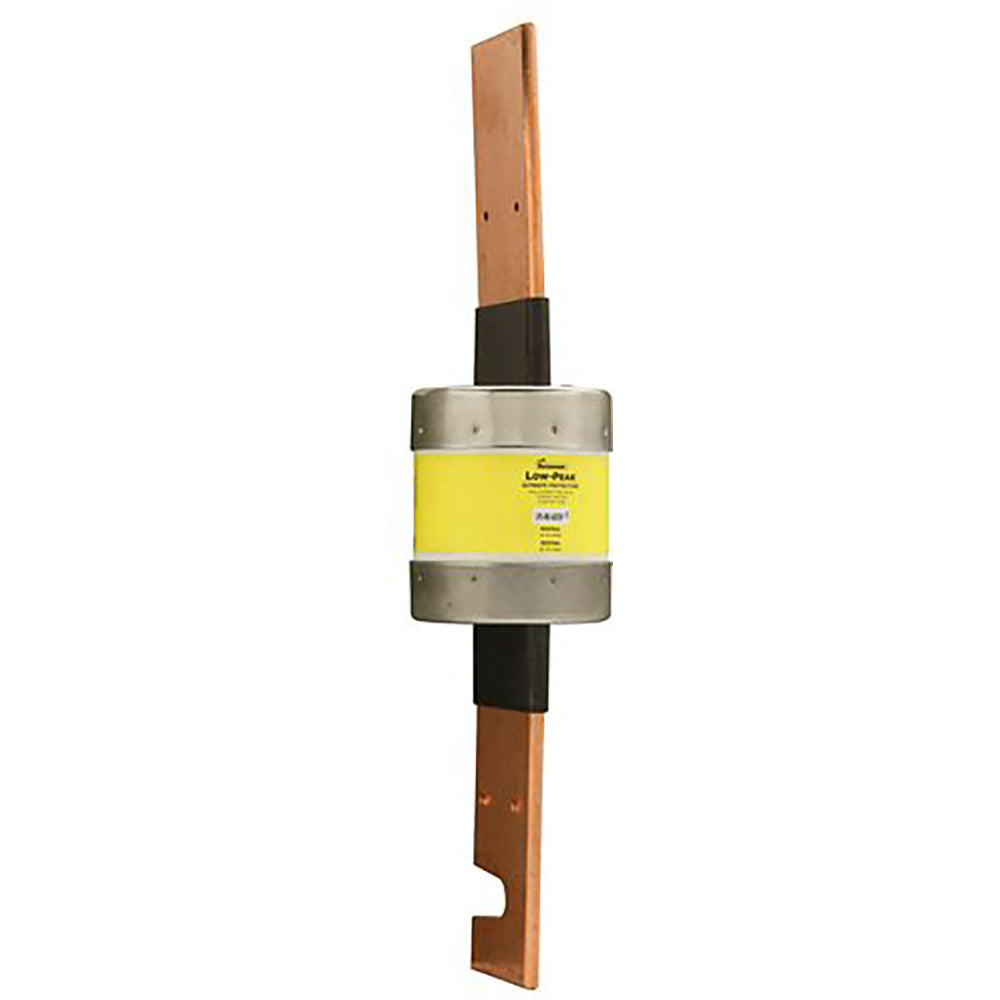

Cooper Bussmann LPS-RK-500SP Low Voltage Low-Peak 600V 500A Fuse - Essential Electric Supply

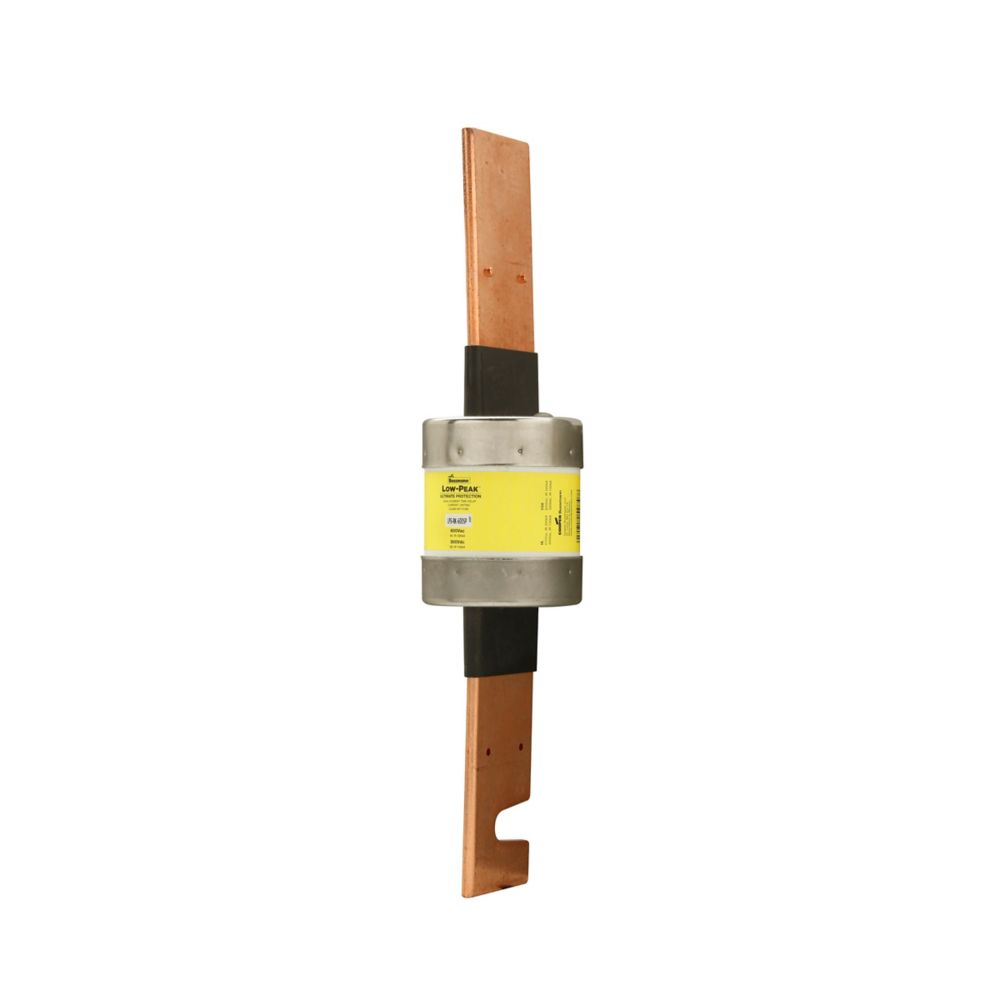

LPS-RK-500SP Bussmannn Low-Peak Low Voltage Fuse 600V 500A Fuse - Essential Electric Supply

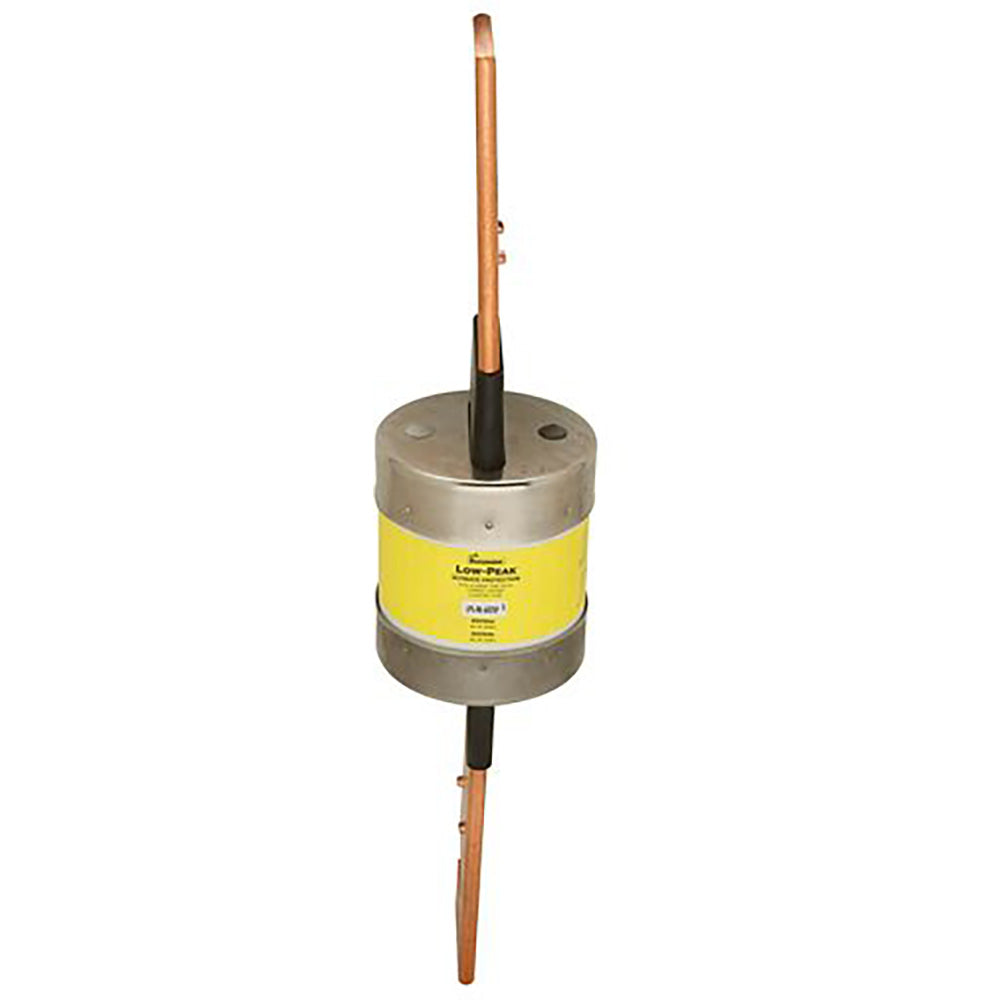

LPS-RK-500SP Bussmannn Low-Peak Low Voltage Fuse 600V 500A Fuse - Essential Electric Supply

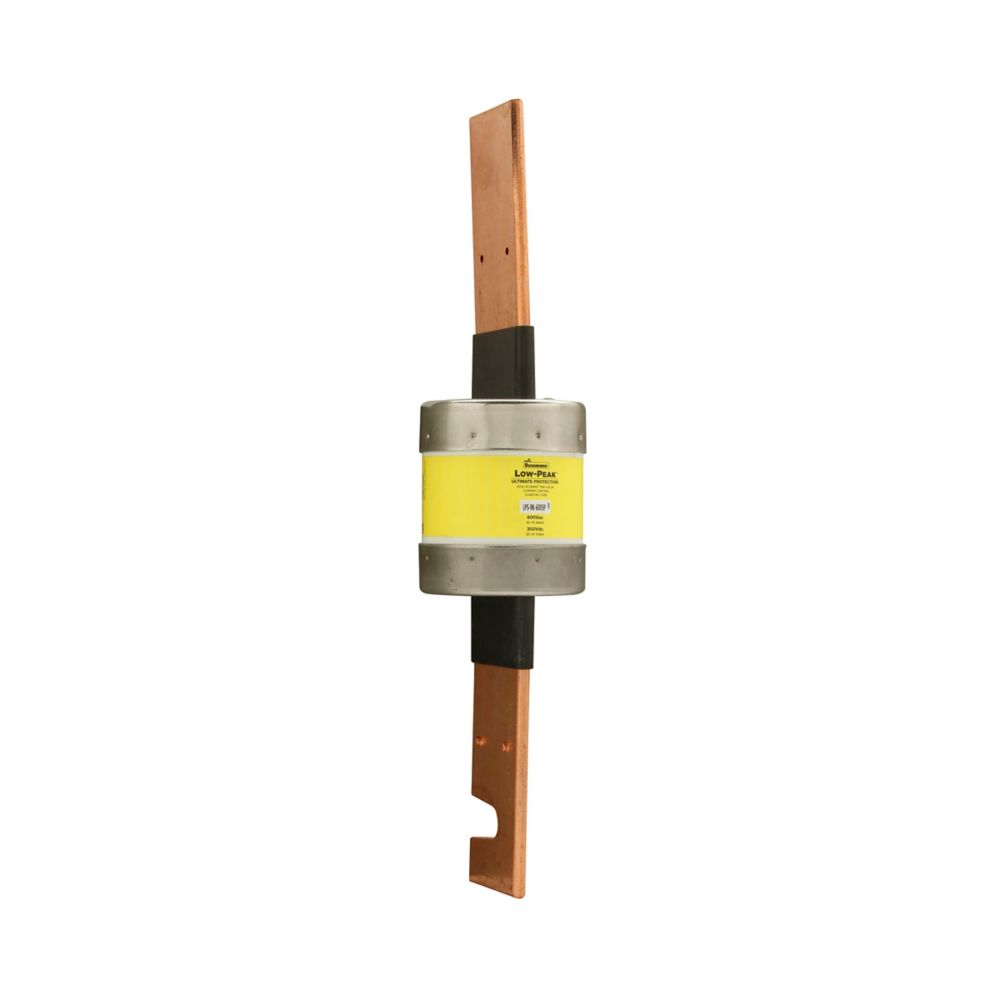

LPS-RK-500SP - Eaton Bussmann Series LPS-RK 500A 600VAC/300VDC Class RK1 Low-Peak Time Delay Dual Element Current Limiting Fuse, Non-Indicating, Blade End - Essential Electric Supply

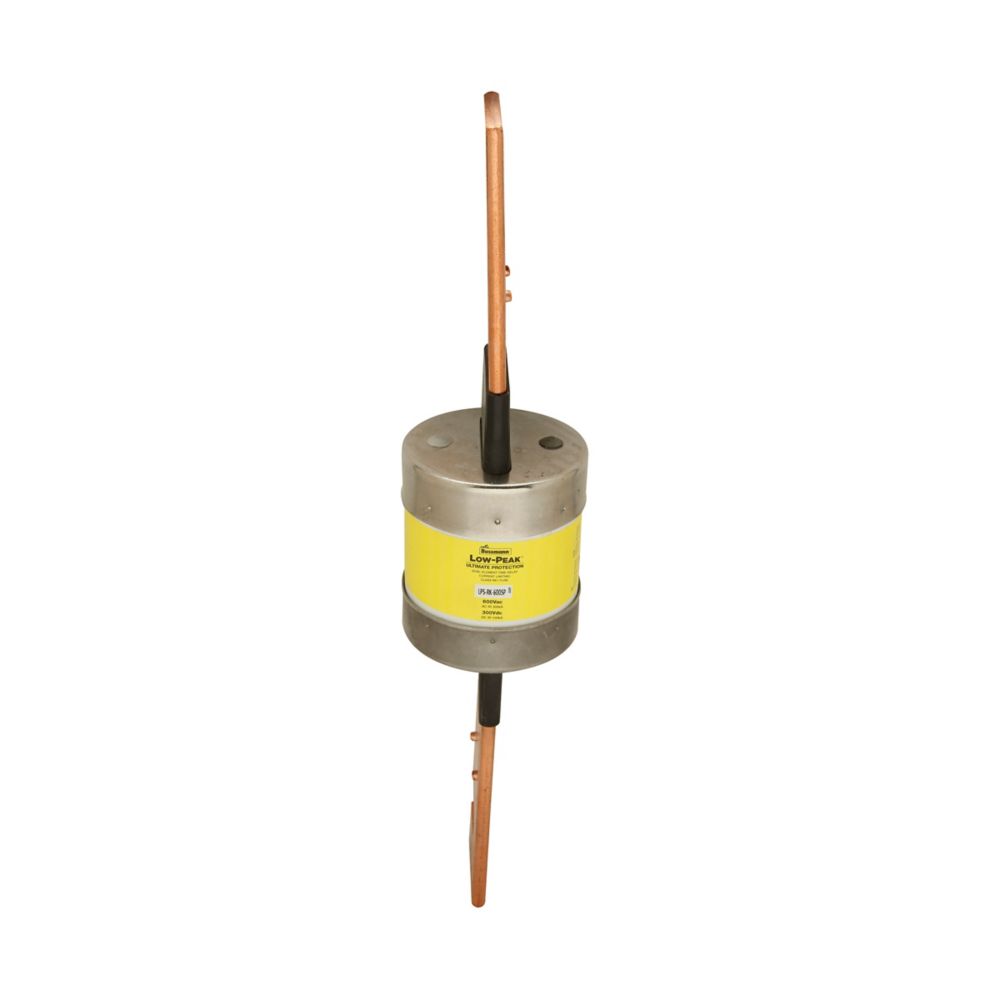

LPS-RK-500SP - Eaton Bussmann Series LPS-RK 500A 600VAC/300VDC Class RK1 Low-Peak Time Delay Dual Element Current Limiting Fuse, Non-Indicating, Blade End - Essential Electric Supply

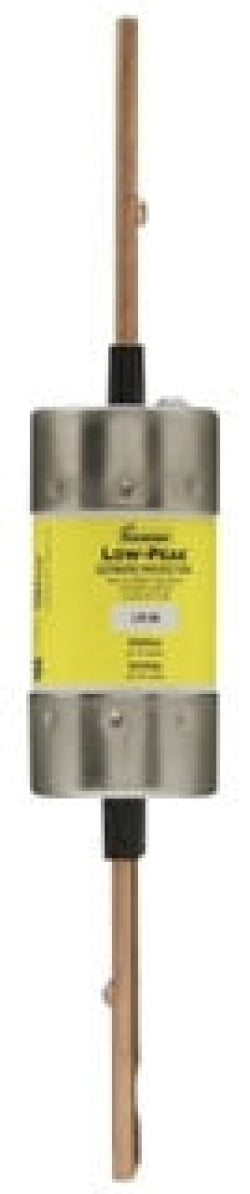

LPS-RK-500SP - Eaton Bussmann Series LPS-RK 500A 600VAC/300VDC Class RK1 Low-Peak Time Delay Dual Element Current Limiting Fuse, Non-Indicating, Blade End - Essential Electric Supply

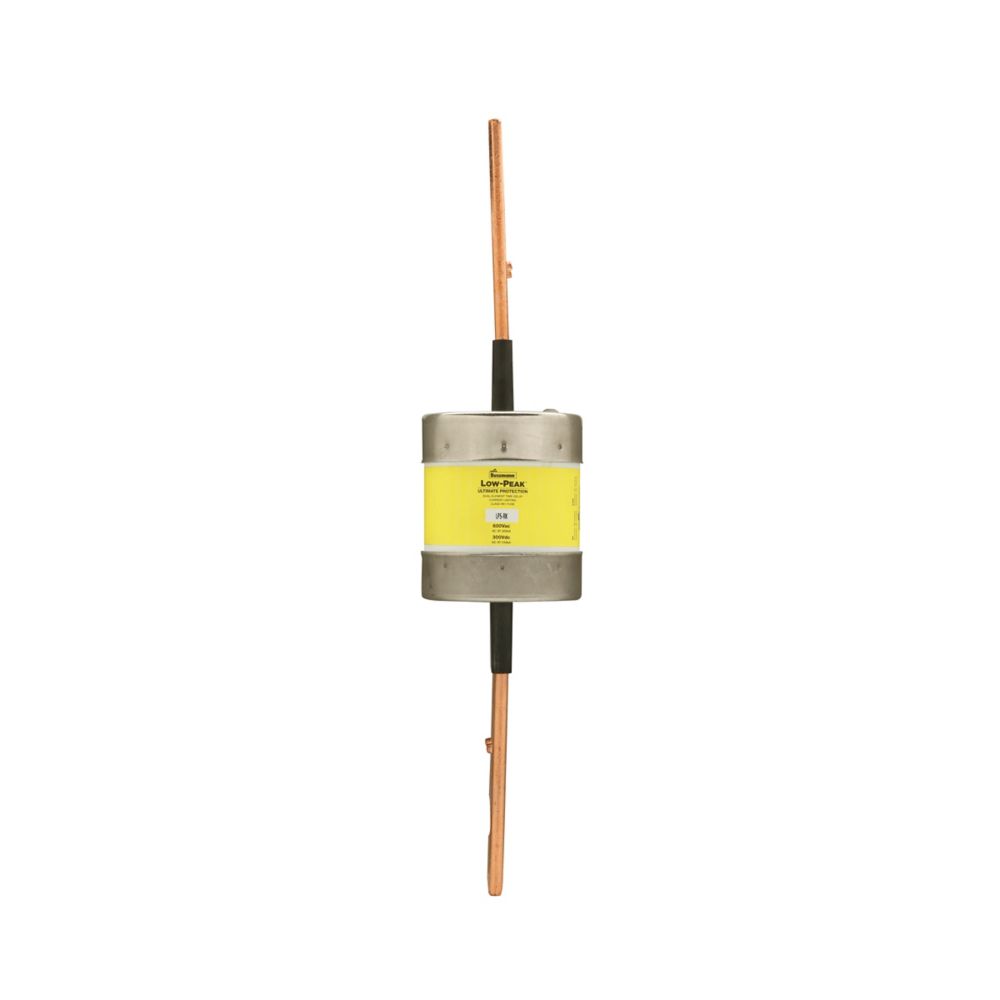

LPS-RK-500SP - Eaton Bussmann Series LPS-RK 500A 600VAC/300VDC Class RK1 Low-Peak Time Delay Dual Element Current Limiting Fuse, Non-Indicating, Blade End - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
Cooper Bussmann LPS-RK-500SP Low Voltage Low-Peak 600V 500A Fuse - Essential Electric Supply
LPS-RK-500SP Bussmannn Low-Peak Low Voltage Fuse 600V 500A Fuse - Essential Electric Supply
LPS-RK-500SP Bussmannn Low-Peak Low Voltage Fuse 600V 500A Fuse - Essential Electric Supply
LPS-RK-500SP - Eaton Bussmann Series LPS-RK 500A 600VAC/300VDC Class RK1 Low-Peak Time Delay Dual Element Current Limiting Fuse, Non-Indicating, Blade End - Essential Electric Supply
LPS-RK-500SP - Eaton Bussmann Series LPS-RK 500A 600VAC/300VDC Class RK1 Low-Peak Time Delay Dual Element Current Limiting Fuse, Non-Indicating, Blade End - Essential Electric Supply
LPS-RK-500SP - Eaton Bussmann Series LPS-RK 500A 600VAC/300VDC Class RK1 Low-Peak Time Delay Dual Element Current Limiting Fuse, Non-Indicating, Blade End - Essential Electric Supply
LPS-RK-500SP - Eaton Bussmann Series LPS-RK 500A 600VAC/300VDC Class RK1 Low-Peak Time Delay Dual Element Current Limiting Fuse, Non-Indicating, Blade End - Essential Electric Supply

Description

LPS-RK-500SP


LPS-RK-500SP is a 500A, 600VAC/300VDC, Class RK1, Low-Peak, time-delay, dual-element, current-limiting fuse from Eaton Bussmann Series, designed for ultimate circuit protection.

This non-indicating, blade-end fuse features a time-delay characteristic for high inrush current motor protection and fast short-circuit interruption. It is current-limiting for maximum protection and has an electrically isolated end cap. The LPS-RK-500SP is suitable for applications requiring reliable, high-interrupting capacity fuses in industrial and commercial power distribution systems.

    Key Specifications
  • Amperage: 500A
  • Voltage: 600VAC, 300VDC
  • Poles: 1
  • Mounting Type: Blade end x blade end
  • Interrupt Rating: 300 kAIC at 600VAC, 100 kAIC at 300VDC
  • Series/Frame: LPS-RK
  • Trip Unit: Dual element, time delay (minimum 10 seconds)
  • Certifications: UL Listed (Class RK1, File E56412), CSA Certified (Class 1422-02, File 53787), CE Marked
  • Fuse Type: Current-limiting, time-delay
  • Indicator: Non-indicating
  • Packaging: Standard
  • Special Feature: Electrically isolated end cap

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: LPS-RK-500SP
  • Manufacturer : Eaton
  • Brand : Bussmann
  • Category : Fuse
  • Item Subcategory : Low Voltage Fuse
  • Family : Low-Peak
  • Type : LPS-RK
  • Voltage : 600
  • Amperage : 500
  • AIC rating : 300kA@600V
  • Diameter : 2.88
  • Class Rating : RK1
  • Barrels : 1

Product Data

  • UPC : 051712548571
  • GTIN : 00051712548571
  • Country of Origin : Mexico
  • Dimensions : 13.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
  • Weight : 5.6
  • Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
