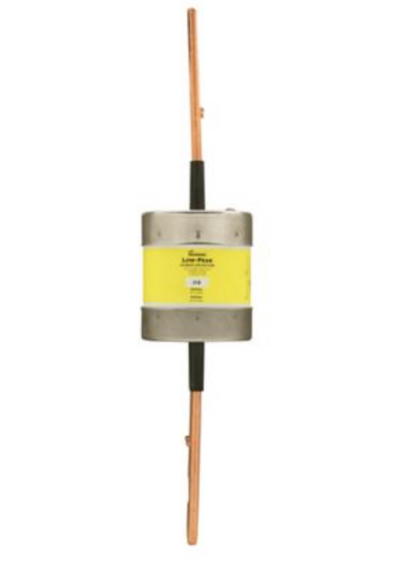

LPS-RK-500SP - Eaton Bussmann 500A 600V Class RK1 Dual-Element Time-Delay Fuse Non-Indicating Blade End

LPS-RK-500

LPS-RK-500SP is a 500A, 600V Class RK1 dual-element, time-delay, current-limiting fuse designed for reliable circuit protection in industrial and commercial applications. This Eaton Bussmann series fuse features a blade end x blade end connection and is non-indicating with an electrically isolated end cap for added safety. The LPS-RK-500SP provides fast short-circuit protection and dual-element, time-delay performance for ultimate protection against overloads and high inrush currents. It is rated for 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, making it suitable for demanding environments. The fuse is CE marked and UL listed for Class RK1, ensuring compliance with industry standards.

• Part Number: LPS-RK-500SP
• Manufacturer: Eaton Bussmann
• Amperage Rating: 500 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
• Class: RK1
• Fuse Type: Dual-element, time-delay, current-limiting
• Connection: Blade end x blade end
• Indicator: Non-indicating
• Special Features: Electrically isolated end cap
• Compliance: CE Marked, UL Listed, CSA Certified
• Physical Size: 13.38" x 2.88" x 2.88"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-500
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 500
• AIC rating : 300kA@600V
• Diameter : 2.88
• Class Rating : RK1
• Barrels : 1

Product Data

• GTIN : 051712548571
• Weight : 4
