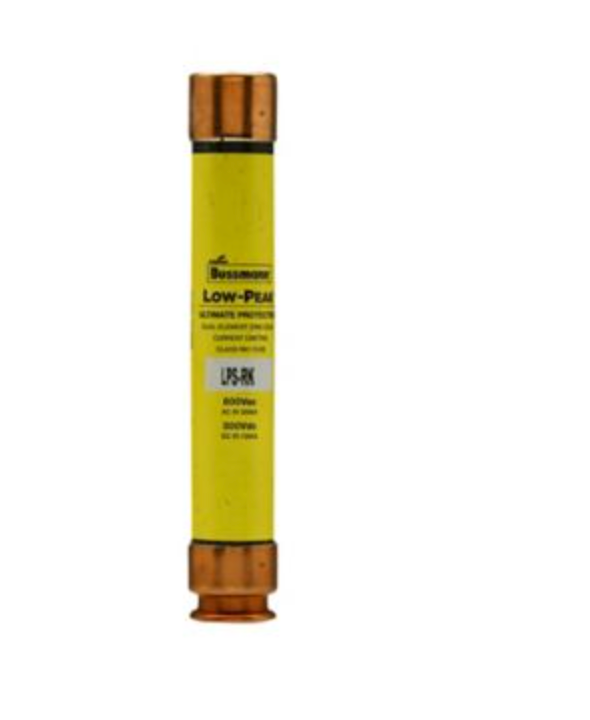

LPS-RK-5SP - Eaton 5A 600Vac/300Vdc Class RK1 Time-Delay Dual-Element Fuse

LPS-RK-5

LPS-RK-5SP is a 5 ampere, Class RK1 time-delay dual-element fuse from Eaton designed for reliable circuit protection.This Eaton Bussmann series fuse features a 600 Vac and 300 Vdc voltage rating with a high interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc. It is a non-indicating fuse with ferrule end connections, providing time-delay current-limiting protection with a response time of approximately 10 seconds at 500% overload. The fuse is electrically isolated at the end caps and complies with CE standards.

Key Specifications
• Amperage Rating: 5 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupting Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Fuse Class: RK1
• Fuse Type: Time-delay, dual-element, current-limiting
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Response Time: 10 seconds at 500% overload
• Physical Size: 0.81 inch diameter x 5 inch length
• Certifications: CE Marked
• Special Features: Electrically isolated end caps

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPS-RK-5
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Low-Peak
• Type : LPS-RK
• Voltage : 600
• Amperage : 5
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• Weight : 5.19
