Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
LPS-RK-450

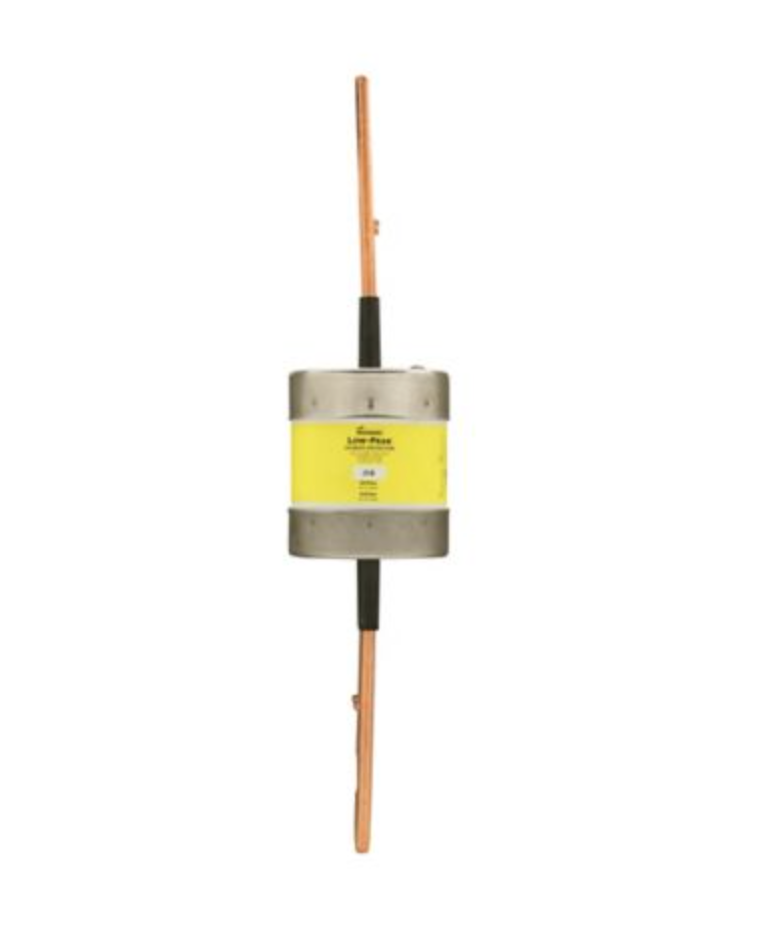

LPS-RK-450 is a Class RK1, dual-element, time-delay, current-limiting fuse designed for high inrush motor protection and reliable circuit interruption in industrial power distribution systems. This Eaton Bussmann series fuse provides robust protection with a 450A amperage rating, 600VAC/300VDC voltage rating, and an interrupting rating of 300kA at 600VAC and 100kA at 300VDC. It features blade end connections, electrically isolated end caps, and is non-indicating. The fuse is UL Listed, CSA Certified, and CE Marked for compliance with major safety standards.
- Part Number: LPS-RK-450
- Manufacturer: Eaton
- Amperage Rating: 450 A
- Voltage Rating: 600 VAC, 300 VDC
- Interrupt Rating: 300 kAIC at 600 VAC, 100 kAIC at 300 VDC
- Fuse Class: Class RK1
- Fuse Type: Dual Element, Time-Delay, Current-Limiting
- Indicator: Non-Indicating
- Connection Type: Blade End x Blade End
- Certifications: UL Listed, CSA Certified, CE Marked
- Special Features: Electrically Isolated End Cap
- Mounting Type: Standard Fuse Block
Specifications
- Part Number: LPS-RK-450
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Low-Peak
- Type : LPS-RK
- Voltage : 600
- Amperage : 450
- AIC rating : 300kA@600V
- Diameter : 2.88
- Class Rating : RK1
- Barrels : 1
Product Data
- GTIN : 051712548564
- Weight : 6
